4 Zone Fire Alarm Kit with Sounders, Call Points & Head Tool

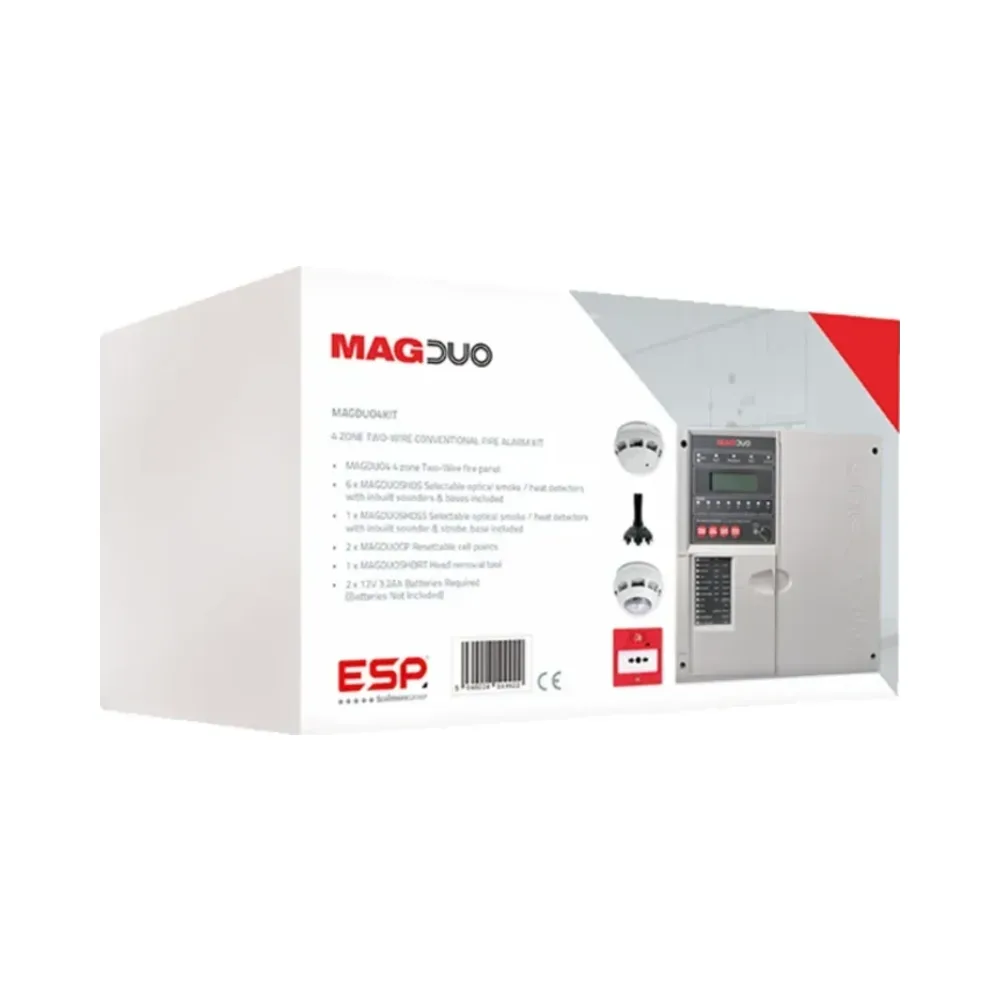

MAGDUO4KIT 4 Zone Two Wire Fire Alarm Kit
The MAGDUO4KIT provides a full 4-zone fire detection system with sounders, detectors, strobe, call points, and head removal tool. The twin-wire panel supports up to 32 devices per zone and is expandable to 8 zones if required.
Designed for mid-sized sites, this solution simplifies compliance and speeds up installation using ESP’s reliable MAGDUO platform and 2-wire configuration. All devices are EN54 compliant and easy to maintain.
✨ Key Features
- Twin-wire 2-zone to 8-zone fire panel (model dependent)
- Supports up to 32 devices per zone
- Includes combined smoke/heat detectors with sounders
- EN54-2 and EN54-4 certified system
- Compact panel size: 331 x 331 x 99 mm (IP30)
✅ Why Choose This Kit?
This ESP MAGDUO fire alarm kit delivers everything needed for a compliant installation in a single box. It simplifies wiring, saves time on-site, and ensures professional-grade results with EN54-certified components.
Technical Overview
- Panel supply: 230V AC | Operating voltage: 21–31V DC
- Nominal current: 700mA | PSU output: 2.1A
- Max 32 devices per zone | Max cable length per zone: 500m
- Detectors: 18–32V DC | Max current: up to 28.5mA
- Ingress protection: IP30 (panel) / IP21C (detectors)
- Operating temp: -10°C to +50°C (devices), +5°C to +40°C (panel)
What’s Included
- 1 x MAGDUO Fire Alarm Panel (2, 4, or 8 Zone, model specific)
- 6 x MAGDUOSHDS Combined Smoke & Heat Detectors with Sounders
- 1 x MAGDUOSHDSS Detector with Sounder & Strobe
- 2 x MAGDUOCP Manual Call Points
- 1 x MAGDUOSHDRT Detector Head Removal Tool
- Installation accessories: battery leads, fuses, resistors, keys
