Complete 2 Zone Fire Alarm Kit with Sounders, Detectors & Call Points

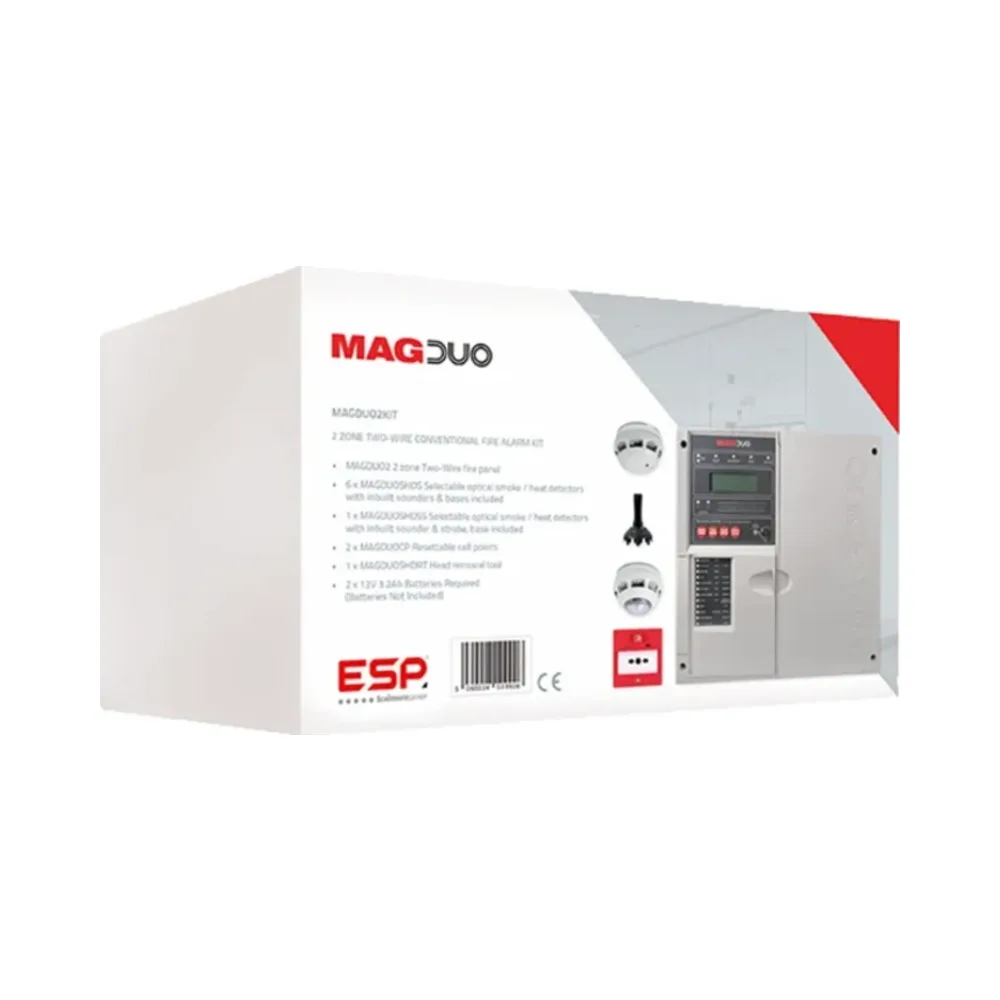

MAGDUO2KIT 2 Zone Two Wire Fire Alarm Kit
The MAGDUO2KIT 2 Zone Two Wire Fire Alarm Kit provides a ready-to-install solution for small commercial or residential environments. It includes everything needed for a compliant fire alarm system—featuring ESP’s proven 2-wire MAGDUO control panel, 6 FlexiPoint smoke/heat detectors with built-in sounders, a sounder-strobe unit, call points, and a detector head removal tool. This kit supports mixed detector and sounder devices on the same circuit, significantly reducing cabling and installation time.
Designed for straightforward compliance with BS EN 54-2 and EN 54-4, the system offers monitored outputs, programmable inputs, and robust ABS enclosures. The included panel supports up to 32 devices per zone across two circuits, and all devices are 2-wire conventional with simple loop configuration.
✨ Key Features
- Twin-wire 2-zone to 8-zone fire panel (model dependent)
- Supports up to 32 devices per zone
- Includes combined smoke/heat detectors with sounders
- EN54-2 and EN54-4 certified system
- Compact panel size: 331 x 331 x 99 mm (IP30)
✅ Why Choose This Kit?
This ESP MAGDUO fire alarm kit delivers everything needed for a compliant installation in a single box. It simplifies wiring, saves time on-site, and ensures professional-grade results with EN54-certified components.
Technical Overview
- Panel supply: 230V AC | Operating voltage: 21–31V DC
- Nominal current: 700mA | PSU output: 2.1A
- Max 32 devices per zone | Max cable length per zone: 500m
- Detectors: 18–32V DC | Max current: up to 28.5mA
- Ingress protection: IP30 (panel) / IP21C (detectors)
- Operating temp: -10°C to +50°C (devices), +5°C to +40°C (panel)
What’s Included
- 1 x MAGDUO Fire Alarm Panel (2, 4, or 8 Zone, model specific)
- 6 x MAGDUOSHDS Combined Smoke & Heat Detectors with Sounders
- 1 x MAGDUOSHDSS Detector with Sounder & Strobe
- 2 x MAGDUOCP Manual Call Points
- 1 x MAGDUOSHDRT Detector Head Removal Tool
- Installation accessories: battery leads, fuses, resistors, keys
