Envirograf IP021 Intumescent Pads

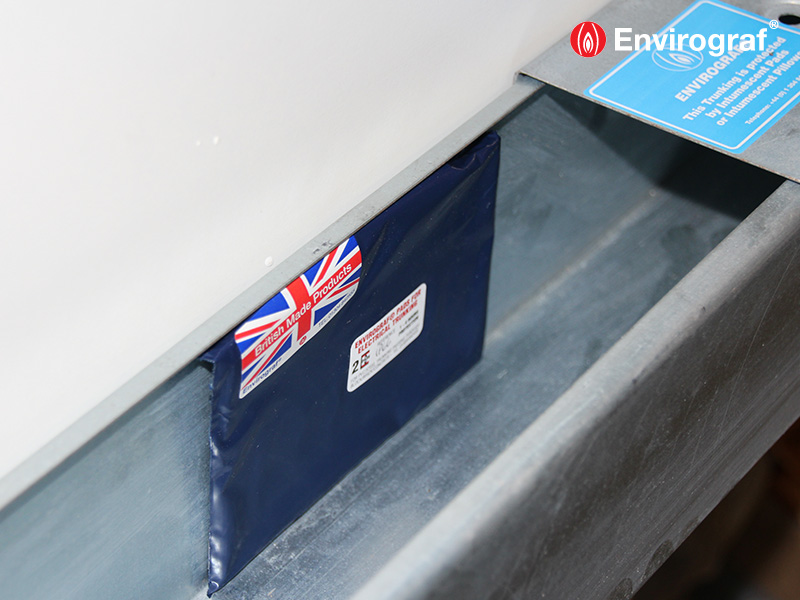

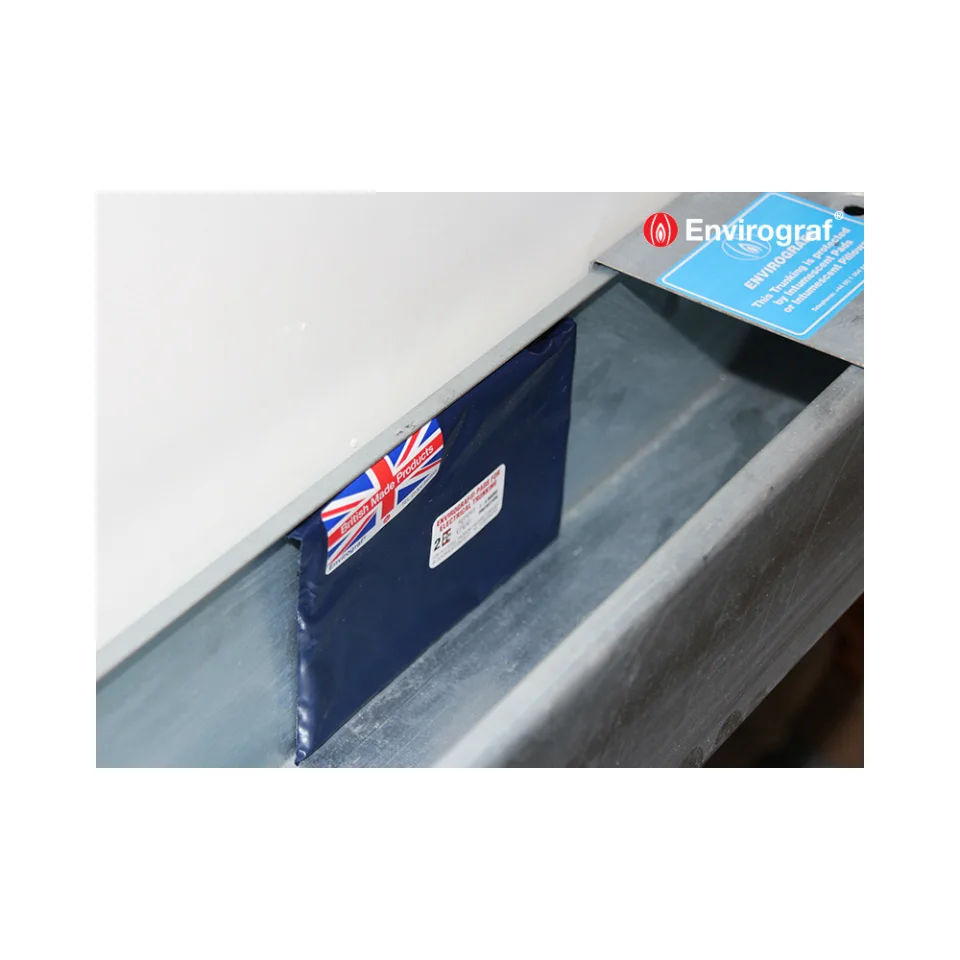

The Envirograf IP021 Intumescent Pads provide passive fire protection inside plastic and metal cable trunking systems. Their adhesive backing allows the pads to be attached inside the trunking where cables pass through walls or ceilings.
When exposed to fire, the intumescent material expands and compresses around the cables, helping fill the full width of the trunking and restrict the spread of fire through the opening. The Envirograf IP021 Intumescent Pads are lightweight and can be cut to suit different trunking sizes and shapes.
Key Features
- Passive fire protection for cable trunking systems
- Suitable for plastic and metal trunking
- Adhesive backing for straightforward installation
- Intumescent material expands when exposed to fire
- Compresses around cables to help fill the trunking opening
- Helps restrict fire spread through walls and ceilings
- Lightweight and easy to handle
- Can be cut to suit different trunking sizes and shapes
Typical Applications
- Plastic cable trunking
- Metal cable trunking
- Trunking passing through walls
- Trunking passing through ceilings
- Commercial and residential electrical installations
Technical Specifications
- Brand: Envirograf
- Product code: IP021
- Product type: Intumescent trunking pad
- Fixing method: Adhesive backing
- Application: Plastic and metal cable trunking
- Material response: Expands when exposed to fire
Installation
Ensure the inside of the trunking is clean, dry and free from dust or grease. Cut the pad where required, remove the adhesive backing and attach it securely inside the trunking. Position it so the expanding material can compress around the cables and help seal the trunking opening during a fire.
