Envirograf EN/F KIT Fire Resistant Intumescent Sealant Kit
The Envirograf EN/F KIT Fire Resistant Intumescent Sealant Kit is a passive fire protection system for sealing service penetrations through plasterboard, hollow, brick and block walls. The kit includes dark grey intumescent filler and white finishing sealant, providing up to two hours of fire protection and insulation when correctly installed.
Suitable for hollow and solid walls, floors and ceilings, the Envirograf EN/F KIT Fire Resistant Intumescent Sealant Kit can be used around compatible aluminium, copper, plastic and steel pipes up to 50mm in diameter, as well as cables up to 32mm in diameter. The sealant becomes water-resistant once fully cured.

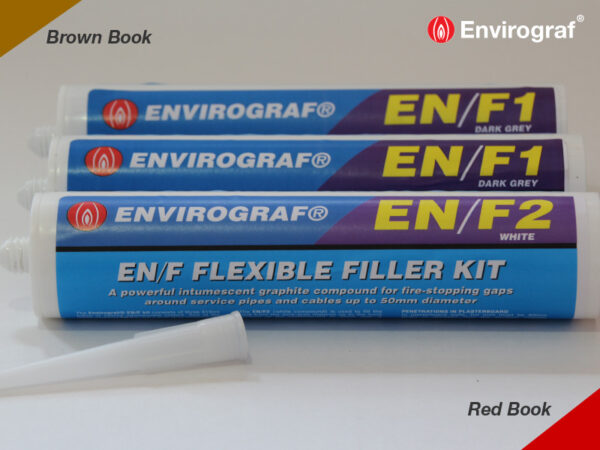

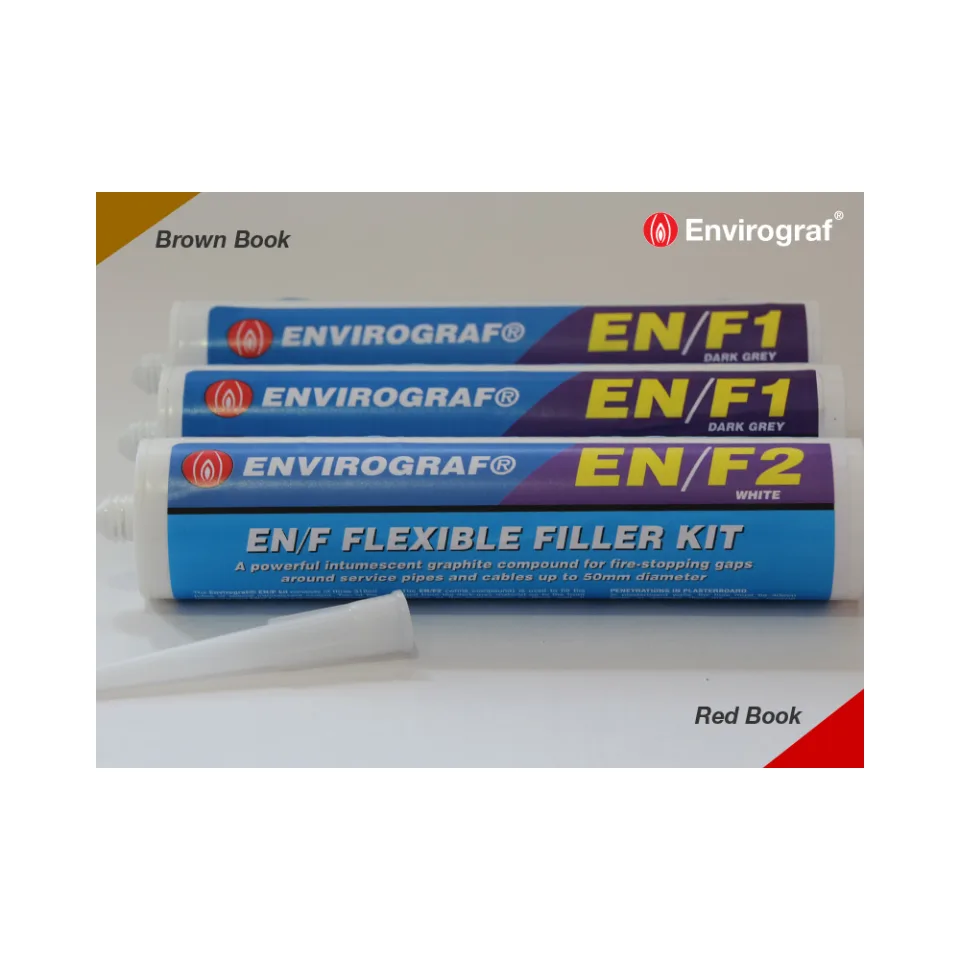

Kit Contents
- 2 x 310 ml EN/F1 dark grey intumescent filler sealant
- 1 x 310 ml EN/F2 white finishing sealant
- Total kit contents: 3 x 310 ml cartridges
Key Features – Envirograf EN/F KIT Fire Resistant Intumescent Sealant Kit
- Passive fire protection for service penetrations
- Provides up to two hours of fire protection and insulation
- Suitable for plasterboard and hollow walls
- Suitable for brick and block walls
- Can be used in compatible wall, floor and ceiling penetrations
- Suitable for compatible pipes up to 50mm in diameter
- Suitable for cables up to 32mm in diameter
- EN/F1 dark grey sealant fills the main opening
- EN/F2 white sealant provides the finished surface
- Becomes water-resistant after curing
Suitable Pipe Materials
- Aluminium pipes
- Copper pipes
- Plastic pipes
- Steel pipes
Technical Specifications
- Brand: Envirograf
- Product reference: EN/F KIT
- Product type: Intumescent fire-resistant sealant kit
- Cartridge size: 310 ml each
- Number of cartridges: 3
- Maximum compatible pipe diameter: 50mm
- Maximum compatible cable diameter: 32mm
- Fire protection: Up to two hours
- Finish: Dark grey filler with white finishing sealant
Application in Plasterboard and Hollow Walls
Ensure the opening is approximately 40mm larger in diameter than the service passing through it. Fill around the service using the dark grey EN/F1 intumescent sealant, stopping approximately 10mm short of the front surface. Apply the white EN/F2 finishing sealant to the remaining depth and level the surface using a spatula.
Application in Solid Walls
For brick, block and concrete substrates, ensure the opening is approximately 30mm larger in diameter than the service. Fill around the service with EN/F1 sealant, leaving approximately 10mm at the front. Complete the seal using EN/F2 white finishing sealant and smooth the surface.
