DTech CAT6 Solid Copper U/UTP Cable 305m White
AV-Ready CAT6 500MHz Unscreened LSZH Data Cable
DTech CAT6 Solid Copper U/UTP Cable 305m White is an AV-Ready structured data cable designed for high-performance networking, PoE, ELV control and compatible AV distribution systems. Featuring 8 solid bare copper conductors arranged as four twisted pairs, this unscreened U/UTP cable delivers performance up to 500MHz.

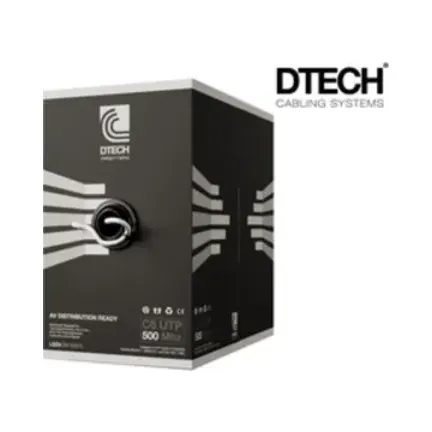

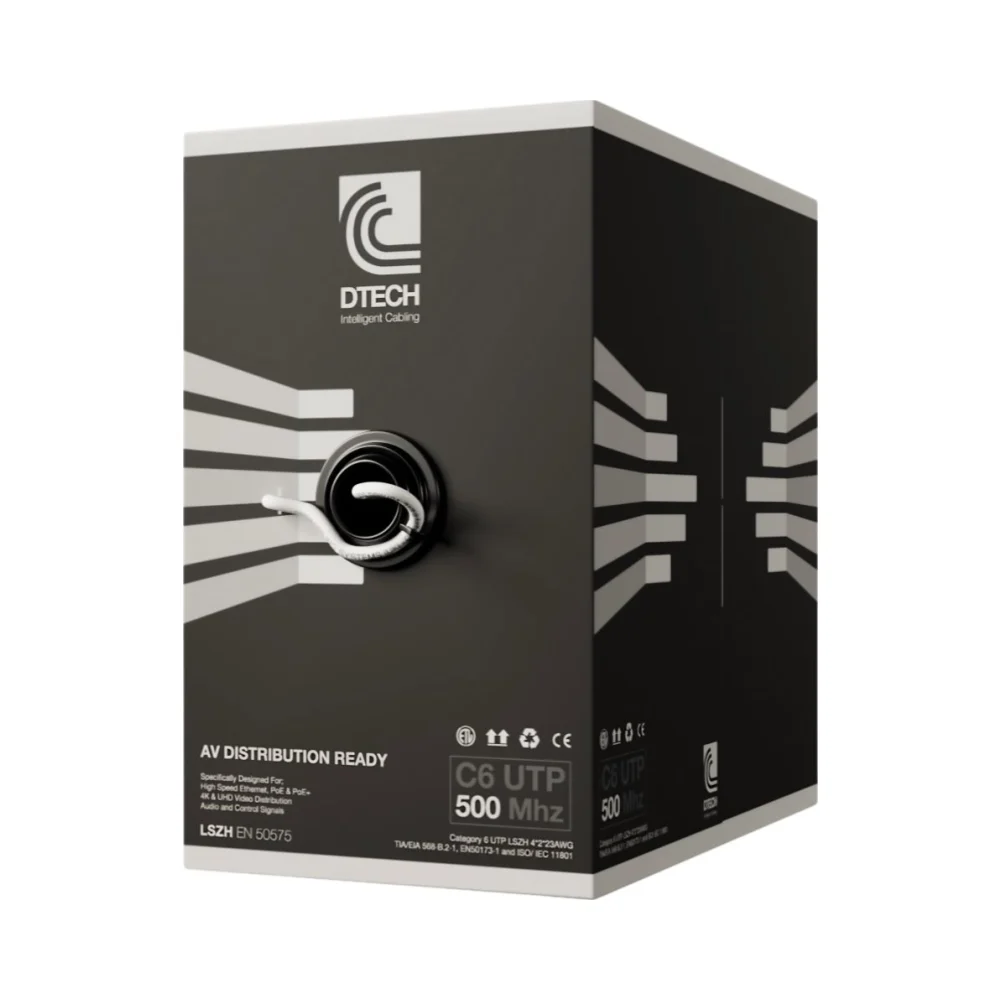

The DTech AV-Ready CAT6 Cable is part of the N-Link range, developed for modern building networks where data, power-over-Ethernet, control and AV signals may all need to be supported by the structured cabling infrastructure. It is supplied in a convenient 305m pull box for efficient installation.
Key Features
- AV-Ready Category 6 data cable
- 500MHz performance
- 305m pull box
- White LSZH outer jacket
- U/UTP unscreened cable construction
- 8 solid bare copper conductors
- 4 twisted pair construction
- 23AWG conductors
- Supports 10GBASE-T
- Suitable for PoE applications
- Suitable for ELV control systems
- Supports compatible HD, UHD and 4K video distribution
- Suitable for compatible audio distribution
- Low Smoke Zero Halogen jacket
DTech AV-Ready CAT6 Cable
The DTech AV-Ready CAT6 Cable has been developed to support more than conventional network data. Alongside 10GBASE-T and PoE applications, the cable can be used for compatible AV and control distribution where suitable hardware and communication systems are installed.
DTech identifies the range for HD, UHD and 4K video distribution, audio distribution and ELV control, making it suitable for structured cabling in residential, commercial and integrated AV environments.
Solid Copper U/UTP Construction
DTech CAT6 Solid Copper U/UTP Cable 305m White uses four twisted pairs of 23AWG solid bare copper conductors. This provides eight individual copper conductors within an unscreened U/UTP cable construction.
The cable uses PE core insulation with colour-coded pairs and does not incorporate an overall foil or braided screen, making it suitable for installations where an unscreened Category 6 cable is required.
500MHz CAT6 Performance
The cable is specified by DTech for operation up to 500MHz and is part of its AV-Ready Next-Gen Category 6 range. It is designed to support increasing bandwidth requirements across new and existing building cable infrastructures.
The DTech datasheet also identifies the cable as certified under Intertek’s ETL verification scheme and the Valens HDBaseT Recommended Cable Program.
LSZH Cable Construction
The white outer jacket uses Low Smoke Zero Halogen material, making the cable suitable for projects where LSZH structured cabling is specified.
The cable has an overall diameter of approximately 6.2mm and a specified installation temperature range of 0°C to 60°C.
Typical Applications
- Category 6 structured cabling
- 10GBASE-T network installations
- PoE applications
- ELV control systems
- Residential data networks
- Commercial data networks
- Integrated AV installations
- HD video distribution with suitable hardware
- UHD and 4K video distribution with suitable hardware
- Compatible audio distribution systems
- HDBaseT applications with suitable equipment
Technical Specifications
- Brand: DTech Cabling Systems
- Range: AV-Ready Category 6
- Category: CAT6
- Frequency: 500MHz
- Construction: U/UTP unscreened
- Conductor material: Solid bare copper
- Number of conductors: 8
- Number of pairs: 4
- Conductor size: 1/23AWG
- Jacket material: Low Smoke Zero Halogen
- Jacket colour: White
- Core insulation: PE
- Core identification: Coloured pairs
- Outer diameter: 6.2 ± 0.1mm
- Installation temperature range: 0°C to 60°C
- Impedance: 100 ±15 Ohm
- Dielectric strength: 1200V DC / 850V AC
- Bending radius: 6 x outer diameter
- NVP value: 69%
- CPR rating: Dca-s1,d1,a1
- Length: 305m
Compliance and Approvals
- ANSI/TIA-568.2-D Category 6 Networks
- EN 50173-1
- ISO/IEC 11801
- EU RoHS3
- EN 50575:2014
- CPR tested for Europe
- CM rated for North America
- EN 50173-1:2011
- EN 50173-2/A1.2010
- Intertek ETL verification
- Valens HDBaseT Recommended Cable Program
- DTech Network 30 Year System Warranty
