DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Violet
AV-Ready Structured Cable for High-Bandwidth Data and AV Applications
DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Violet is a professional Category 6 structured data cable developed for demanding network, PoE, control and compatible AV installations. Its four-pair construction uses 23AWG solid bare copper conductors, providing eight individual cores within an unscreened U/UTP cable.

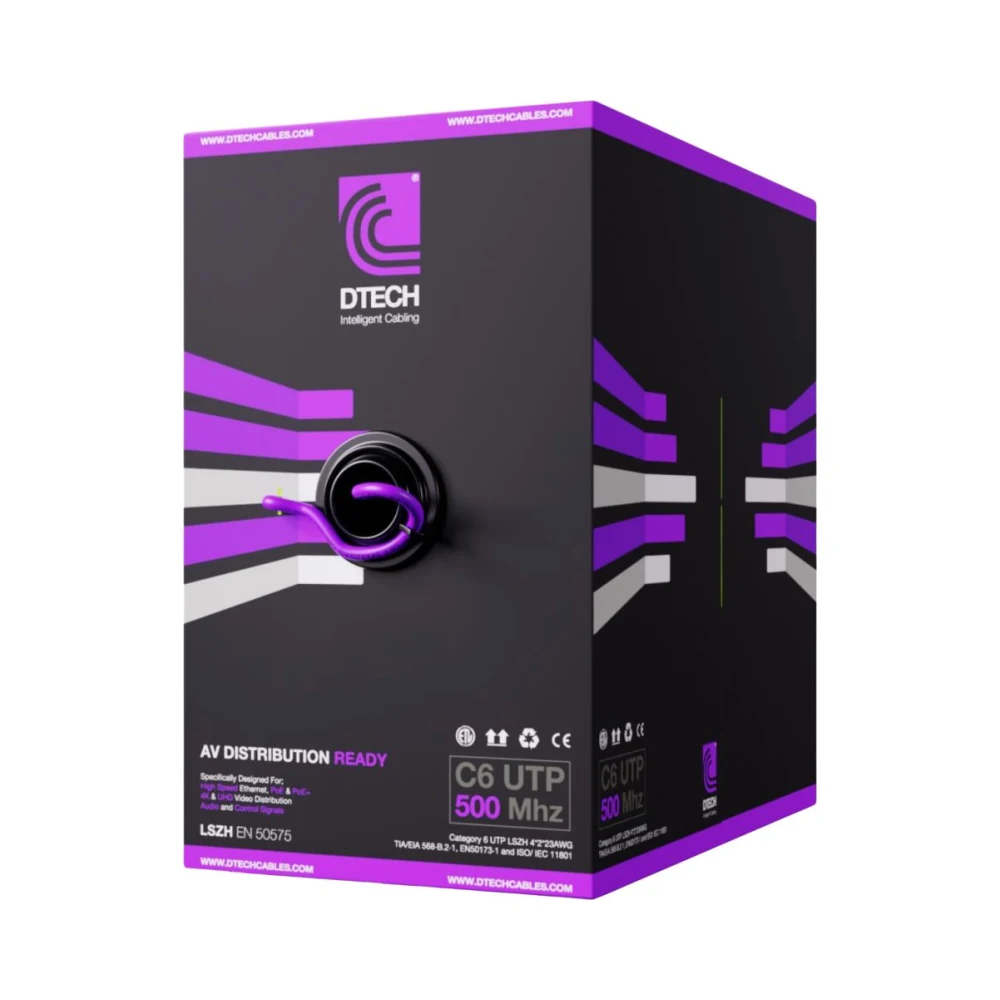

Supplied in a 305m pull box, the distinctive violet LSZH jacket provides an easy way to identify specific networks or services within larger cabling systems. The DTech AV-Ready CAT6 Cable is part of the N-Link range and is specified for performance up to 500MHz.
Built for More Than Standard Data Networking
DTech’s AV-Ready range is designed for modern building infrastructure where structured cabling may be required to support data, power, control and multimedia signals.
The manufacturer specifies support for 10GBASE-T, PoE applications and ELV control. When suitable hardware and communication systems are used, the cable can also support HD, UHD and 4K video distribution together with compatible audio distribution.
Key Features
- AV-Ready Category 6 structured cable
- 500MHz specified performance
- Violet LSZH outer jacket
- 305m pull box
- U/UTP unscreened construction
- 8 solid bare copper conductors
- 4 twisted pairs
- 23AWG solid conductor size
- Supports 10GBASE-T
- Suitable for PoE applications
- Suitable for ELV control
- Supports compatible HD, UHD and 4K video distribution
- Suitable for compatible audio distribution
- Valens HDBaseT Recommended Cable Program referenced by DTech
Violet CAT6 Cable for Network Identification
The violet jacket provides a clear visual distinction between this cable and other data cable colours installed within the same containment, cabinet or patching environment.
Colour coding can be particularly useful on larger installations where separate services, networks, departments or equipment groups need to be identified quickly during termination, testing or future maintenance.
23AWG Solid Copper Construction
DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Violet contains four colour-coded twisted pairs manufactured from solid bare copper.
Each conductor is 23AWG with PE core insulation. The U/UTP design is unscreened and does not incorporate an overall foil or braided shield, providing a conventional unscreened Category 6 cable construction.
AV-Ready CAT6 Performance
The DTech AV-Ready CAT6 Cable is specified for frequencies up to 500MHz and has been developed to meet increasing bandwidth requirements across new and existing building networks.
DTech also states that the range is certified through Intertek’s ETL verification scheme and the Valens HDBaseT Recommended Cable Program, supporting its intended use within compatible professional data and AV infrastructure.
Typical Applications
- Category 6 structured cabling
- Commercial network installations
- Residential data networks
- 10GBASE-T applications
- PoE network devices
- ELV control systems
- Building network infrastructure
- AV-ready cabling systems
- HDBaseT compatible installations
- HD and UHD distribution with suitable hardware
- 4K video distribution with suitable hardware
- Compatible audio distribution
- Colour-coded network installations
LSZH Jacket and Cable Construction
The violet outer jacket is manufactured from Low Smoke Zero Halogen material and the cable carries a CPR classification of Dca-s1,d1,a1.
DTech specifies an overall cable diameter of 6.2 ± 0.1mm, an installation temperature range from 0°C to 60°C and a bending radius of six times the cable outer diameter.
Technical Specifications
- Brand: DTech Cabling Systems
- Manufacturer part number: C6-UTP-ZH-NVL
- Range: AV-Ready Category 6
- Category: CAT6
- Frequency: 500MHz
- Cable construction: U/UTP unscreened
- Conductor material: Solid bare copper
- Number of conductors: 8
- Number of pairs: 4
- Conductor size: 1/23AWG
- Jacket material: Low Smoke Zero Halogen
- Jacket colour: Violet
- Core insulation: PE
- Core identification: Coloured pairs
- Outer diameter: 6.2 ± 0.1mm
- Installation temperature range: 0°C to 60°C
- Impedance: 100 ±15 Ohm
- Dielectric strength: 1200V DC / 850V AC
- Bending radius: 6 x outer diameter
- NVP value: 69%
- CPR rating: Dca-s1,d1,a1
- Supplied length: 305m
Compliance and Approvals
- ANSI/TIA-568.2-D Category 6 Networks
- EN 50173-1
- ISO/IEC 11801
- EU RoHS3
- EN 50575:2014
- CPR tested for Europe
- CM rated for North America
- EN 50173-1:2011
- EN 50173-2/A1.2010
- Intertek ETL verification referenced by DTech
- Valens HDBaseT Recommended Cable Program referenced by DTech
- DTech Network 30 Year System Warranty
