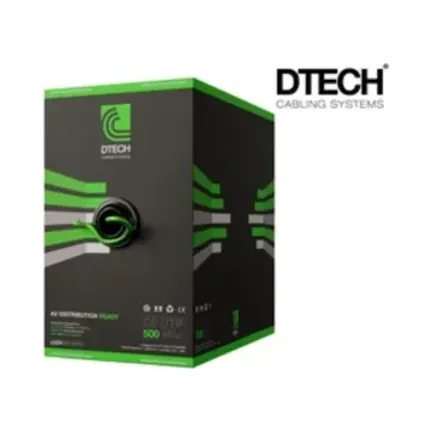

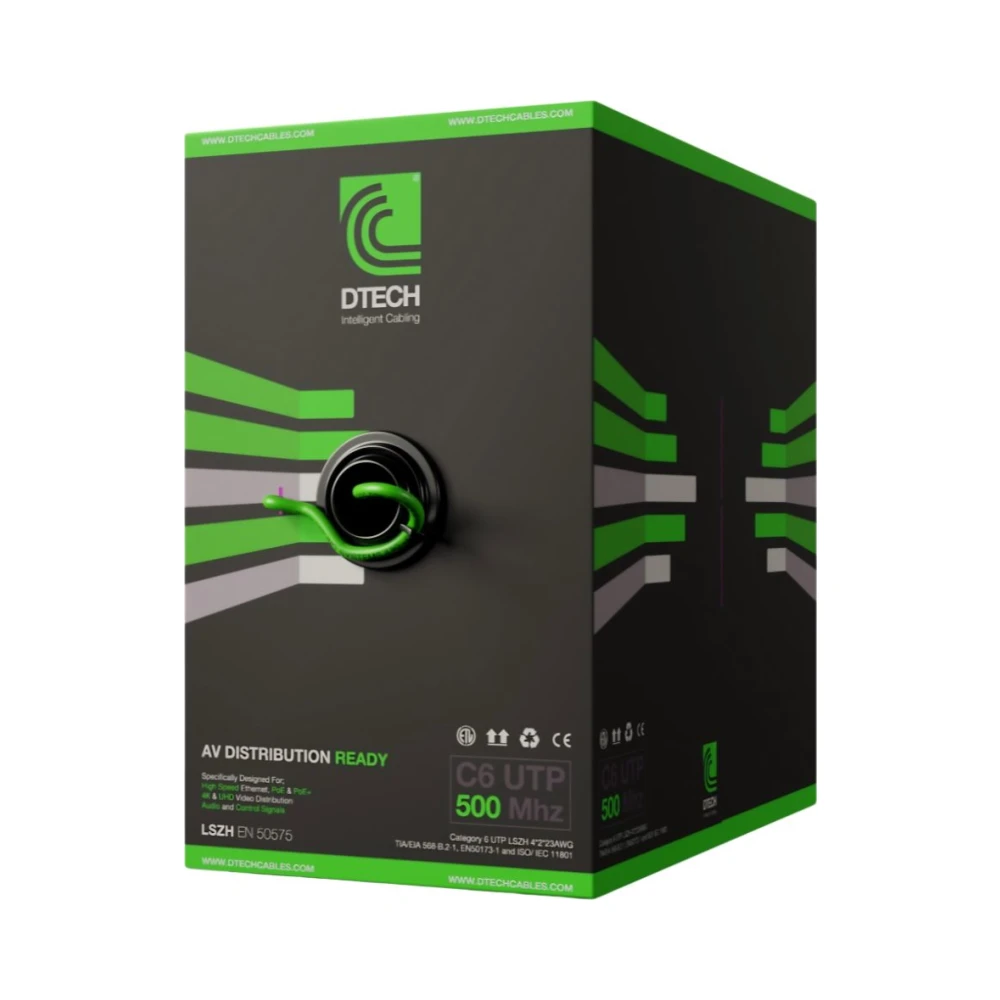

DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Green
AV-Ready LSZH Network Cable for Data, PoE and AV Systems
DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Green is a professional structured cabling solution built around eight solid bare copper conductors and a four-pair U/UTP configuration. Rated for performance up to 500MHz, it is suitable for modern network infrastructure as well as PoE, ELV control and compatible AV distribution applications.
The green LSZH jacket gives installers a convenient way to distinguish specific network services or cable routes within larger installations. Supplied in a 305m pull box, this DTech AV-Ready CAT6 Cable is suitable for residential, commercial, automation and integrated AV cabling projects.
CAT6 Cable Designed for Modern Building Networks
DTech’s AV-Ready N-Link range has been developed to accommodate increasing bandwidth requirements in new and existing building infrastructure.
In addition to conventional Category 6 networking, the manufacturer specifies support for 10GBASE-T, PoE applications and ELV control. The cable can also form part of compatible HD, UHD, 4K video and audio distribution systems when used with appropriate hardware.
Key Product Benefits
- AV-Ready Category 6 structured cable
- Performance specified up to 500MHz
- Green LSZH outer jacket
- 305m pull box supply
- U/UTP unscreened construction
- 8 solid bare copper conductors
- 4 twisted pair configuration
- 23AWG solid conductors
- Supports 10GBASE-T applications
- Suitable for Power over Ethernet
- Suitable for ELV control installations
- Compatible with suitable HDBaseT equipment
- Supports compatible HD, UHD and 4K video distribution
- Suitable for compatible audio distribution systems
Green Jacket for Cable Identification
The green outer jacket makes this cable particularly useful in installations where different colours are assigned to individual systems, networks or services.
Colour-coded structured cabling can make identification easier at patch panels, containment routes and termination points, helping installers and maintenance engineers distinguish one network from another without changing the underlying cable performance.
8 Core Solid Copper Construction
DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Green contains four twisted pairs, providing eight individual solid bare copper conductors.
Each conductor is 23AWG and insulated with PE material. The U/UTP design is unscreened, with no overall foil or braid, making it suitable for installations specified for conventional unscreened Category 6 structured cabling.
AV-Ready, PoE and Control Capability
The DTech AV-Ready CAT6 Cable can be used as part of network infrastructures serving more than standard Ethernet devices. DTech specifies the range for PoE and ELV control applications alongside network data.
With suitable connected equipment, the same structured cabling can also support compatible video and audio distribution, including HD, UHD and 4K systems.
Typical Uses
- Category 6 structured networks
- Commercial data installations
- Residential network cabling
- 10GBASE-T applications
- PoE devices and network equipment
- ELV control infrastructure
- Building control and automation systems
- AV-ready structured cabling
- HDBaseT compatible installations
- HD and UHD distribution with suitable hardware
- 4K video distribution with suitable hardware
- Audio distribution with suitable equipment
- Colour-coded network installations
Technical Specifications
- Brand: DTech Cabling Systems
- Range: AV-Ready Category 6
- Category: CAT6
- Frequency: 500MHz
- Cable construction: U/UTP unscreened
- Conductor material: Solid bare copper
- Number of conductors: 8
- Number of pairs: 4
- Conductor size: 1/23AWG
- Jacket material: Low Smoke Zero Halogen
- Jacket colour: Green
- Core insulation: PE
- Core identification: Colour-coded pairs
- Outer diameter: 6.2 ± 0.1mm
- Installation temperature range: 0°C to 60°C
- Impedance: 100 ±15 Ohm
- Dielectric strength: 1200V DC / 850V AC
- Bending radius: 6 x outer diameter
- NVP value: 69%
- CPR rating: Dca-s1,d1,a1
- Supplied length: 305m
Compliance and Approvals
- ANSI/TIA-568.2-D Category 6 Networks
- EN 50173-1
- ISO/IEC 11801
- EU RoHS3
- EN 50575:2014
- CPR tested for Europe
- CM rated for North America
- EN 50173-1:2011
- EN 50173-2/A1.2010
- Intertek ETL verification referenced by DTech
- Valens HDBaseT Recommended Cable Program referenced by DTech
- DTech Network 30 Year System Warranty
