DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Blue
AV-Ready Unscreened CAT6 Data Cable with Solid Copper Conductors

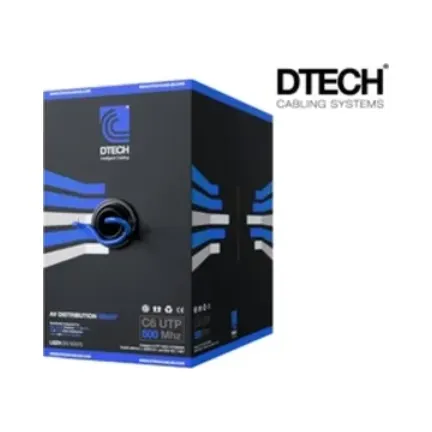

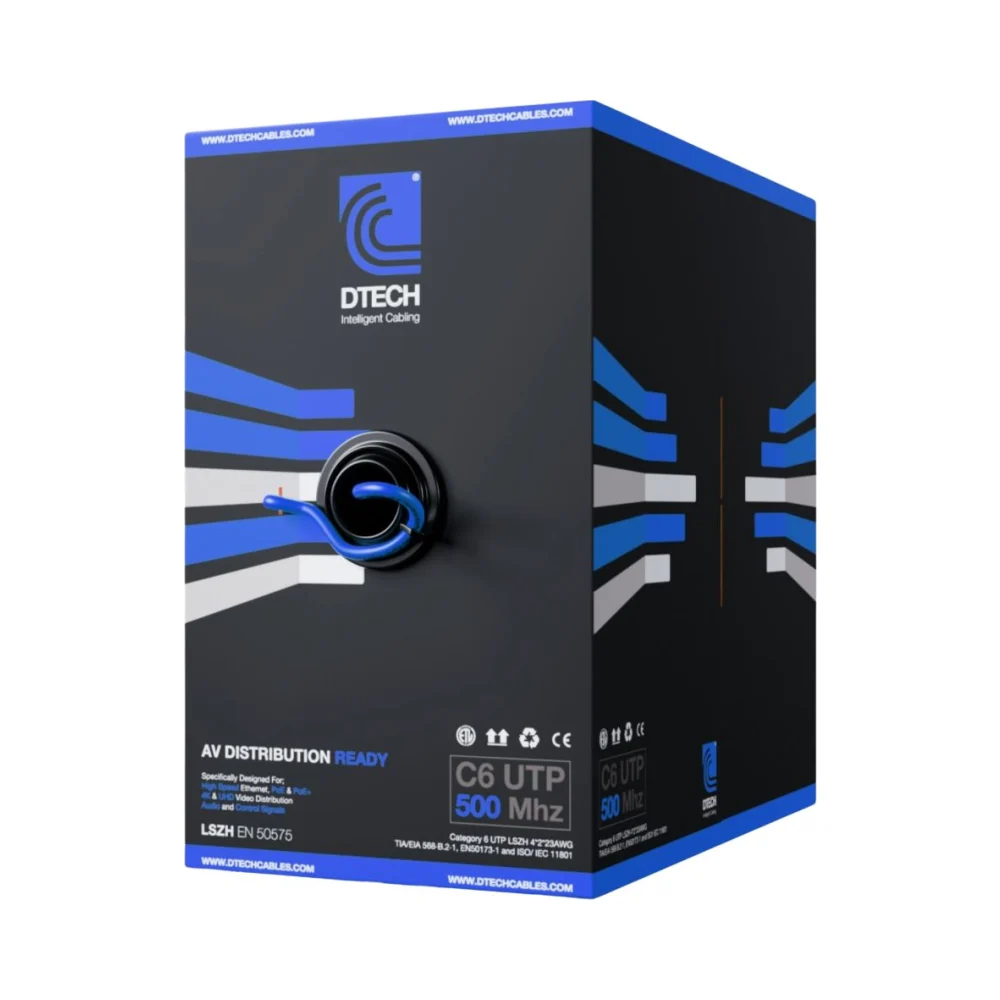

DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Blue is designed for structured data networks, PoE equipment, ELV control and compatible AV distribution systems. The cable uses eight 23AWG solid bare copper conductors arranged as four twisted pairs and is supplied in a 305m pull box for efficient installation.
This DTech AV-Ready CAT6 Cable offers performance up to 500MHz and forms part of the manufacturer’s N-Link structured cabling range. Its blue Low Smoke Zero Halogen jacket provides an easily identifiable cable route while retaining the performance required for modern residential, commercial and AV-ready network installations.
Why Choose This DTech CAT6 Cable?
- Category 6 AV-Ready structured data cable
- 500MHz rated performance
- 305m cable length
- Blue Low Smoke Zero Halogen jacket
- 8 solid bare copper conductors
- Four twisted pairs
- 23AWG conductor size
- U/UTP unscreened construction
- Supports 10GBASE-T
- Suitable for PoE applications
- Suitable for ELV control systems
- Compatible with suitable HD, UHD and 4K distribution hardware
- Suitable for compatible audio distribution
500MHz AV-Ready Performance
The DTech AV-Ready CAT6 Cable has been developed for building networks where the structured cabling infrastructure may be required to carry more than conventional Ethernet data.
DTech specifies support for 10GBASE-T, PoE and ELV control applications. When paired with suitable hardware and communication equipment, the cable can also support HD, UHD and 4K video distribution together with compatible audio distribution.
Blue Cable for Structured Network Identification
The blue outer jacket provides a useful visual reference within larger cabling installations. Different jacket colours can be used to separate network types, services or areas, helping installers identify individual cable routes during termination, testing and future maintenance.
DTech CAT6 Solid Copper U/UTP 500MHz Cable 305m Blue is therefore particularly useful for projects where cable colour forms part of the structured cabling identification system.
Solid Copper 8 Core Construction
Inside the cable are eight solid bare copper conductors configured as four colour-coded twisted pairs. Each conductor is 23AWG and uses PE core insulation.
The U/UTP construction is unscreened, without an overall foil or braided shield, providing a conventional CAT6 cable format for installations where screened data cabling is not specified.
Low Smoke Zero Halogen Jacket
A Low Smoke Zero Halogen outer jacket surrounds the cable and the manufacturer specifies a CPR classification of Dca-s1,d1,a1.
The finished cable has an outside diameter of approximately 6.2mm, with an installation temperature range of 0°C to 60°C and a minimum bending radius of six times the cable diameter.
Suitable Applications
- CAT6 structured cabling systems
- Residential data networks
- Commercial network installations
- 10GBASE-T applications
- PoE network equipment
- ELV control installations
- Building automation systems
- AV-ready network infrastructure
- HDBaseT compatible installations
- HD, UHD and 4K distribution with suitable hardware
- Compatible audio distribution
- Colour-coded network infrastructure
Technical Specifications
- Brand: DTech Cabling Systems
- Range: AV-Ready Category 6
- Category: CAT6
- Frequency: 500MHz
- Cable type: U/UTP unscreened
- Conductor material: Solid bare copper
- Number of conductors: 8
- Number of pairs: 4
- Conductor size: 1/23AWG
- Jacket material: Low Smoke Zero Halogen
- Jacket colour: Blue
- Core insulation: PE
- Core identification: Colour-coded pairs
- Outer diameter: 6.2 ± 0.1mm
- Installation temperature range: 0°C to 60°C
- Impedance: 100 ±15 Ohm
- Dielectric strength: 1200V DC / 850V AC
- Bending radius: 6 x outer diameter
- NVP value: 69%
- CPR rating: Dca-s1,d1,a1
- Supplied length: 305m
Compliance and Approvals
- ANSI/TIA-568.2-D Category 6 Networks
- EN 50173-1
- ISO/IEC 11801
- EU RoHS3
- EN 50575:2014
- CPR tested for Europe
- CM rated for North America
- EN 50173-1:2011
- EN 50173-2/A1.2010
- Intertek ETL verification referenced by DTech
- Valens HDBaseT Recommended Cable Program referenced by DTech
- DTech Network 30 Year System Warranty
