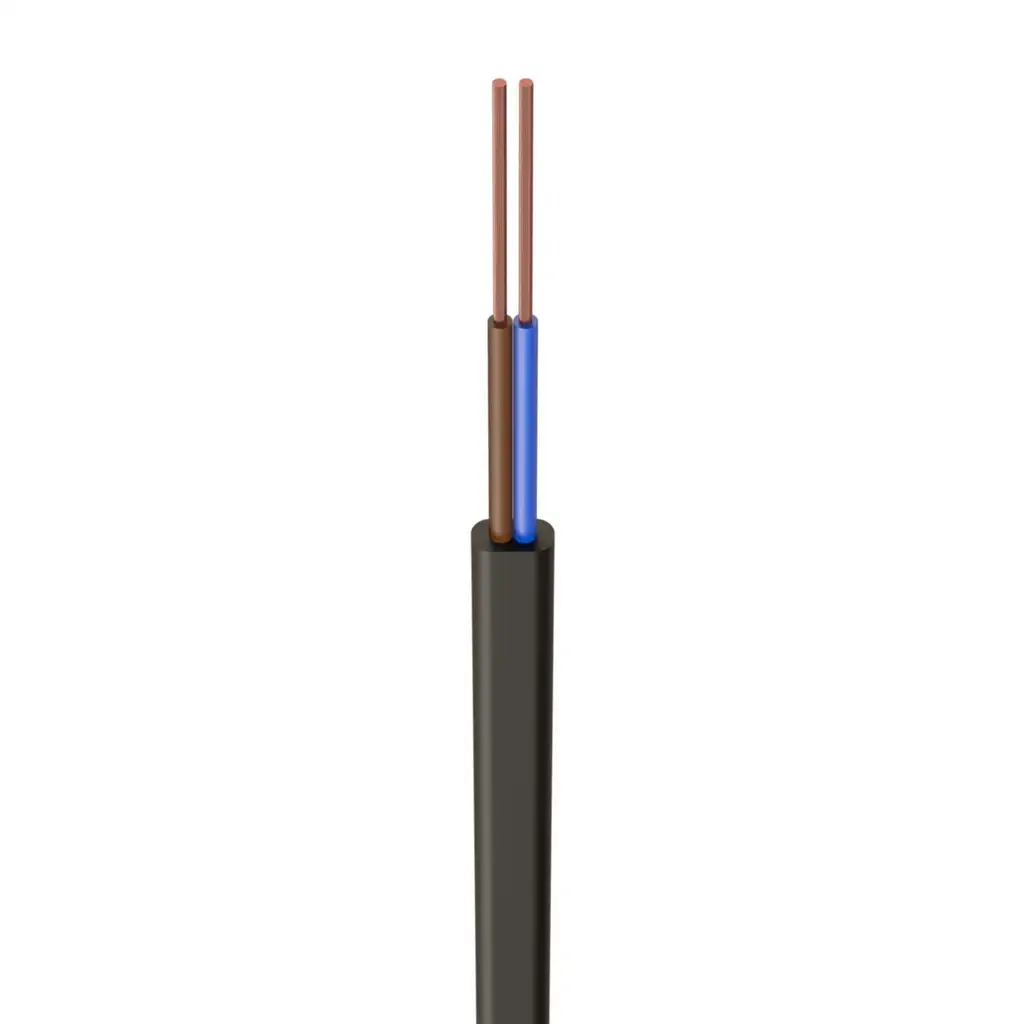

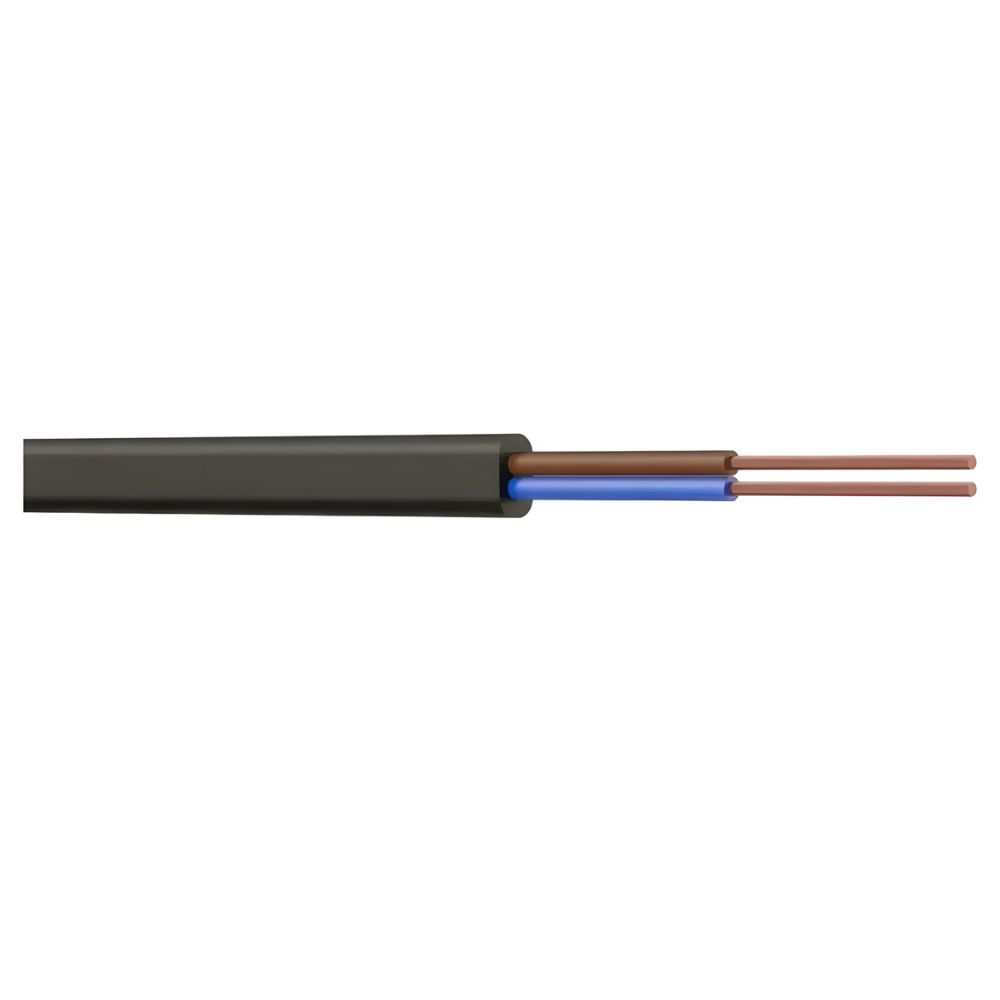

2 Core 0.5mm Light Duty Flat Flexible Cable – 100m Drum
Doncaster Cables 2192Y 2 Core 0.5mm Black Flexible Cable is a light duty flat parallel PVC insulated and PVC sheathed flexible cord rated at 300/300V and supplied on a 100 metre drum.
Manufactured to BS EN 50525-2-11, this cable carries the harmonised designation H03VVH2-F, confirming its flat parallel construction. Designed for low mechanical stress environments, it is suitable for light domestic and commercial applications where flexibility and reliability are required.
Construction – Doncaster Cables 2192Y 2 Core 0.5mm Black Flexible Cable
- Conductor: Plain annealed copper, Class 5 flexible to BS EN 60228
- Insulation: PVC Type TI2
- Sheath: PVC Type TM2
- Voltage Rating: 300/300V
- Minimum Operating Temperature: -15°C
- Maximum Operating Temperature: 70°C
- Minimum Bending Radius: 6 x overall diameter
Typical Applications – Doncaster Cables 2192Y 2 Core 0.5mm Black Flexible Cable
Suitable for use where the risk of mechanical damage is low, including:
- Domestic hair dryers and styling appliances
- Radio sets
- Table and standard lamps
- Small desktop machines
For indoor dry environments only.
