Description

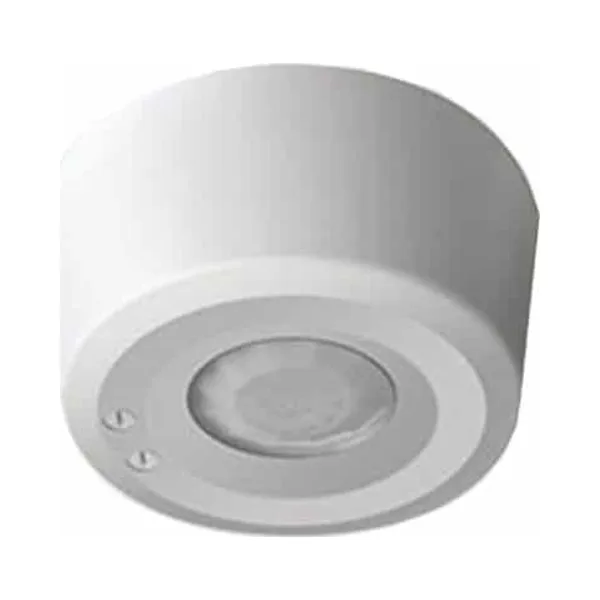

Ceiling surface mounted PIR Occupancy switch with Short visit function and Courtesy exit mode
This PIR occupancy switch is designed for the automatic control of lighting loads with the additional benefit of manual temporary intervention when used in combination with retractive wall switch (momentary).
These surface-mounted models are ideal for solid ceilings.
The CESR PIRSV is a hard wired version and can be mounted directly onto solid ceilings or onto a range of different mounting boxes.
| Detection Zone: | 360° |
| Time lag range: | 10 seconds to 40 minutes in 9 steps |
| Short visit/exit time lag: | 30 seconds |
| Photocell range: | 30 to 1000 lux, and inactive |
| Loading: | Up to 6 amps (1500W) of resistive loads. Up to 6 amps (1500W) of fluorescent loads. Up to 3 amps (750W) of electronic and wire wound transformer loads. Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings. Up to 1 amp (250W) of fans. |
| Dimensions: | 91 x 91 x 45mm |
