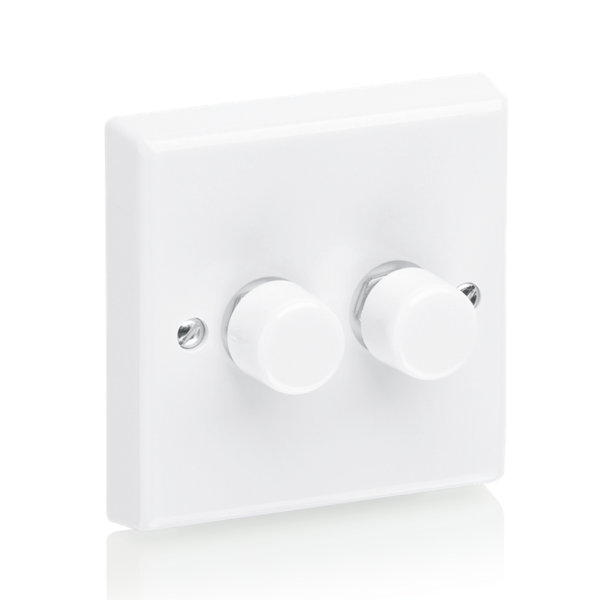

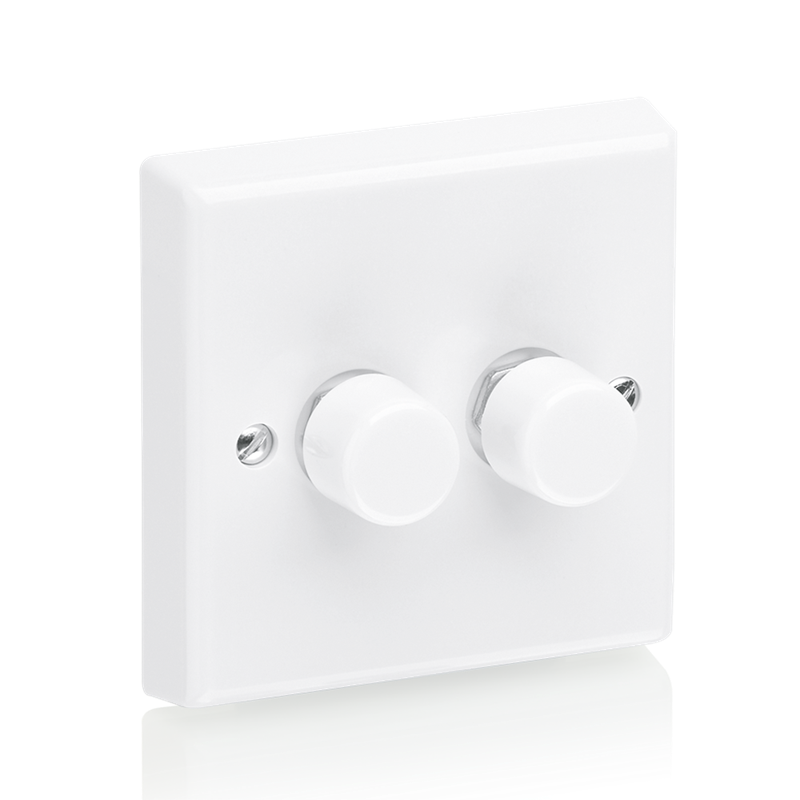

Aurora 2 Gang 2 Way Rotary Dimmer 250VA
One or two way switching, smooth dimming operation from 0-100% light output.
Suitable for control of dimmable electronic transformers, toroidal transformers and tungsten lamps WITHOUT de-rating
Not suitable for use with fluorescent lamps
Leading edge phase control
For use with resistive and inductive loads
Integrated over-temperature protection fuse
Module case ultrasonically sealed to reduce dimmer buzzing
Fits a plaster depth (16mm) mounting box AU-DSP251 / AU-DSP252 / AU-DSP401.
Use 25mm mounting box for AU-DSP253 / AU-DSP254 / AU-DSP402,
45mm for AU-DSP1001.
Complies with the latest Electrical Safety standard for dimmer switches EN 60669-2-1:2000
EMC compliance – EN 55015
Available in white finish only
Derate dimmer by 70% for LED loads
1 Year Warranty
See full section of Dimmer Modules
