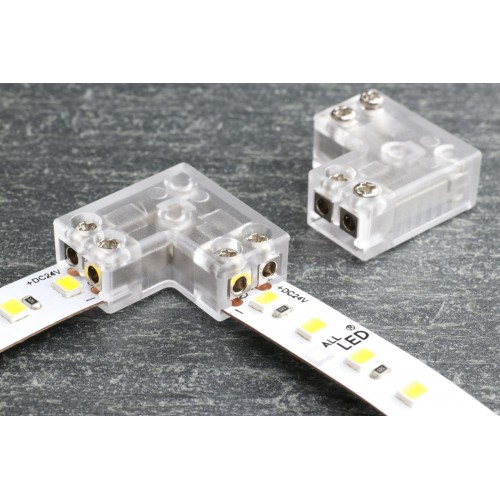

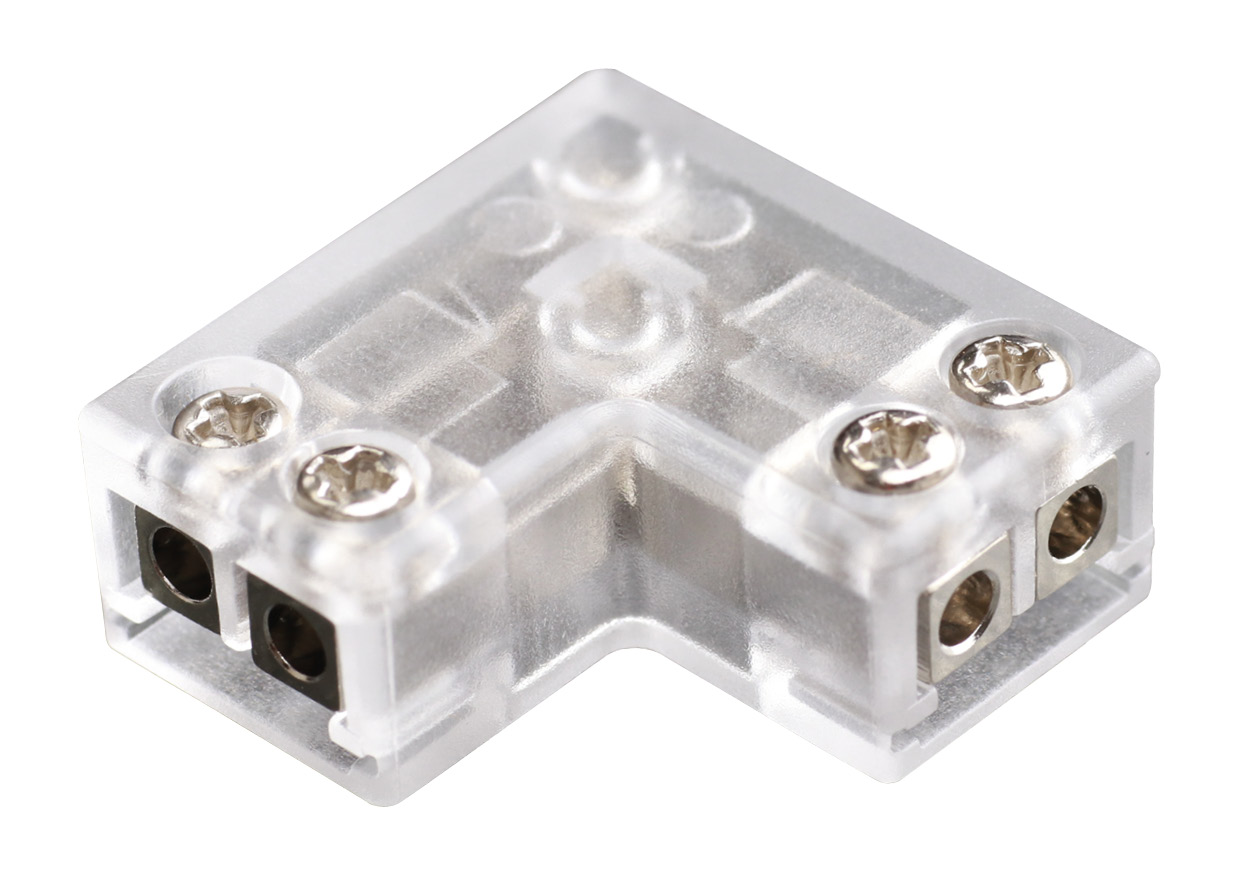

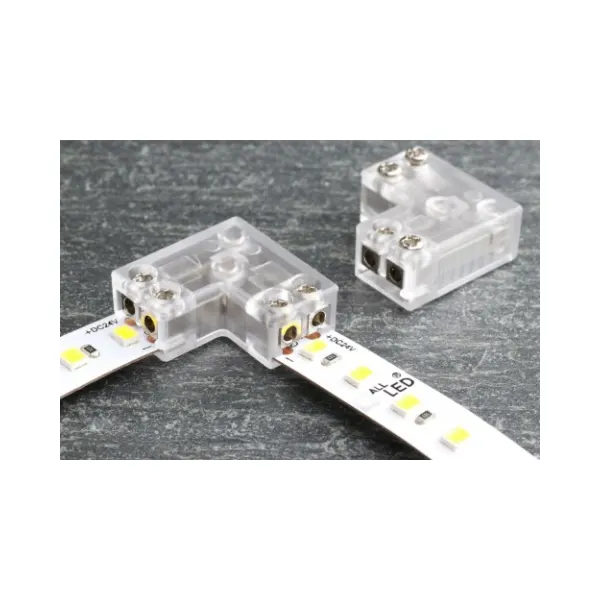

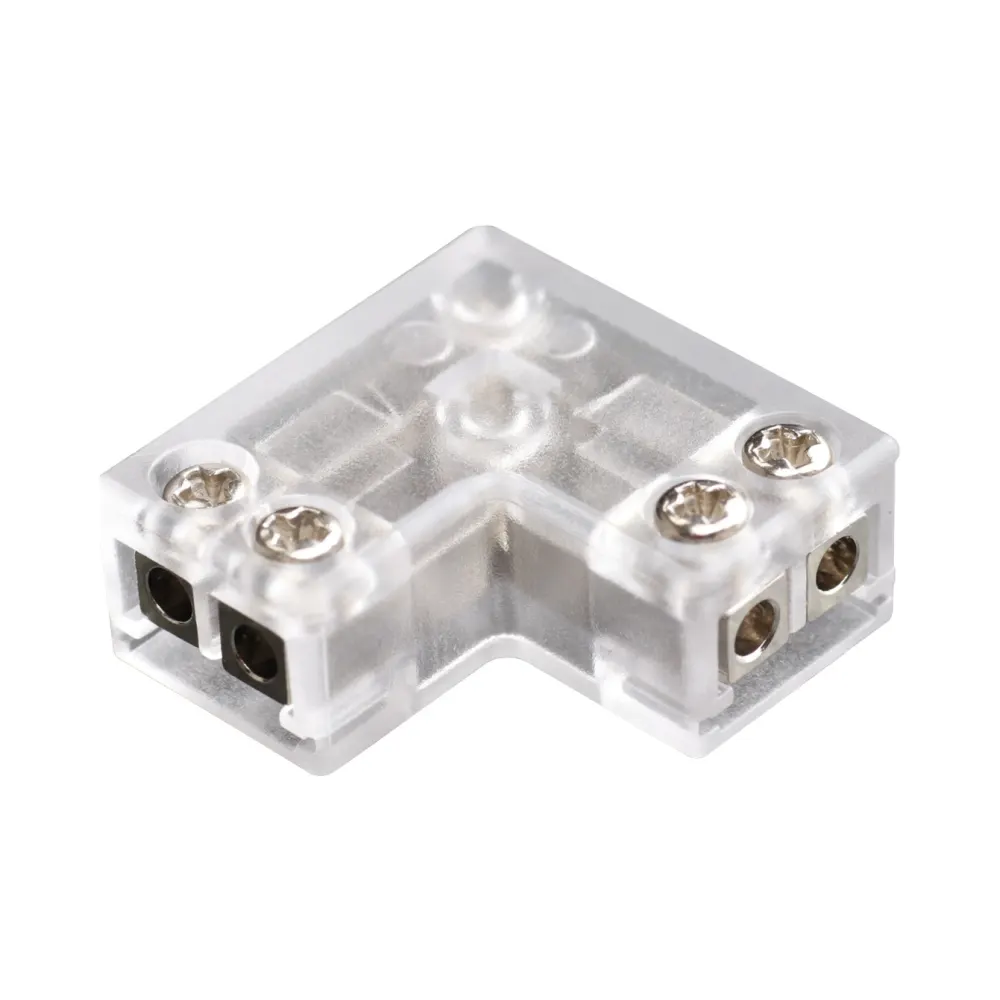

ALL LED UniCube 90° ‘L’ Solderless Universal LED Strip Connector
The ALL LED UniCube 90° ‘L’ Solderless Universal LED Strip Connector has been developed with installers to deliver an elegant, fast, and reliable way to connect LED strips. By combining the connector and coupler into one, UniCube sets a new standard for simplicity and performance.
Key Features – ALL LED UniCube 90° Solderless LED Connector
- Effortlessly supports precise 90° bends
- Innovative 3-in-1 universal design

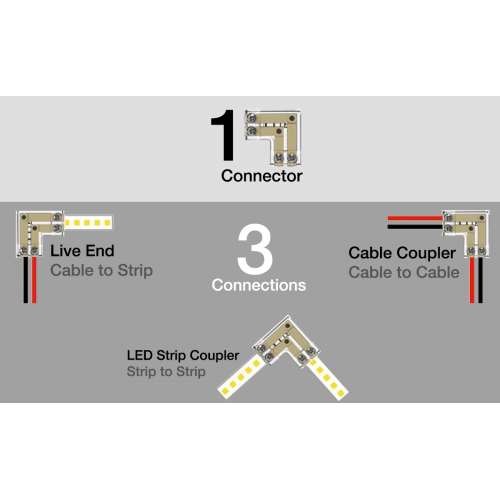

- Enables quick connection: strip-to-strip, cable-to-strip, and cable-to-cable
- Fits neatly into the APA004 aluminium profile
- Faster than soldering – record installation time
- Requires only a screwdriver
- Manufactured from clear optical polycarbonate for maximum light transmission
UniCube Connector Compatibility
- Suitable for 12V & 24V LED tape
- 8A maximum capacity (96W @ 12V / 192W @ 24V)
- Works with most 8mm & 10mm single colour LED strip PCBs
- Compatible with ALL LED 5W, 10W, 12W, and 15W LED strip ranges:
- AST005 (5W/m)
- AST010 (10W/m)
- AST012 (12W/m)
- AST015 (15W/m)
- Fits into APA004 Aluminium Profile (ASTC/UNI)
Cable Compatibility
- 0.75mm² – 2.5mm² flexible cable
- 1.0mm² – 2.5mm² solid cable
Technical Details
- Material: Polycarbonate
- Circuit-board suitability: 8mm / 10mm
- Strip compatibility: AST005, AST010, AST012, AST015
- Recommended cable: 0.75mm² – 2.5mm² flexible / 1mm² – 2.5mm² solid core
- IP rating: IP20
