32A PV AC Consumer Unit

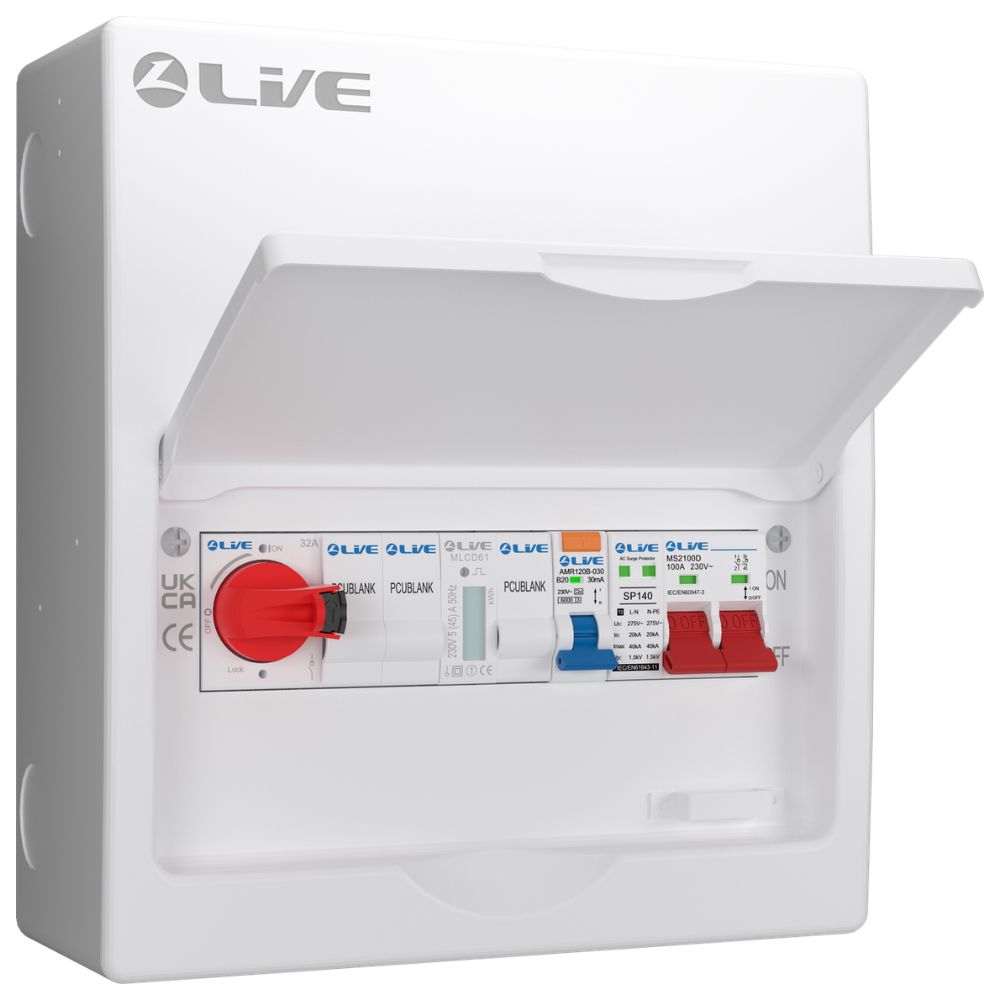

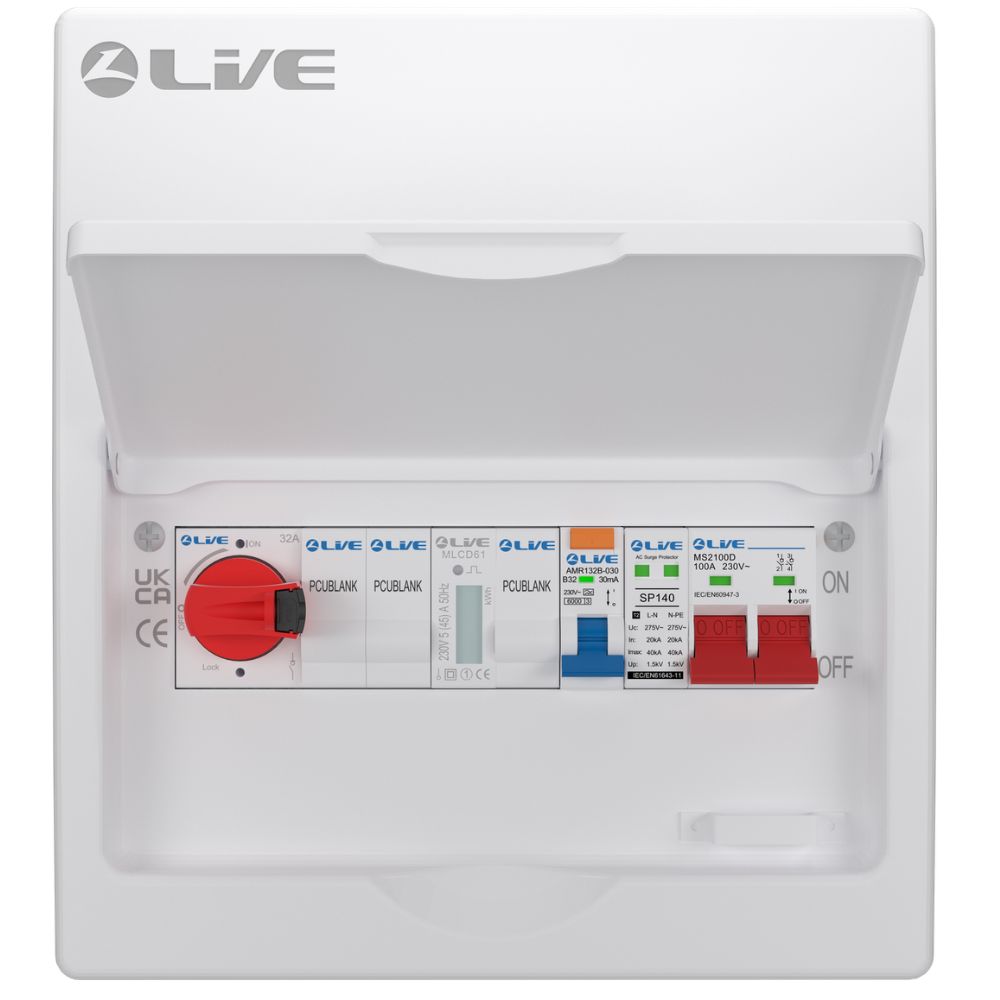

The Live Electrical LSMC1032-R32 32A PV AC Consumer Unit is a fully assembled metal board developed for photovoltaic AC installations. It brings together protection, isolation, switching, surge protection and energy measurement in a single compact enclosure.
At the heart of the board is a 32A AMR132B-030 Type A bidirectional RCBO, accompanied by a 100A DP main switch, SP140 Type 2 SPD, MLCD61 single-phase energy meter and IS332DBR 32A AC isolation switch.
32A AMR Type A RCBO
The LSMC1032-R32 uses the Live Electrical AMR132B-030 RCBO, rated at 32A with a 30mA residual current rating.
It provides a B curve tripping characteristic, 6kA breaking capacity and bidirectional operation. The 1P+N arrangement includes a switched neutral and is manufactured to BS EN 61009-1.
100A Main Switching
The board incorporates the Live Electrical MS2100D 100A double-pole main switch. Rated for 230V operation, it provides a substantial main switching point within the PV AC consumer unit.
The MS2100D accepts cables up to 50mm² and has a specified terminal tightening torque of 2.5Nm.
Type 2 AC Surge Protection
Surge protection is provided by the Live Electrical SP140 1P+N/1 Type 2 SPD.
The device is rated at 20kA nominal discharge current and 40kA maximum discharge current, with a short-circuit current rating of 25kA, maximum continuous operating voltage of 275V AC and voltage protection level of 1.5kV.
Integrated Energy Measurement
The Live Electrical MLCD61 single-phase meter is incorporated directly into the board to provide local kWh measurement of the PV AC circuit.
Operating at 230V AC and 50/60Hz, the meter has a 5A base current, maximum current of 45A and a 6+1 digit display capable of displaying up to 999999.9kWh.
32A Local AC Isolation
A Live Electrical IS332DBR AC isolation switch provides a dedicated 32A local isolation point within the enclosure.
The device is rated for AC-21, AC-22 and AC-23 utilisation categories and has a mechanical endurance of 100,000 operations. Terminal capacity is 10mm² with a specified tightening torque of 1.5Nm.
Steel IP40 Enclosure
The fully enclosed steel body has a drop-down metal lid and an IP40 protection rating. The enclosure is finished in white RAL9010 polyester powder coating for a clean professional appearance.
Installation is assisted by a raised DIN rail and a flexible internal arrangement. Multiple circular knockouts are provided for cable entry, including 25mm and 32mm top and bottom entries and 32mm side and rear knockouts.
Key Features
- Metal PV AC consumer unit for photovoltaic installations
- Live Electrical LSMC1032-R32
- 230V AC operating voltage
- 32A AMR132B-030 RCBO
- Type A residual current protection
- 30mA sensitivity
- B curve characteristic
- 6kA breaking capacity
- Bidirectional operation
- 1P+N switched neutral
- 100A DP MS2100D main switch
- 32A IS332DBR AC isolation switch
- MLCD61 DIN rail energy meter
- 45A maximum meter current
- SP140 1P+N/1 Type 2 SPD
- 20kA nominal discharge current
- 40kA maximum discharge current
- IP40 metal construction
- RAL9010 white powder-coated finish
- Raised DIN rail
- Neutral and earth terminals included
- Multiple cable-entry knockouts
Technical Details
- Brand: Live Electrical
- Product Code: LSMC1032-R32
- Product Type: Metal PV AC Consumer Unit
- Operating Voltage: 230V AC
- RCBO Part Number: AMR132B-030
- RCBO Current Rating: 32A
- RCBO Type: Type A
- RCBO Characteristic: B Curve
- RCBO Residual Current: 30mA
- RCBO Breaking Capacity: 6kA
- RCBO Standard: BS EN 61009-1
- Main Switch: MS2100D
- Main Switch Rating: 100A
- Main Switch Poles: Double Pole
- AC Isolation Switch: IS332DBR
- AC Isolation Rating: 32A
- Energy Meter: MLCD61
- Energy Meter Maximum Current: 45A
- Energy Meter Standard: EN 62053-21
- Surge Protection: SP140 1P+N/1
- SPD Type: Type 2
- Nominal Discharge Current: 20kA
- Maximum Discharge Current: 40kA
- Protection Degree: IP40
- Enclosure Material: Steel
- Colour: RAL9010 White
- Dimensions: 244mm W x 270mm H x 110mm D
Need the 20A Version?
For a lower-rated PV circuit, see the Live Electrical LSMC1032-R20 20A PV AC Consumer Unit.
Complete PV AC Board
The 32A PV AC Consumer Unit gives installers an integrated arrangement rather than requiring individual enclosures for switching, RCBO protection, surge protection, energy measurement and AC isolation. Its steel IP40 construction and pre-configured Live Electrical components make it a practical dedicated solution for PV AC installations.
