️RAL9016 White Shallow Surface LED Profile with Opal Diffuser
ALL LED APA001/WH 2m Shallow Surface Profile

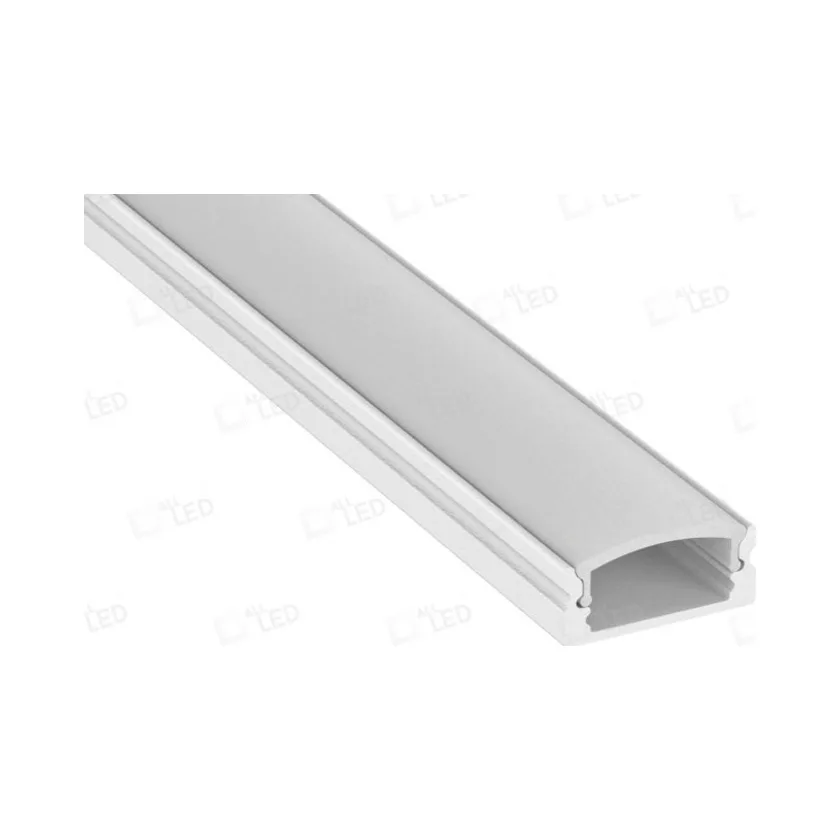

Finish LED strip installations neatly with the ALL LED APA001/WH Profile. This 2 metre shallow surface aluminium profile is designed for use with the ALL LED strip range and comes in a clean RAL9016 painted white finish for a smart, discreet result.
Made from extruded 6063 aircraft-grade aluminium, the profile is lightweight, strong and easy to handle on site. Its shallow surface design makes it ideal for cabinet lighting, shelving, counters, display lighting, furniture lighting and tidy linear LED runs.
The profile is supplied complete with a click-in opal polycarbonate diffuser, helping soften LED strip output while protecting the tape inside the channel. It is straightforward to cut and install, with end caps and brackets included for a professional finish.
Key Features – ALL LED APA001/WH Profile
- 2 metre shallow surface LED profile for ALL LED strip lighting
- RAL9016 painted white finish for a clean, discreet installation
- Supplied with a click-in opal polycarbonate diffuser
- Made from extruded 6063 aircraft-grade aluminium
- High strength material while remaining lightweight and easy to cut
- Ideal for cabinet lighting, shelving, display lighting, furniture lighting and feature lighting
- Fixing kit included with end caps and brackets
- IP20 rated for indoor installations
- Supplied with a 2 year guarantee
Technical Overview – ALL LED APA001/WH Profile
- SKU: APA001/WH
- Product type: Shallow surface aluminium LED profile
- Profile range: APA001 / Profile1
- Length: 2 metres
- Finish: RAL9016 painted white / polar white
- Material: Aircraft aluminium
- Aluminium type: Extruded 6063 aircraft-grade aluminium
- Diffuser material: Polycarbonate
- Diffuser type: Click-in opal polycarbonate diffuser
- Ingress protection: IP20
- Profile dimensions: 18mm wide x 7mm high
- Internal channel width: 12mm
- Compatibility: Designed for use with the ALL LED strip range
- Installation: Surface mounted shallow profile installation
- Cutting: Can be cut to suit installation requirements
- Included accessories: 2 open end caps, 2 closed end caps and 4 brackets
- Guarantee: 2 years
Why Choose This Product?
Choose the ALL LED APA001/WH Profile when you need a neat, shallow and professional LED strip housing in a clean white finish. Its strong aircraft-grade aluminium body, opal diffuser and included fixing accessories make it ideal for tidy indoor LED strip installations.
About ALL LED
ALL LED supplies professional lighting products and accessories for domestic, commercial and architectural projects. Their LED strip profiles are designed to help installers achieve neat, durable and reliable lighting finishes across a wide range of applications.
Guarantee & Compliance
The ALL LED APA001/WH Profile is IP20 rated and supplied with a 2 year guarantee. Install in accordance with manufacturer guidance and ensure the selected LED strip is suitable for the profile, diffuser and indoor installation environment.
