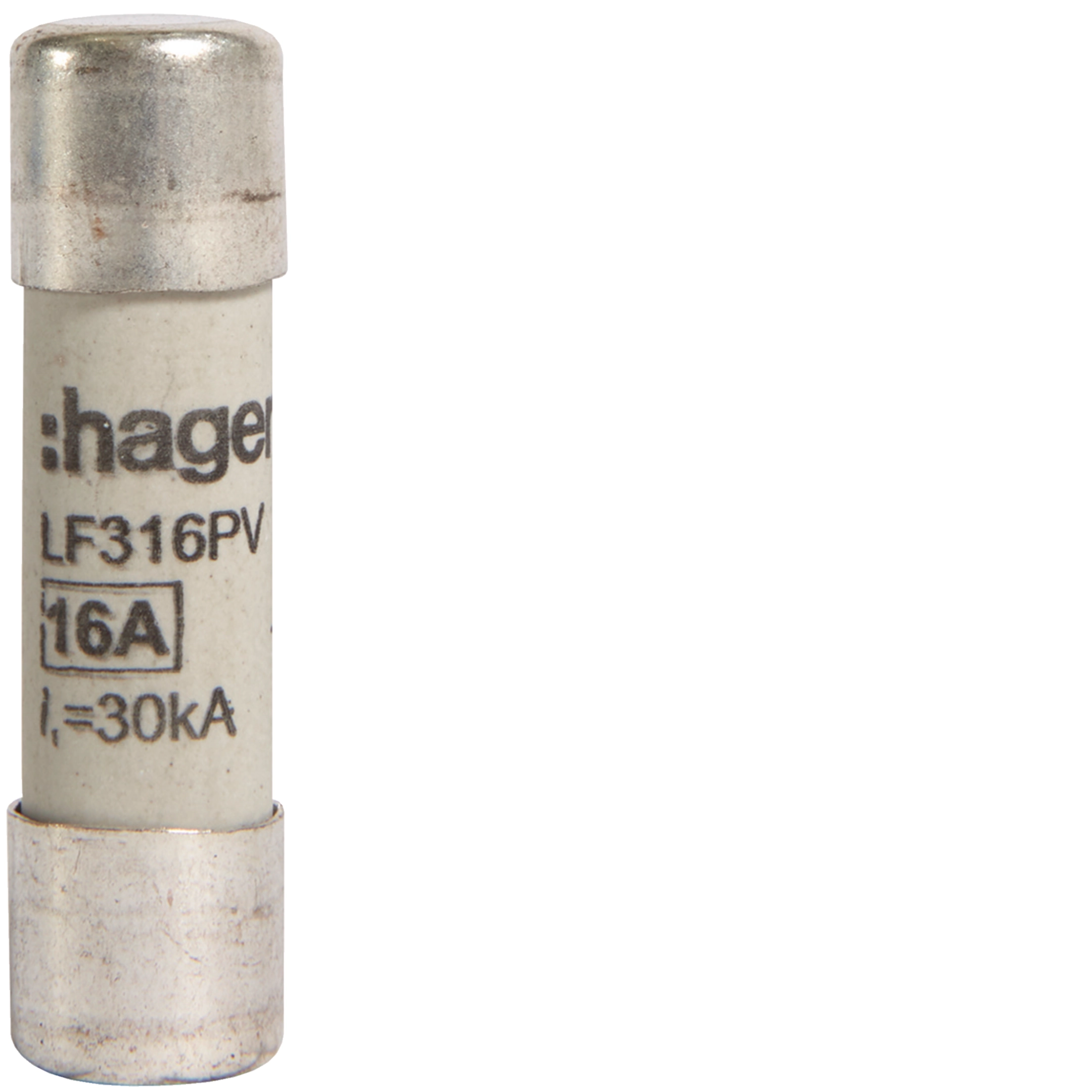

16A 1000V DC PV Fuse 10x38mm
The 16A 1000V DC PV Fuse 10x38mm from Hager offers gPV protection for photovoltaic DC circuits and fits compatible 10x38mm cylindrical fuse carriers. The Hager LF316PV is rated at 16A and 1000V DC.
With a nominal cylindrical size of 10x38mm, this PV fuse link is designed for use with compatible fuse carriers in high-voltage photovoltaic DC systems.
Key Features
- Brand: Hager
- Product code: LF316PV
- Product type: PV fuse link
- Fuse characteristic: gPV
- Rated current: 16A
- Nominal voltage: 1000V DC
- Fuse size: 10.3 x 38mm
- Nominal format: 10 x 38mm
- Breaking capacity: 30kA
- Power dissipation at rated current: 2.70W
- Voltage type: DC
gPV Solar Fuse Protection
The gPV fuse characteristic makes this fuse link suitable for photovoltaic circuit protection within compatible solar DC equipment.
1000V DC Rating
The 16A 1000V DC PV Fuse 10x38mm is rated for 1000V DC operation and should be installed only in equipment and fuse carriers suitable for the specified DC voltage and 10x38mm fuse format.
Technical Specifications
| Manufacturer | Hager |
| Product Code | LF316PV |
| Fuse Characteristic | gPV |
| Rated Current | 16A |
| Nominal Voltage | 1000V DC |
| Fuse Size | 10.3 x 38mm |
| Breaking Capacity | 30kA |
| Power Dissipation at Rated Current | 2.70W |
| Voltage Type | DC |
Hager LF316PV PV Fuse Link
The Hager LF316PV provides a compact solution for solar PV installations requiring a 16A gPV fuse link. Always select the fuse rating to match the circuit design and use it with a compatible 10x38mm fuse carrier.
