15A 1000V DC PV Fuse 10x38mm
The 15A 1000V DC PV Fuse 10x38mm from Hager is designed for solar PV applications requiring dependable DC fuse protection in a 10x38mm format. The Hager LF315PV is rated at 15A and 1000V DC.
With a nominal cylindrical size of 10x38mm, this PV fuse link is designed for use with compatible fuse carriers in high-voltage photovoltaic DC systems.
Key Features
- Brand: Hager
- Product code: LF315PV
- Product type: PV fuse link
- Fuse characteristic: gPV
- Rated current: 15A
- Nominal voltage: 1000V DC
- Fuse size: 10.3 x 38mm
- Nominal format: 10 x 38mm
- Breaking capacity: 30kA
- Power dissipation at rated current: 2.44W
- Voltage type: DC
gPV Solar Fuse Protection
Its gPV characteristic is intended for photovoltaic circuit protection, helping protect DC wiring and equipment against overcurrent conditions when correctly selected for the installation.
1000V DC Rating
The 15A 1000V DC PV Fuse 10x38mm is rated for 1000V DC operation and should be installed only in equipment and fuse carriers suitable for the specified DC voltage and 10x38mm fuse format.
Technical Specifications
| Manufacturer | Hager |
| Product Code | LF315PV |
| Fuse Characteristic | gPV |
| Rated Current | 15A |
| Nominal Voltage | 1000V DC |
| Fuse Size | 10.3 x 38mm |
| Breaking Capacity | 30kA |
| Power Dissipation at Rated Current | 2.44W |
| Voltage Type | DC |

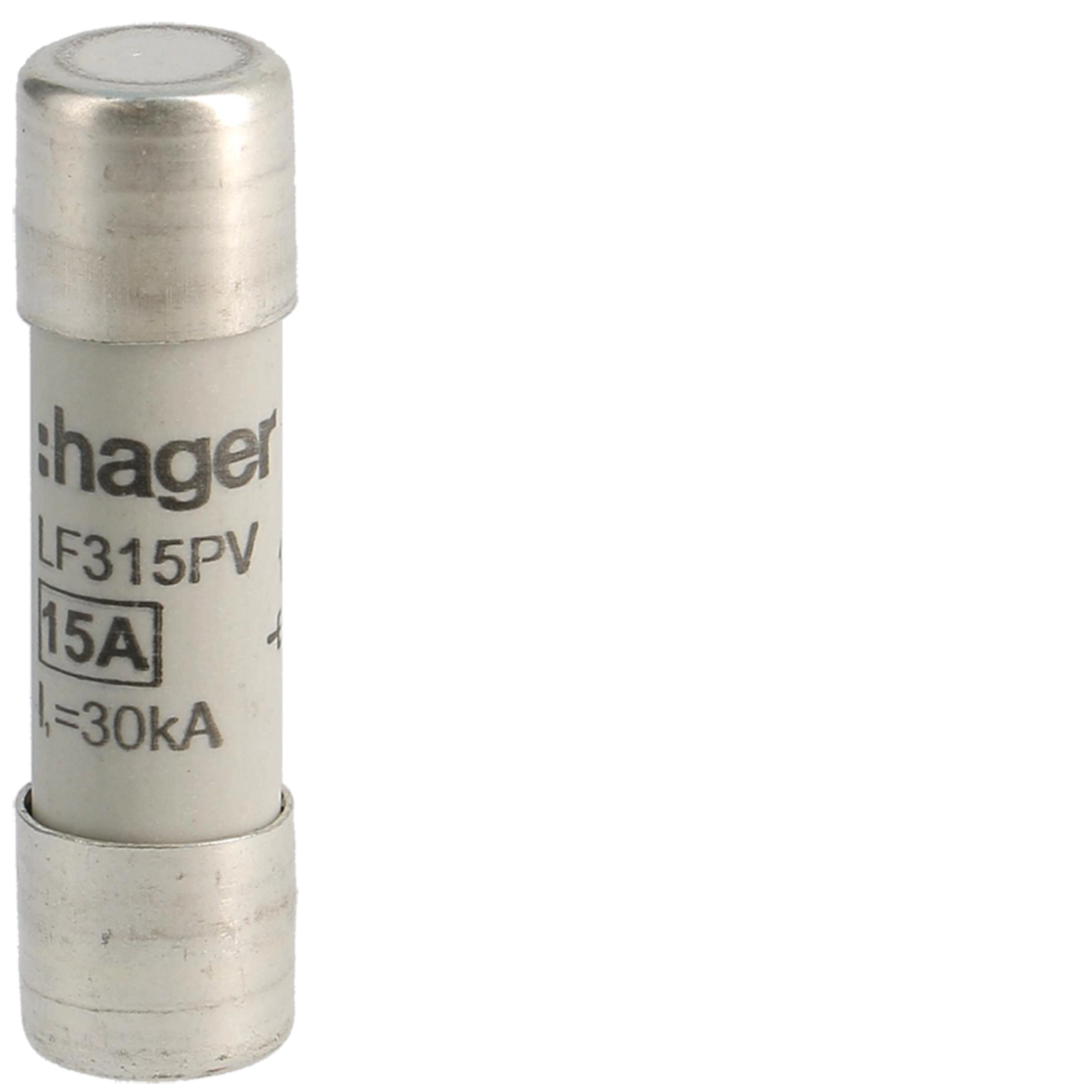

Hager LF315PV PV Fuse Link
The Hager LF315PV provides a compact solution for solar PV installations requiring a 15A gPV fuse link. Always select the fuse rating to match the circuit design and use it with a compatible 10x38mm fuse carrier.
