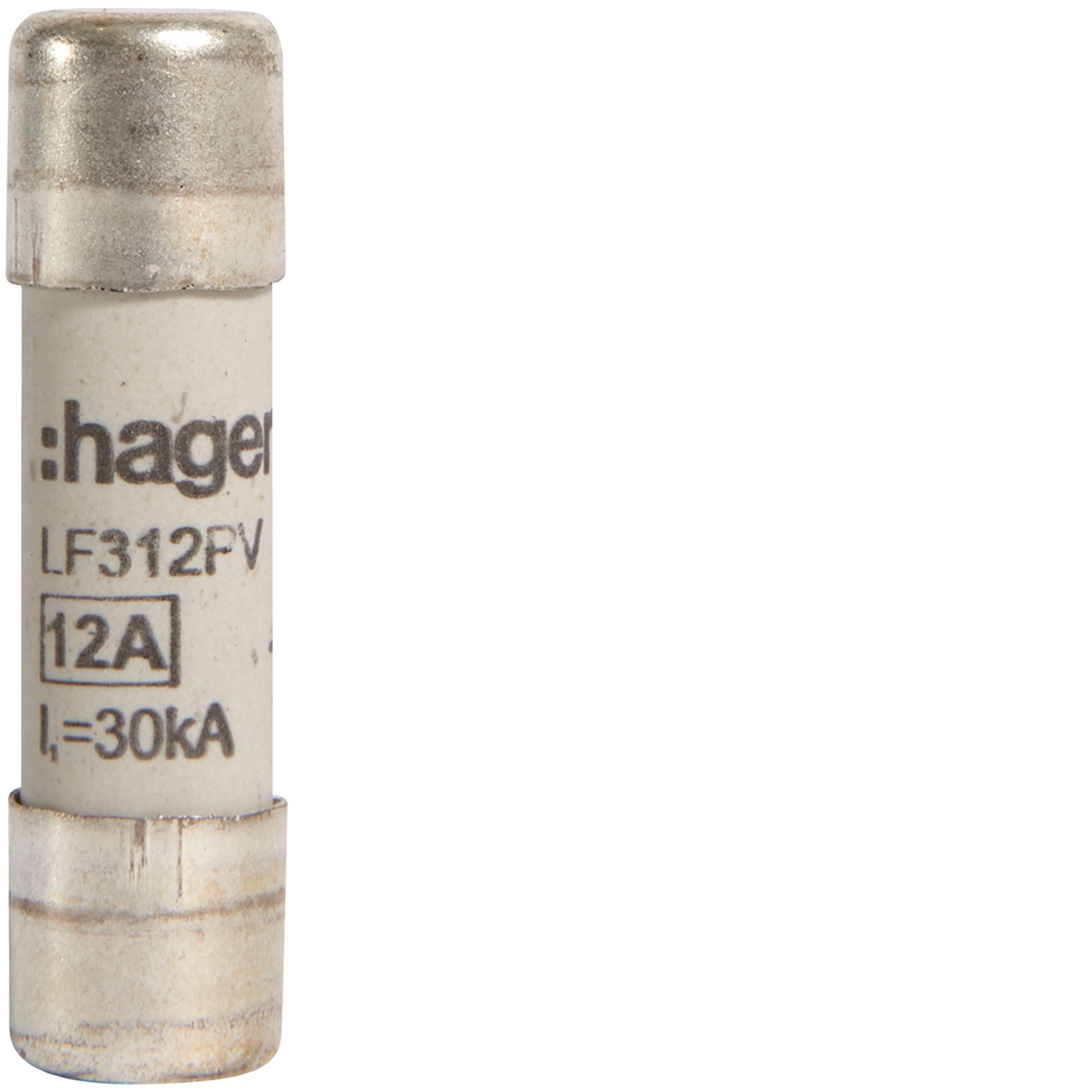

12A 1000V DC PV Fuse 10x38mm
The 12A 1000V DC PV Fuse 10x38mm from Hager provides dedicated overcurrent protection for compatible photovoltaic DC circuits in a compact cylindrical format. The Hager LF312PV is rated at 12A and 1000V DC.
With a nominal cylindrical size of 10x38mm, this PV fuse link is designed for use with compatible fuse carriers in high-voltage photovoltaic DC systems.
Key Features
- Brand: Hager
- Product code: LF312PV
- Product type: PV fuse link
- Fuse characteristic: gPV
- Rated current: 12A
- Nominal voltage: 1000V DC
- Fuse size: 10.3 x 38mm
- Nominal format: 10 x 38mm
- Breaking capacity: 30kA
- Power dissipation at rated current: 2.60W
- Voltage type: DC
gPV Solar Fuse Protection
Designed specifically for PV use, the gPV characteristic supports reliable overcurrent protection in compatible solar DC circuits.
1000V DC Rating
The 12A 1000V DC PV Fuse 10x38mm is rated for 1000V DC operation and should be installed only in equipment and fuse carriers suitable for the specified DC voltage and 10x38mm fuse format.
Technical Specifications
| Manufacturer | Hager |
| Product Code | LF312PV |
| Fuse Characteristic | gPV |
| Rated Current | 12A |
| Nominal Voltage | 1000V DC |
| Fuse Size | 10.3 x 38mm |
| Breaking Capacity | 30kA |
| Power Dissipation at Rated Current | 2.60W |
| Voltage Type | DC |

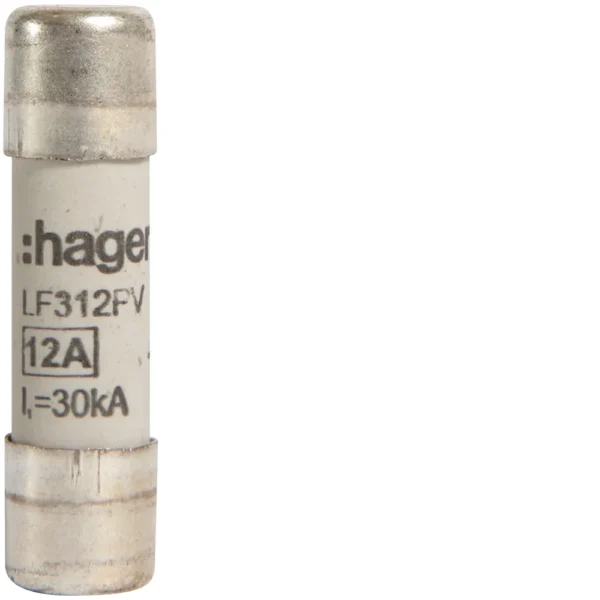

Hager LF312PV PV Fuse Link
The Hager LF312PV provides a compact solution for solar PV installations requiring a 12A gPV fuse link. Always select the fuse rating to match the circuit design and use it with a compatible 10x38mm fuse carrier.
