Uninsulated Flat Reducing Pins

Discover uninsulated flat reducing pins at Electrical4Less. These pins are perfect for connecting wires of different sizes, providing secure and reliable electrical connections. Perfect for professional electricians, our uninsulated flat reducing pins offer dependable solutions for your wiring needs. Shop now at Electrical4Less for top-quality uninsulated flat reducing pins.

Showing all 7 results

Flat Copper 10mm Reducing Pin – Pack of 1

12 In Stock
More available within:
Usually 1 - 3 Working Days
Read More
SKU: FRP10
£1.25

Flat Copper 16mm Reducing Pin – Pack of 1

10 In Stock
More available within:
Usually 1 - 3 Working Days
Read More
SKU: FRP16
£1.50

Flat Copper 25mm Reducing Pin – Pack of 1

8 In Stock
More available within:
Usually 1 - 3 Working Days
Read More
SKU: FRP25
£1.75

Flat Copper 35mm Reducing Pin – Pack of 1

2 In Stock
More available within:
Usually 1 - 3 Working Days
Read More
SKU: FRP35
£1.85

Flat Copper 50mm Reducing Pin – Pack of 1

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: FRP50
£2.50

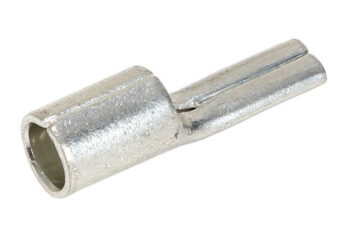

Flat Copper 70mm Reducing Pin – Pack of 1

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: FRP70
£7.50

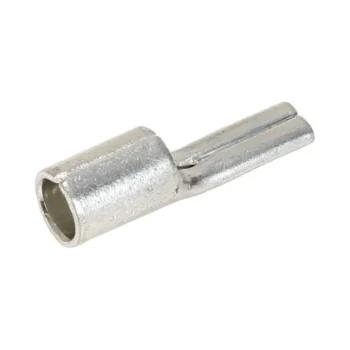

Flat Copper 95mm Reducing Pin – Pack of 1

Available to Order
Estimated Lead Time:
Usually 1 - 3 Working Days
Read More
SKU: FRP95
£12.50

Showing all 7 results

Uninsulated flat reducing pins, also known as uninsulated flat reducing connectors, are electrical components used in electrical installations to connect conductors or cables of different sizes or cross-sectional shapes (typically flat conductors). These pins are typically made of metal, such as copper or aluminum, and they serve the purpose of joining two conductors with unequal sizes or shapes, ensuring a secure electrical connection. Uninsulated flat reducing pins are not covered with insulating material, so they should be used in applications where no electrical insulation is required between the connected conductors.

In the context of BS 7671 (the 18th Edition of the Wiring Regulations), uninsulated flat reducing pins are not explicitly addressed by the standard. However, they may be used in electrical installations where they are deemed appropriate and safe. The key considerations when using uninsulated flat reducing pins in electrical installations include:

  1. Compatibility: Uninsulated flat reducing pins should be selected based on the compatibility of the materials, conductor sizes, and shapes being connected. The pins should be made of a material suitable for the application and should be suitable for the specific conductors involved.
  2. Proper Termination: Conductors should be properly terminated in uninsulated flat reducing pins following industry best practices and the manufacturer’s instructions. This includes ensuring that the conductors are securely clamped or compressed to create a reliable electrical connection.
  3. Mechanical Protection: Depending on the installation environment and local requirements, uninsulated flat reducing pins may need to be protected against mechanical damage. This can include the use of conduit, conduit fittings, or other protective measures.
  4. Insulation Requirements: It’s essential to assess whether the application requires electrical insulation between the conductors being connected. If insulation is required, insulated connectors or suitable insulating materials should be used instead of uninsulated flat reducing pins.
  5. Marking and Identification: Uninsulated flat reducing pins should be clearly marked and identified to indicate their purpose and connection points. This facilitates maintenance, testing, and inspection.
  6. Compliance with Local Regulations: While uninsulated flat reducing pins are not specifically addressed in BS 7671, it’s important to comply with any local or regional regulations and codes that may apply to their use.
  7. Electrical Safety: When using uninsulated flat reducing pins or any other electrical components in an installation, safety is paramount. Ensure that the installation is carried out by qualified electricians or electrical engineers who can assess the specific requirements of the installation and ensure that it complies with all applicable standards and regulations.

As with uninsulated reducing pins, uninsulated flat reducing pins should be used judiciously and in accordance with recognized electrical practices and safety guidelines. Depending on the application and the need for electrical insulation, insulated connectors or other suitable components may be a safer choice. Consulting with a qualified professional is advisable to ensure the installation meets safety and regulatory requirements
