Circuit Protection

Circuit Breakers: Circuit breakers are essential devices for protecting electrical circuits. BS 7671 specifies requirements for the selection and installation of circuit breakers. They come in various types, including:
- Miniature Circuit Breakers (MCBs): MCBs are commonly used to protect individual circuits. They trip when there’s an overload or a short circuit.
- Residual Current Devices (RCDs): RCDs are designed to protect against electric shock. They disconnect the circuit if they detect an imbalance in current, indicating a fault.
- Combination RCD/MCB Devices: These devices combine the functions of both MCBs and RCDs in a single unit. They are often used for socket outlets.
Fuses: While less common in modern installations, fuses may still be used for circuit protection. They work by melting when there’s an excess current, breaking the circuit.
Overcurrent Protection: BS 7671 requires that circuits are protected against overcurrents. This is typically achieved through the use of circuit breakers, fuses, or other protective devices.
Earthing and Bonding: Proper earthing and bonding are essential for safety. This ensures that in the event of a fault, the fault current is safely directed away from people and property.
Surge Protection: Surge protection devices may be required to protect against voltage surges or lightning strikes, especially for sensitive electronic equipment.
Arc Fault Detection: In certain installations, arc fault detection devices may be used to detect and disconnect circuits in the presence of dangerous arc faults.
Circuit Isolation: BS 7671 also specifies requirements for circuit isolation devices such as switches and isolators.
Cable Sizing: The standard provides guidelines for selecting the correct cable size to ensure that the cables can safely carry the intended load without overheating.
Circuit Labels and Documentation: Proper labeling and documentation of circuits are important for maintenance and safety. BS 7671 outlines requirements for labeling and record-keeping.

It’s important to note that regulations and standards may be updated over time, so it’s essential to consult the latest version of BS 7671 and any local regulations or codes that may apply to your specific location or type of installation. Additionally, electrical work should be carried out by qualified and competent electricians to ensure compliance with safety standards.

Circuit Protection

Circuit Protection by Brand (1496)

EV Circuit Protection (110)

Consumer Units (278)

DIN Rail Enclosures (49)

Three Phase Distribution Boards (100)

Circuit Protection Devices (795)

Electrical Isolators & Switches (110)

Switch Gear (209)

Meter Boards & Installation Panels (4)

SPD Surge Protection Devices (109)

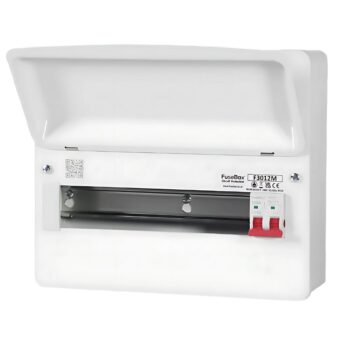

FuseBox F3012M 12 Way RCBO Consumer Unit

FuseBox F3016M 16 Way Consumer Unit

FuseBox F3022M 22 Way Consumer Unit

FuseBox F3024M 24 Way Double Bank RCBO Consumer Unit

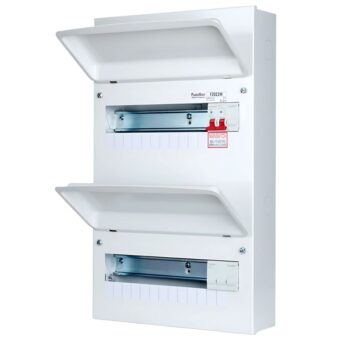

FuseBox F3032M 32 Way Double Bank RCBO Consumer Unit

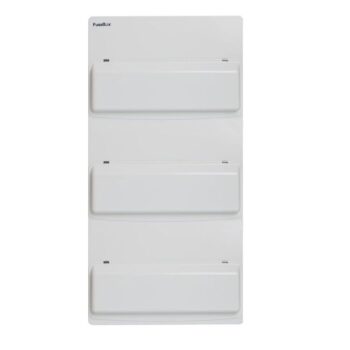

FuseBox F3048M 48 Way Triple Row RCBO Consumer Unit
