FuseBox TPN15FBX Fusebox TPN15FBX 15 Way 125A Three Phase Board 2

Fusebox Three Phase Boards – Full Breakdown

In-Depth Guide to Fusebox Three Phase Boards and Fusebox TPN Boards

In the world of electrical distribution, Fusebox Three Phase Boards stand out as practical, innovative solution designed for a range of applications. Whether for commercial, industrial, or select domestic installations, Fusebox’s advanced products redefine circuit protection and electrical distribution systems. Known for their robust construction, reliable safety features, and adaptability, these boards ensure seamless power management while providing excellent protection.

In this guide, we’ll take a closer look at the key features of Fusebox Three Phase Boards. Including the configurations available, safety enhancements, and the range of accessories that ensure seamless integration.


Understanding Fusebox Three Phase Boards

Fusebox Three Phase Boards are electrical distribution boards specifically designed to manage three-phase electrical systems. A three-phase system distributes electricity using three alternating currents, making it far more efficient for high-demand environments than a single-phase system. These boards are especially beneficial in commercial and industrial settings where power distribution needs to be both reliable and flexible.

Key Features of Fusebox Three Phase Boards

  1. 125A 4-Pole Main Switch: Each Fusebox Three Phase Board comes with a standard 125A 4-pole main switch. This robust switch provides excellent power control, ensuring safe and reliable disconnection of electrical circuits when necessary. The switch is engineered for high performance and is suitable for use in heavy-duty environments where large amounts of electrical power are handled.
  2. Built-in Surge Protection.: Surge protection is a critical component of any modern distribution system, particularly in environments prone to power surges. Fusebox Three Phase Boards come equipped with a Type 2 Surge Protection Device (SPD), factory-fitted to protect sensitive equipment from voltage spikes caused by lightning strikes or power surges. This ensures that your electrical systems remain safeguarded, reducing the risk of damage to appliances and reducing costly downtime.
  3. Durable Construction: The enclosures of Fusebox Three Phase Boards are built from 1.2mm galvanized steel, providing exceptional durability and resilience. This construction ensures that the boards are capable of withstanding harsh environmental conditions. Making them ideal for use in industrial and commercial settings. Additionally, the enclosures are coated with a high-quality RAL 9001 epoxy powder finish, enhancing their resistance to corrosion and wear.
  4. Versatile Configuration: The Fusebox Three Phase Boards are available in multiple sizes, ranging from 4 to 16 usable ways. This allows for flexibility depending on the installation requirements. The versatility extends to accommodating various Fusebox 6kA devices without the need for any modifications, making installation faster and simpler.
  5. Coin Slot Door Lock: For enhanced security, each board is fitted with a convenient coin slot door lock. This feature ensures that only authorized personnel have access to the board, adding an extra layer of protection.
Fusebox Three Phase TPN Boards

Overview of Fusebox TPN Boards

Fusebox TPN (Triple Pole and Neutral) Boards are an integral part of the Fusebox three-phase distribution range. These boards offer multiple configurations, ensuring that electrical contractors have the flexibility to choose the ideal setup based on the project. Whether you need boards with or without surge protection, Fusebox TPN Boards deliver reliable power distribution and protection in various settings.

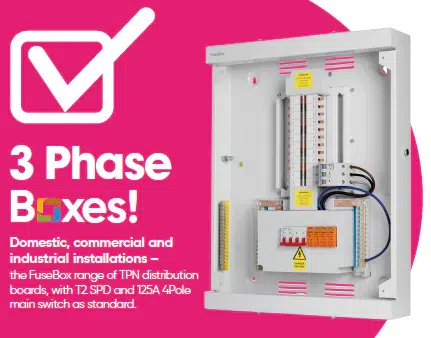

  • Fusebox TPN04FB: A 4-way TPN board with a 125A 4-pole main switch. Dimensions: Height 542mm x Width 500mm x Depth 113mm.
  • Fusebox TPN08FB: An 8-way TPN board featuring a 125A 4-pole main switch. Dimensions: Height 642mm x Width 500mm x Depth 113mm.
  • Fusebox TPN12FB: A 12-way TPN board, complete with a 125A 4-pole main switch. Dimensions: Height 812mm x Width 500mm x Depth 113mm.
  • Fusebox TPN16FB: A 16-way TPN board with a 125A 4-pole main switch. Dimensions: Height 992mm x Width 500mm x Depth 113mm.

Surge Protection Models:

For installations that require enhanced surge protection, Fusebox offers TPN boards fitted with a Type 2 Surge Protection Device (SPD). These models include:

  • Fusebox TPN03FBX: A 3-way TPN board with a 125A 4-pole main switch and SPD. Dimensions: Height 542mm x Width 500mm x Depth 113mm.
  • Fusebox TPN07FBX: A 7-way TPN board featuring a 125A 4-pole main switch and SPD. Dimensions: Height 642mm x Width 500mm x Depth 113mm.
  • Fusebox TPN11FBX: An 11-way TPN board equipped with SPD. Dimensions: Height 812mm x Width 500mm x Depth 113mm.
  • Fusebox TPN15FBX: A 15-way TPN board with built-in SPD. Dimensions: Height 992mm x Width 500mm x Depth 113mm.

These configurations offer flexibility for electrical contractors, ensuring that power distribution systems can meet both standard and high-demand applications.


Safety Enhancements: MCBs and RCBOs

Safety is at the core of Fusebox’s product design. Their three-phase distribution systems are compatible with a wide range of safety devices, including Miniature Circuit Breakers (MCBs) and Residual Current Breaker with Overload (RCBOs).

  • Fusebox MCBs are available in 1-Pole, 2-Pole, and 3-Pole varieties, and are designed to provide precise protection against short circuits and overloads. These are ideal for a range of electrical systems, offering enhanced safety for your circuits.
  • Fusebox Type A 10kA 30mA RCBOs offer additional protection by combining the functions of a residual current device and an overcurrent protective device. This helps prevent electrical hazards such as earth faults, short circuits, and overloading, ensuring that both equipment and users are protected from electrical shocks and fires.

Accessories for Seamless Integration

Fusebox provides a variety of accessories to ensure that their Three Phase and TPN Boards integrate seamlessly into any installation. These include TPN Busbar End Caps (ABEC), TPN Single Phase Forks (TPNSPLFB), and additional accessories that enhance the system’s safety, flexibility, and performance.


Conclusion: Elevating Electrical Safety and Performance

With the Fusebox Three Phase Boards and Fusebox TPN Boards, electrical professionals can trust that they are getting state-of-the-art solutions for managing power distribution in demanding environments. Whether you need a standard board or one equipped with advanced surge protection, Fusebox’s range provides the flexibility and safety required for today’s modern installations.

The forthcoming release of Fusebox’s expanded Three Phase distribution range promises to further revolutionize electrical systems, offering enhanced durability, ease of installation, and peace of mind with built-in safety features. Fusebox is not just offering products but providing comprehensive solutions to meet the growing needs of the commercial and industrial sectors.

For those seeking robust electrical solutions that don’t compromise on safety or performance, Fusebox’s Three Phase Boards and TPN Boards are the ideal choice. See the full range here!

Fusebox Three Phase Boards
