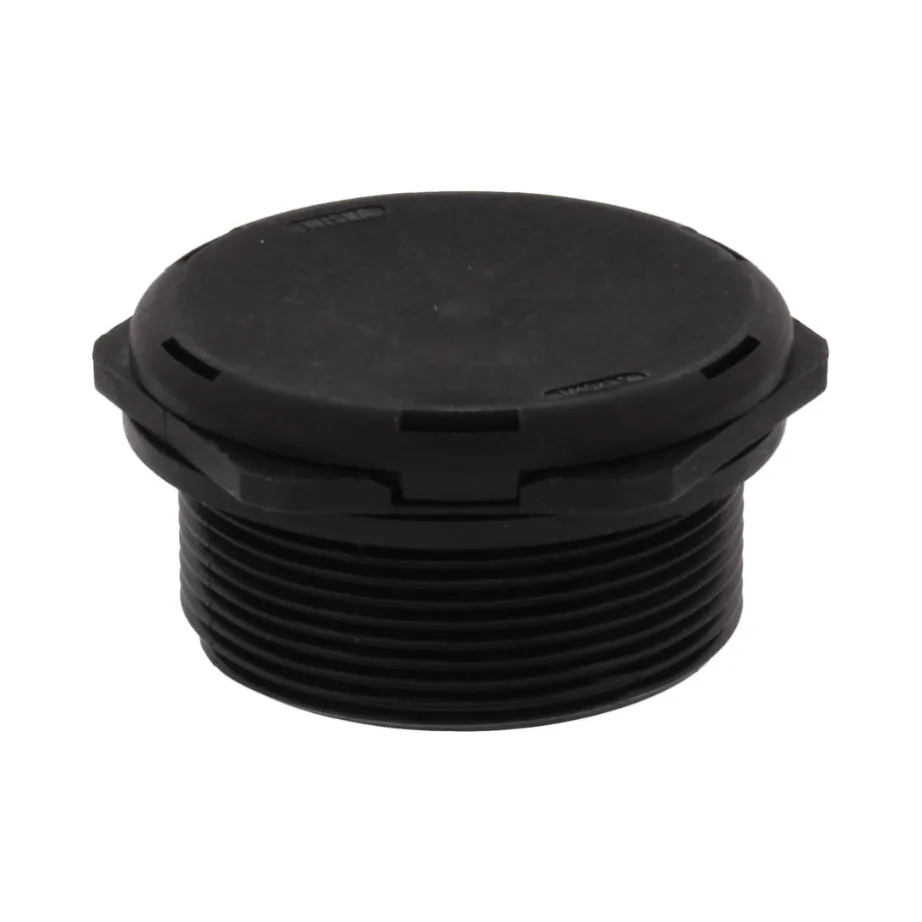

Wiska VentPLUG EVPS-L 40 Polyamide Pressure Compensation Unit – Black
Wiska VentPLUG
Being a pioneer in the development of breathable cable glands, WISKA today is an expert for breathable components avoiding condensation.
The VentPLUG is used when a cable gland with an additional pressure equalisation unit is required to vent the enclosure.
Pressure equalisation units from WISKA are now also available in thread sizes M 20 and M 40, in addition to M 12. Both feature a flat, space-saving design to enable flexible usage. Thanks to an improved membrane, the air flow rate of the new VentPLUG in the sizes M 20 and M 40 has more than doubled. The high air flow version even achieves a 2.5 times higher value.
- Effective pressure equalisation
- Protection against condensation
- Protection against contaminants
- High operational safety
- Increased profitability
- Ideal for roughest conditions
| Material cable gland | Polyamide |
|---|---|
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 660 LH |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |

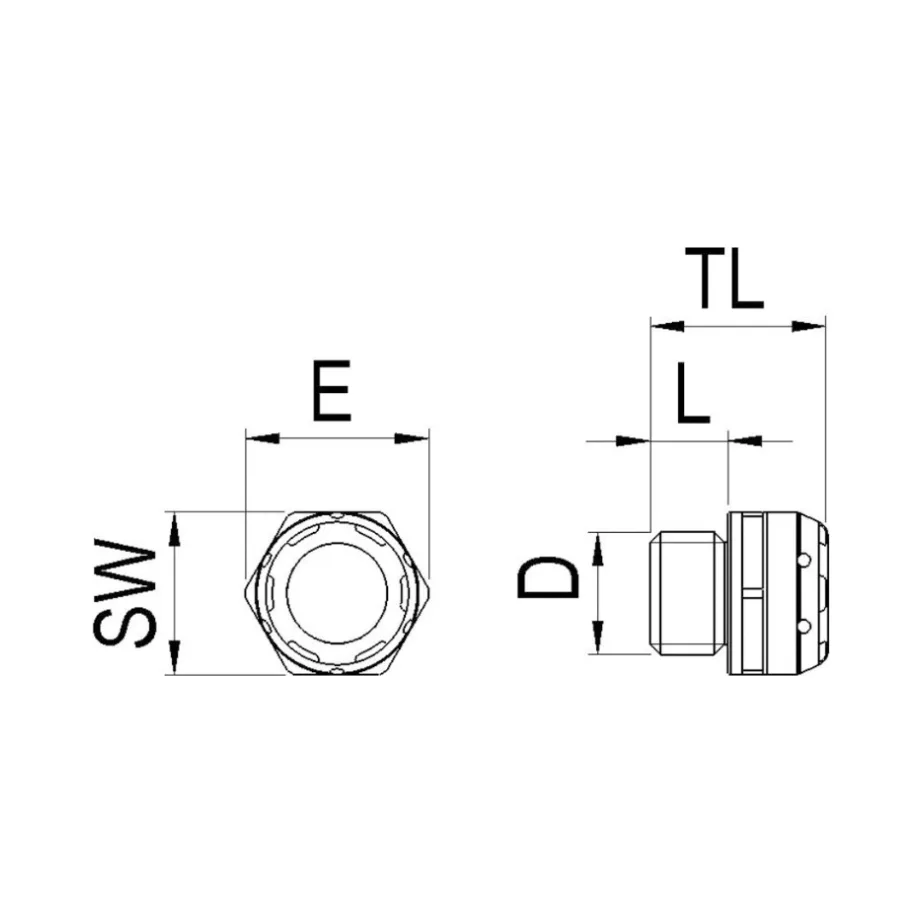

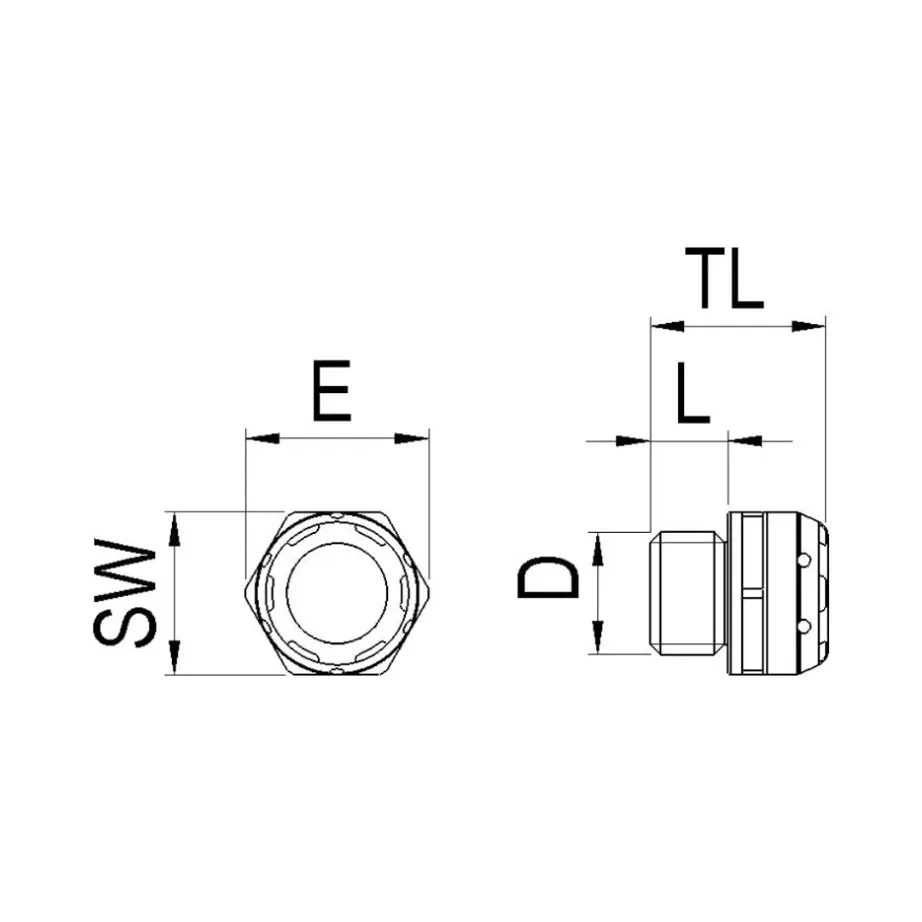

| Ø Connection thread D | 40 |
| Lead | 1.5 |
| Length screw-in thread L | 18 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Tightening torque | 6 N/m |
| Total length TL | 24.4 mm |
| Product Color | RAL 9005 |
