Description

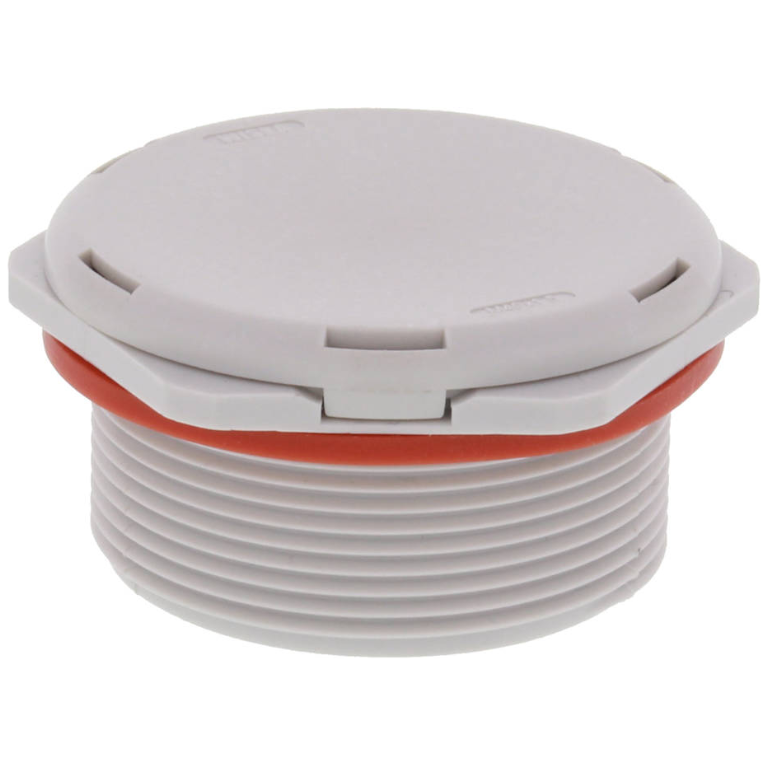

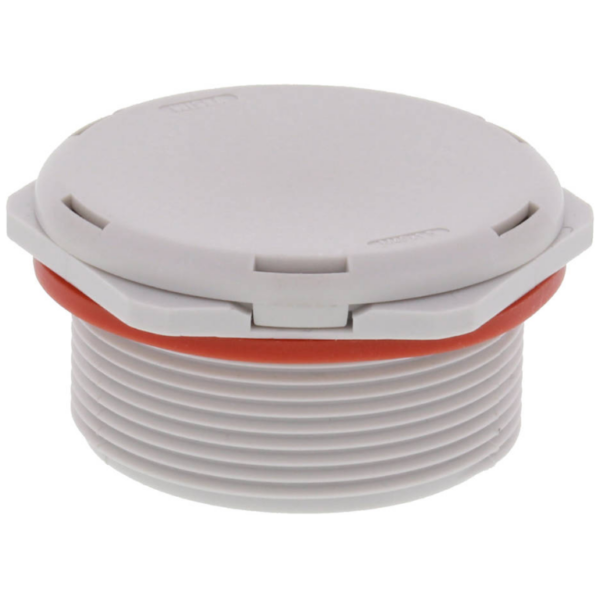

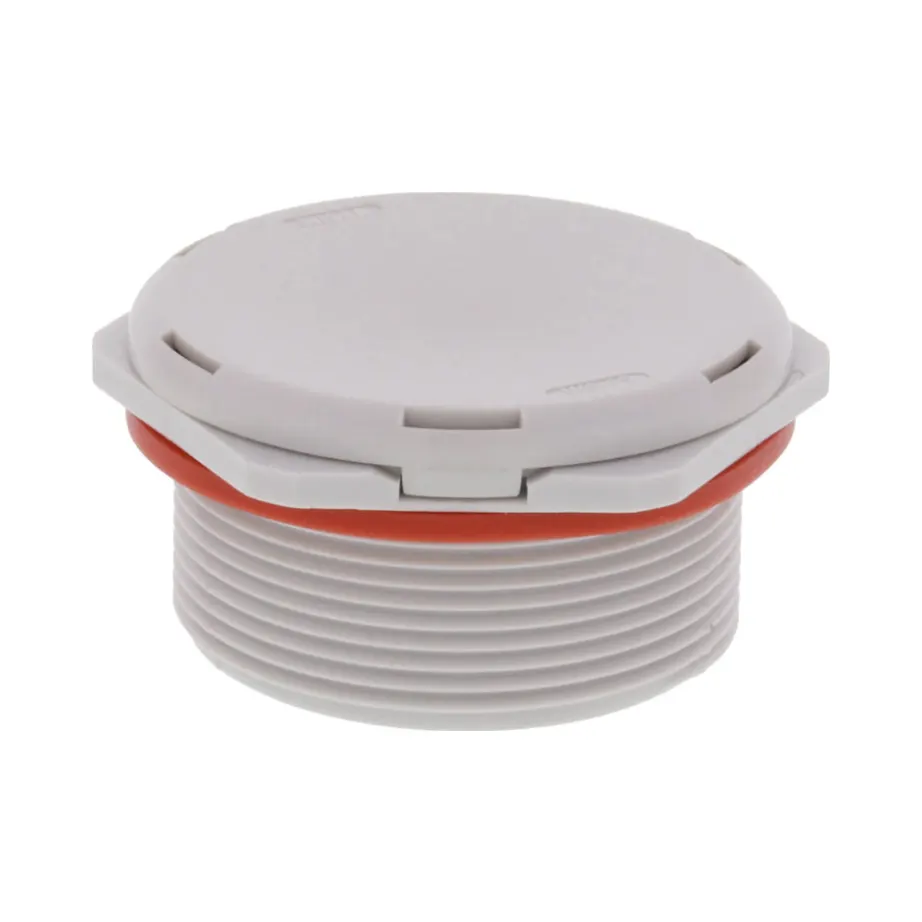

Polyamide High Air Flow Pressure Compensation Unit – Grey
Wiska VentPLUG EVPS-L 40 HF
The Wiska VentPLUG EVPS-L 40 HF is an advanced pressure compensation unit designed to prevent condensation while maintaining optimal enclosure ventilation. Engineered with high air flow capabilities, this unit provides superior pressure equalisation in electrical enclosures, ensuring protection against contaminants, moisture, and temperature fluctuations.
Manufactured from durable polyamide with an ePTFE HF membrane, the VentPLUG offers IP68/IP69-rated protection, making it ideal for demanding environments. It is designed for use in electrical enclosures where a cable gland with an additional ventilation function is needed.
Key Features of Wiska VentPLUG EVPS-L 40 HF Air Flow Compensation Unit
- Provides effective pressure equalisation, reducing condensation buildup inside enclosures
- Offers IP68/IP69-rated protection against dust, water, and contaminants
- Made from high-quality polyamide with an ePTFE HF membrane for enhanced durability
- Features a flat, space-saving design for flexible installation
- Airflow rate of 1650 LH at 70mbar, ensuring improved ventilation performance
- Operates in extreme temperatures from -40°C to 100°C
- Successfully withstands glow wire test up to 750°C, ensuring fire resistance
- Compatible with M40 thread type, enabling easy installation in various applications

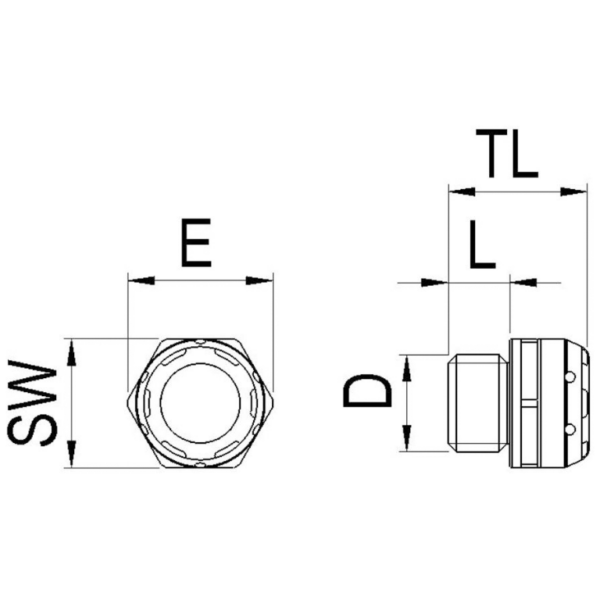

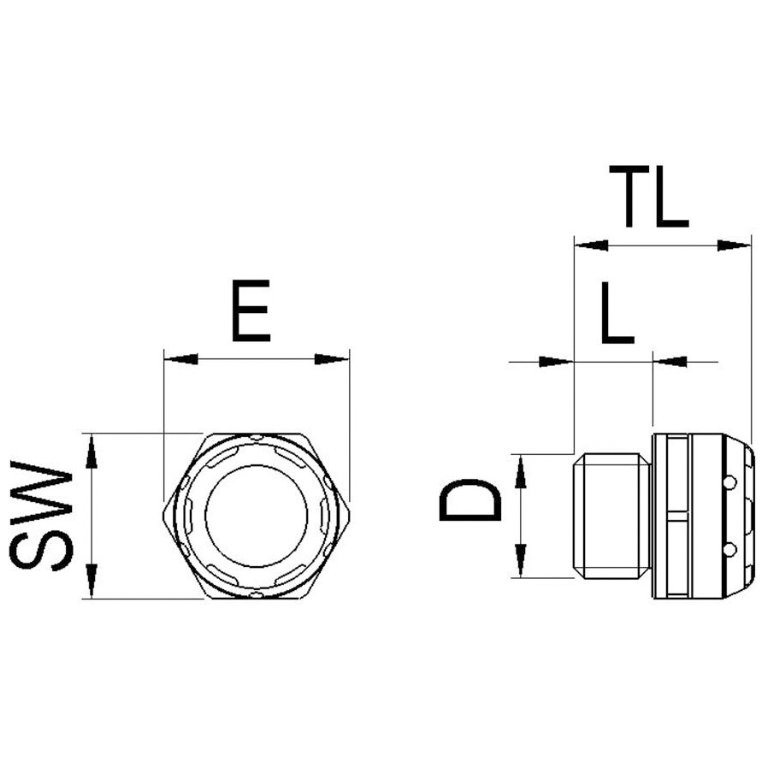

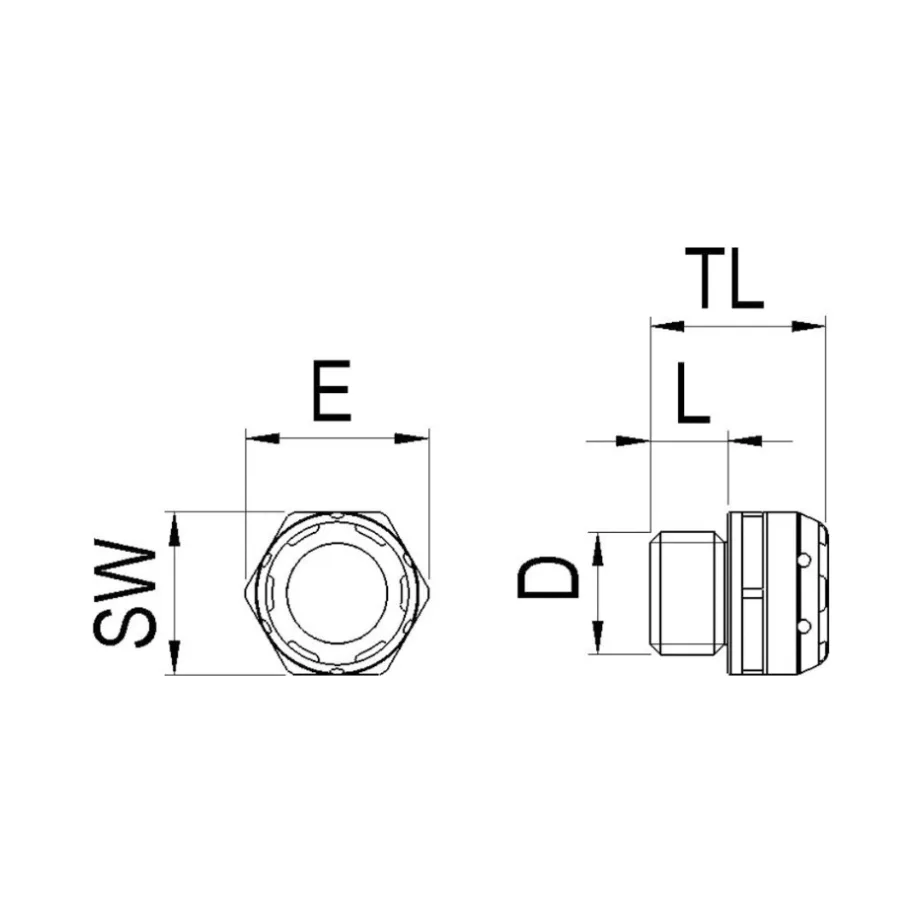

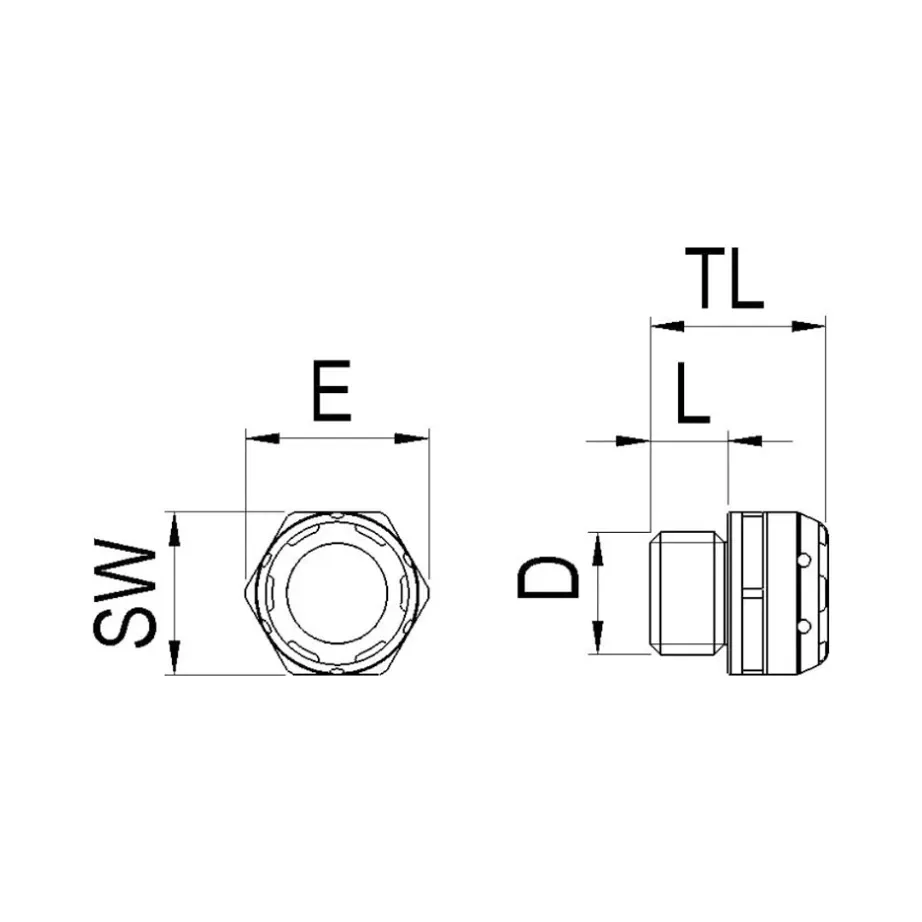

Technical Specifications
- Material (cable gland): Polyamide
- Material (membrane): ePTFE HF
- Material (sealing gasket): Silicone
- Airflow at 70mbar: 1650 LH
- Temperature range: -40°C to 100°C
- Glow wire test: 750°C
- Protection class: IP68 / IP69
- Thread type: M40
- Connection thread diameter: 40mm
- Lead: 1.5
- Screw-in thread length: 18mm
- Key width: 46mm
- Collar diameter: 51mm
- Tightening torque: 6 N/m
- Total length: 24.4mm
- Product colour: RAL 7035 (grey)
Why Choose the Wiska VentPLUG Pressure Compensation Unit?
The Wiska VentPLUG EVPS-L 40 HF ensures high operational safety by preventing moisture buildup and equalising pressure, making it ideal for enclosures in challenging environments. The improved airflow and enhanced protection features make this unit a cost-effective solution for preventing electrical failures caused by condensation.
