Description

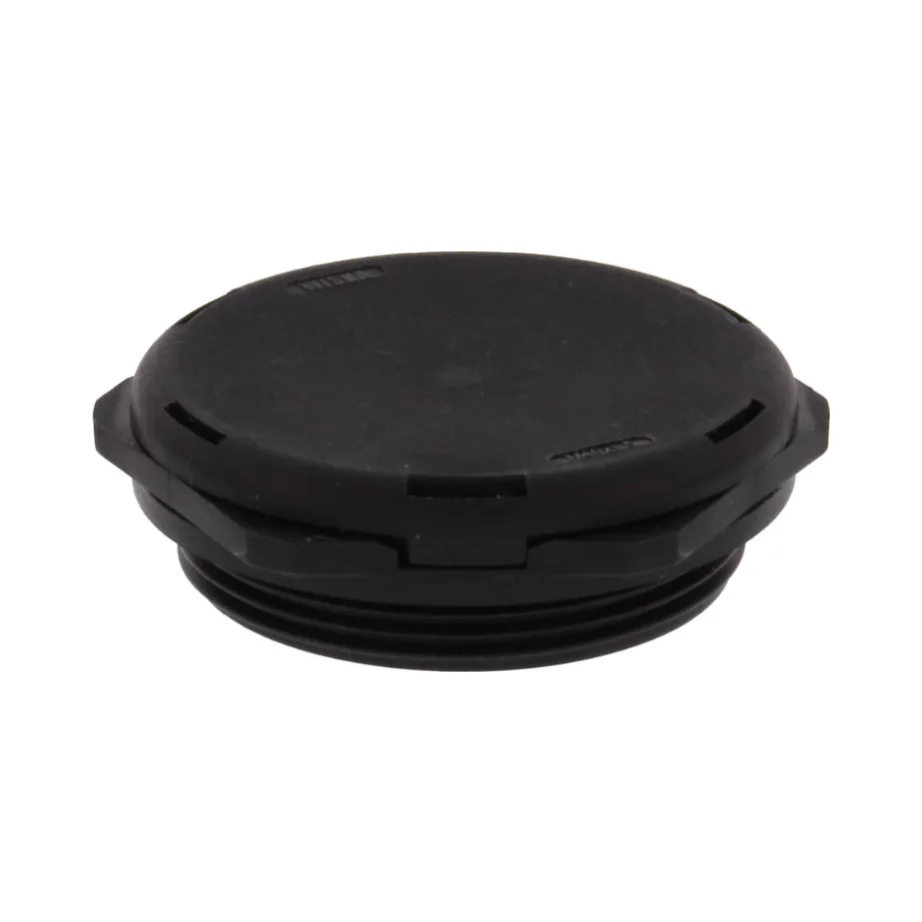

Wiska VentPLUG EVPS 40 Polyamide Pressure Compensation Unit – Black
High-Capacity Pressure Compensation for Demanding Enclosures
The Wiska VentPLUG EVPS 40 in black is engineered for effective pressure equalisation in large enclosures, providing protection against condensation and contaminants. Its advanced design and high airflow rate make it ideal for use in the most challenging environments.
Key Features:
- High Airflow: Delivers an impressive 660 LH airflow at 70mbar, ensuring efficient ventilation.
- Effective Pressure Equalisation: Prevents internal condensation and maintains optimal pressure.
- Protection: Guards against contaminants and moisture ingress.
- Robust Construction: Designed for high operational safety in extreme conditions.
- Temperature Range: Operates efficiently from -40°C to 100°C.
- Glow Wire Test: Rated at 750°C for enhanced safety.
- Material: Polyamide (cable gland), ePTFE (membrane), EPDM (sealing gasket).
- Protection Class: IP68 / IP69.

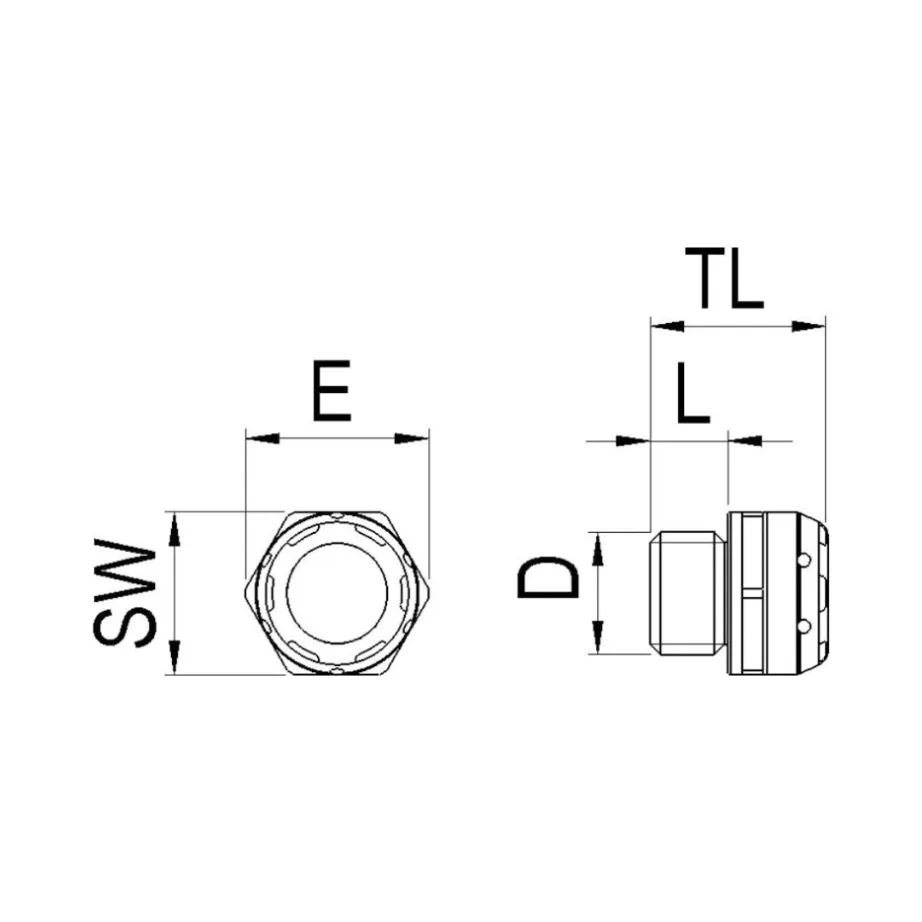

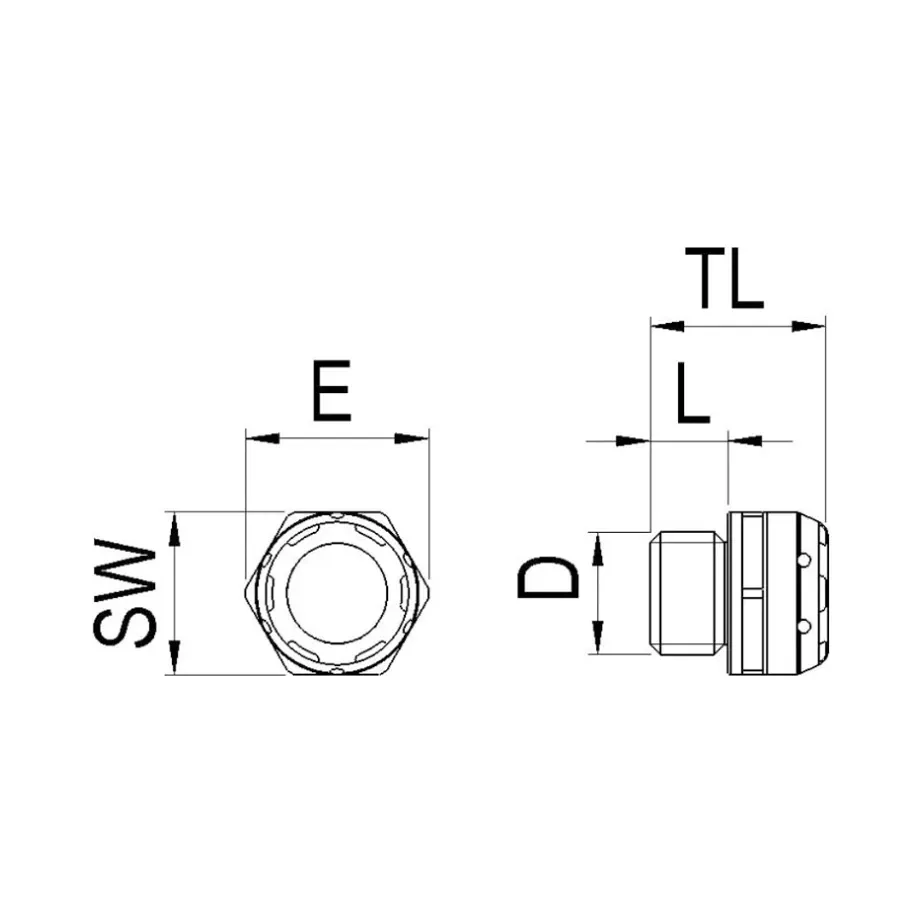

- Thread Type: M.
- Connection Thread Diameter: 40 mm.
- Screw-In Thread Length: 9 mm.
- Key Width: 46 mm.
- Collar Diameter: 51 mm.
- Tightening Torque: 6 N/m.
- Total Length: 15.4 mm.
- Product Colour: Black (RAL 9005).
