Description

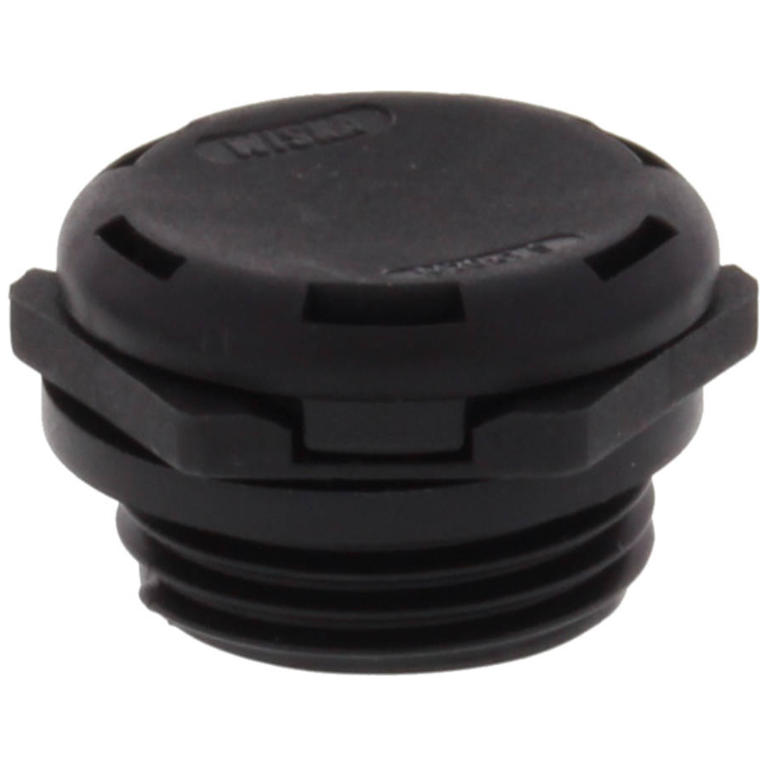

Wiska VentPLUG EVPS 20 Polyamide Pressure Compensation Unit – Black
Enhanced Pressure Equalisation for Robust Applications
The Wiska VentPLUG EVPS 20 in black is designed for superior pressure equalisation and ventilation in demanding environments. Featuring a high airflow rate and robust construction, it effectively prevents condensation and protects against contaminants.
Key Features:
- High Airflow: 110 LH airflow at 70mbar with an improved membrane for enhanced ventilation.
- Effective Pressure Equalisation: Maintains enclosure pressure and prevents condensation.
- Protection: Shields against dust and water ingress.
- Operational Safety: High performance in harsh conditions.
- Temperature Range: -40°C to 100°C.
- Glow Wire Test: 750°C for enhanced safety.
- Material: Polyamide (cable gland), ePTFE (membrane), EPDM (sealing gasket).
- Protection Class: IP68 / IP69.
- Thread Type: M.

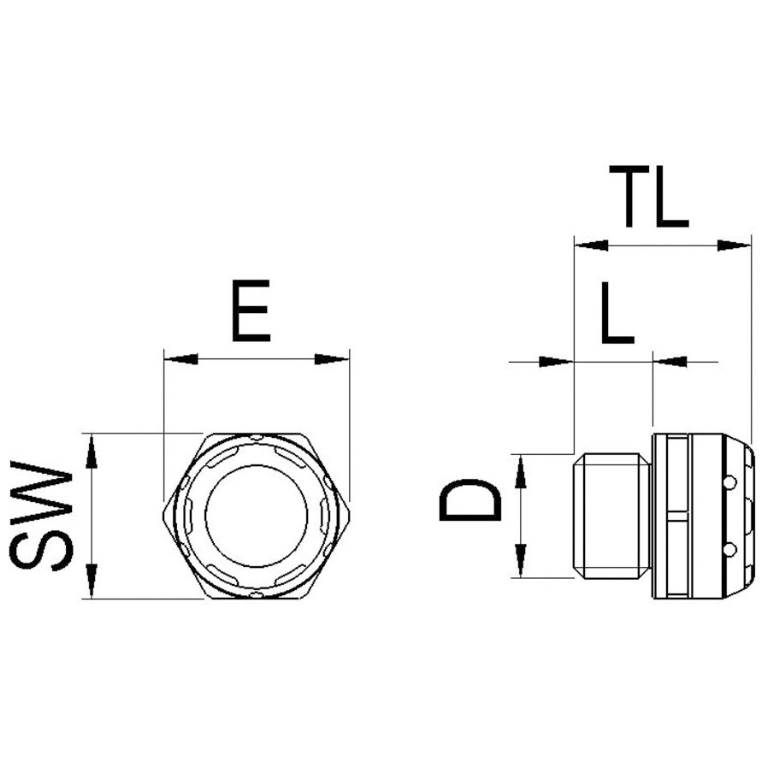

- Connection Thread Diameter: 20 mm.
- Screw-In Thread Length: 9 mm.
- Key Width: 24 mm.
- Collar Diameter: 27 mm.
- Tightening Torque: 4 N/m.
- Total Length: 15.4 mm.
- Product Color: Black (RAL 9005).
