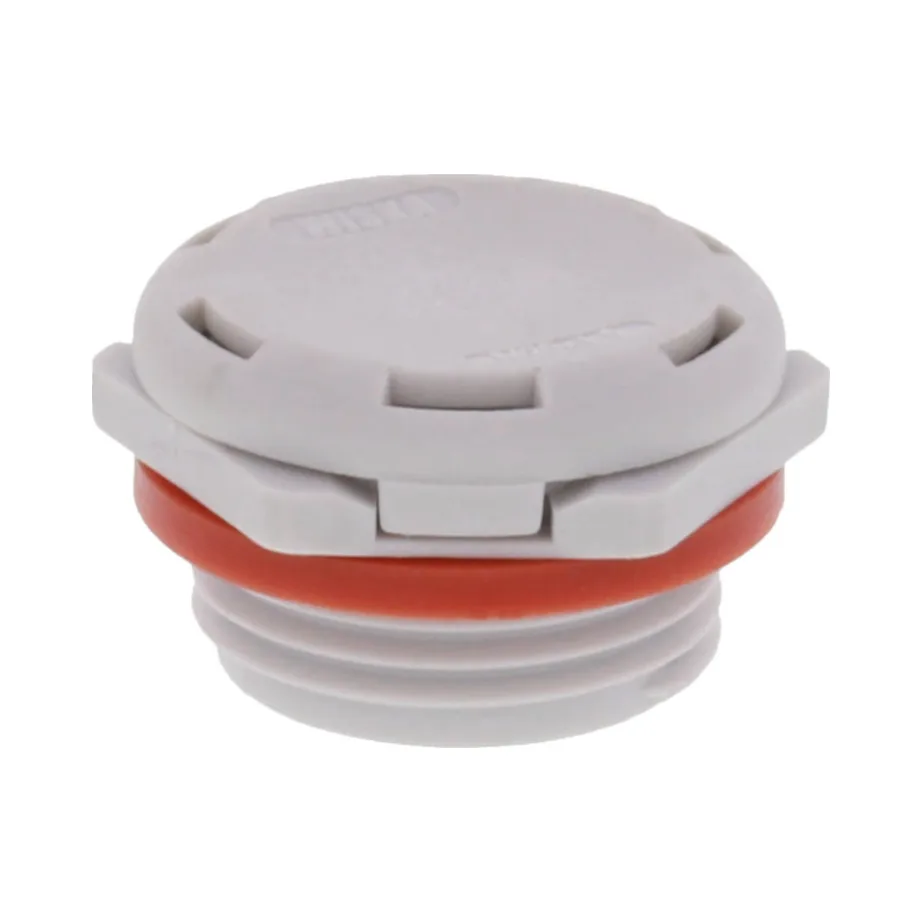

Wiska VentPLUG EVPS 20 HF Polyamide High Air Flow Pressure Compensation Unit – Grey
Superior High Airflow and Protection for Demanding Applications
The Wiska VentPLUG EVPS 20 HF in grey offers exceptional high airflow and pressure equalisation capabilities, making it ideal for use in environments requiring rigorous protection and efficient venting.
Key Features:
- High Airflow: 280 LH at 70mbar, enhanced by the advanced ePTFE HF membrane.
- Effective Pressure Equalisation: Maintains internal pressure and prevents condensation.
- Protection: Guards against contaminants and moisture intrusion.
- Robust Construction: Suitable for harsh and demanding conditions.
- Temperature Range: -40°C to 100°C.
- Glow Wire Test: 750°C for added safety.
- Material: Polyamide (cable gland), ePTFE HF (membrane), Silicone (sealing gasket).
- Protection Class: IP68 / IP69.
- Thread Type: M.

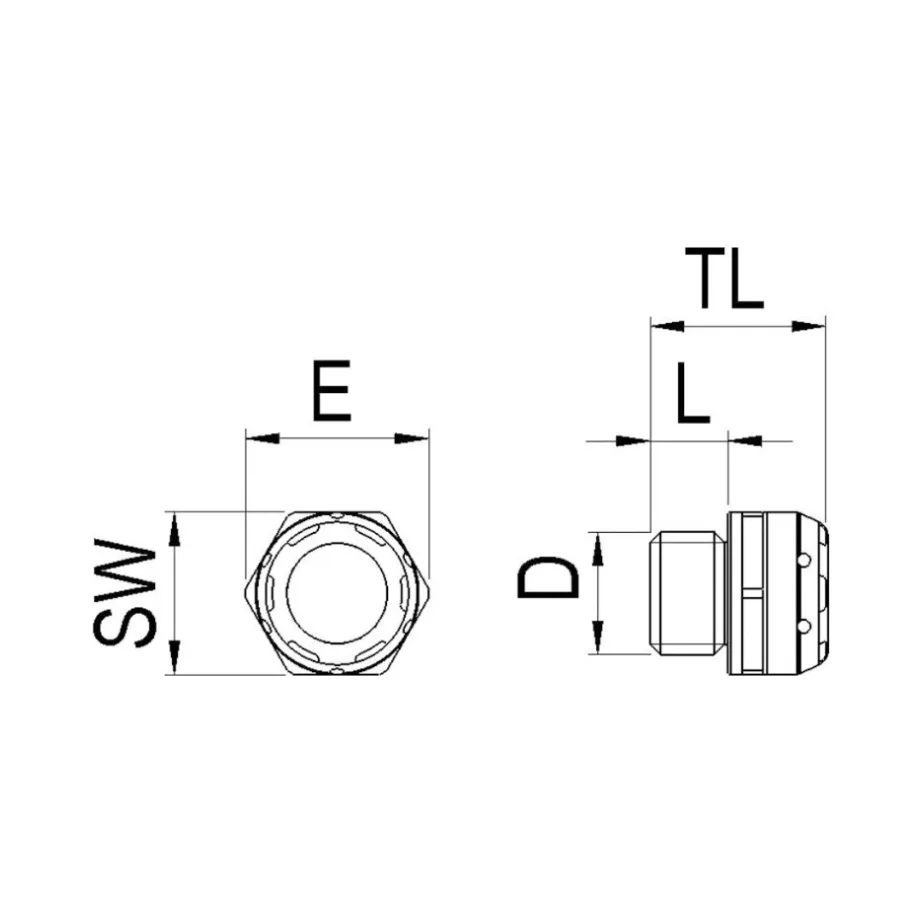

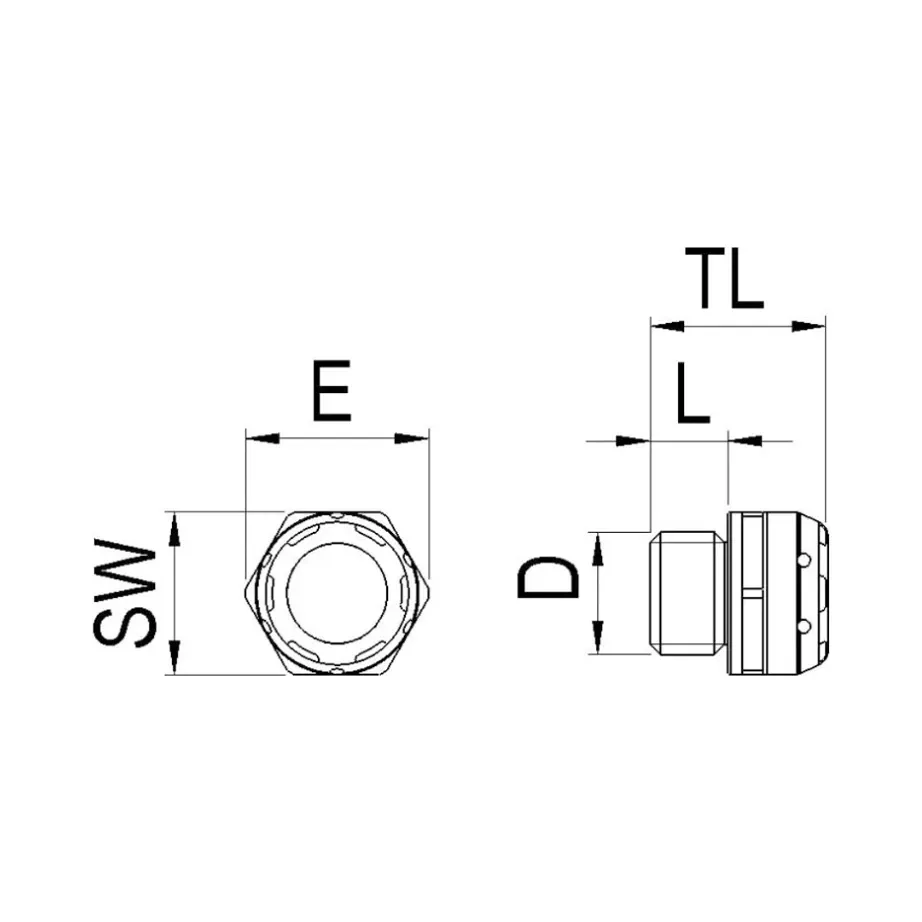

- Connection Thread Diameter: 20 mm.
- Screw-In Thread Length: 9 mm.
- Key Width: 24 mm.
- Collar Diameter: 27 mm.
- Tightening Torque: 2 N/m.
- Total Length: 15.4 mm.
- Product Colour: Grey (RAL 7035).
