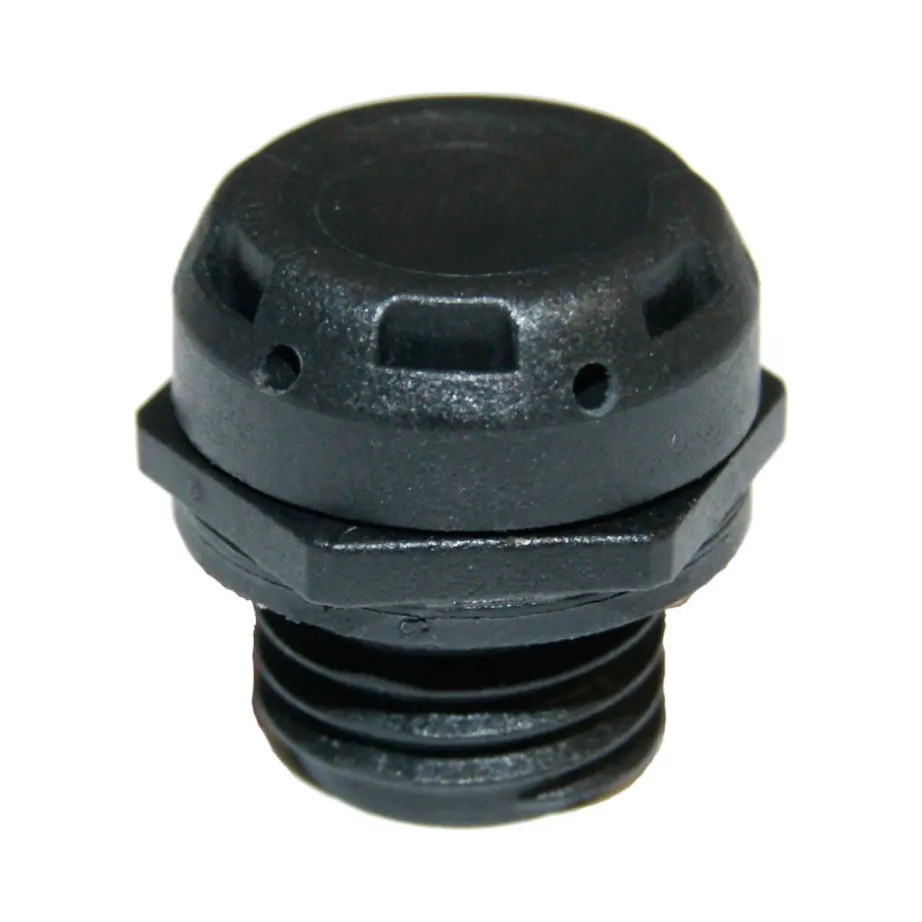

Wiska VentPLUG EVPS 12 Polyamide Pressure Compensation Unit – Black
Advanced Pressure Compensation for Enclosures
The Wiska VentPLUG EVPS 12 is designed for optimal pressure equalization in enclosures, preventing condensation and contamination. Ideal for challenging conditions, this unit enhances operational safety and profitability. Made from durable polyamide with an advanced ePTFE membrane, it offers high airflow and robust performance.
Key Features:
- Pressure Equalisation: Effective pressure regulation to prevent condensation.
- Protection: Shields against contaminants and moisture.
- High Airflow: Airflow of 22 LH at 70mbar, with an improved membrane providing up to 2.5 times higher airflow.
- Temperature Range: Operates from -40°C to 100°C.
- Material: Polyamide (cable gland), ePTFE (membrane), EPDM (sealing gasket).
- Protection Class: IP68 / IP69.

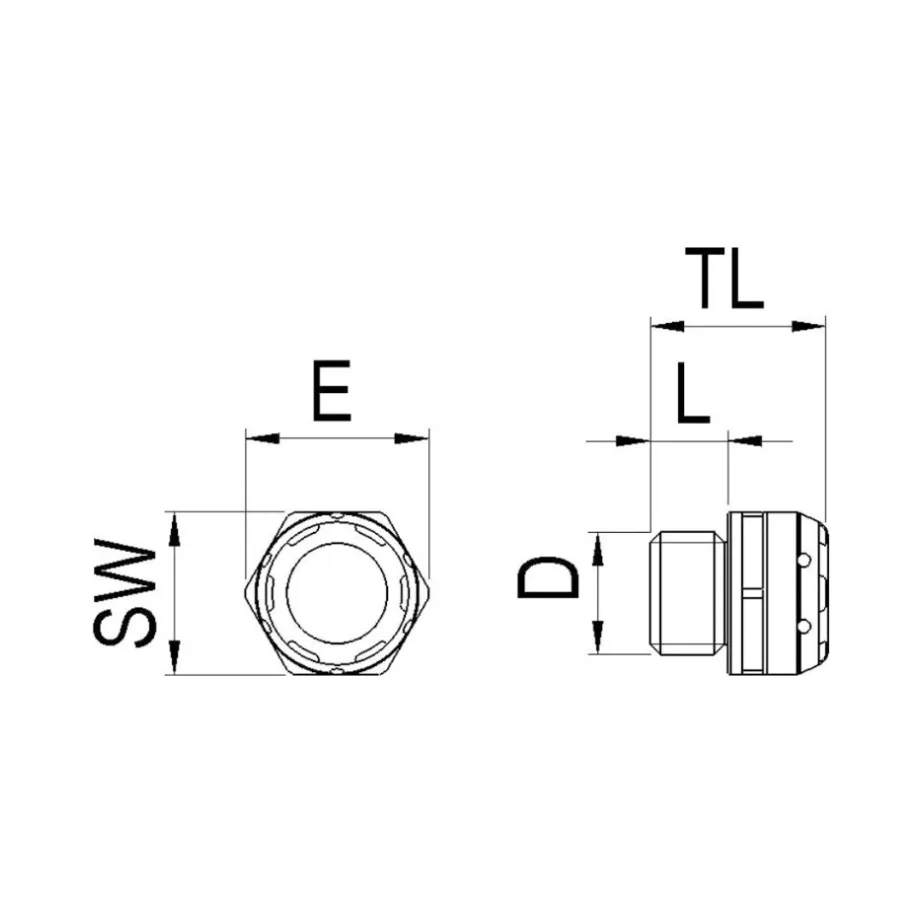

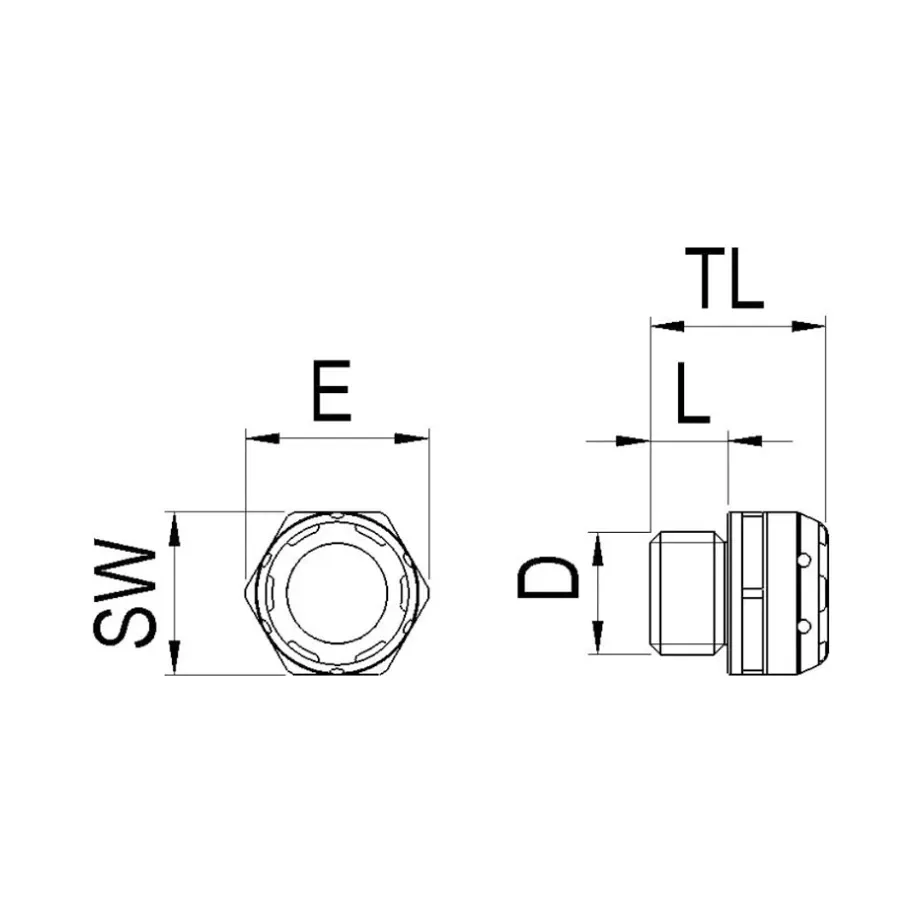

- Thread Type: M.
- Connection Thread Diameter: 12 mm.
- Screw-In Thread Length: 8 mm.
- Key Width: 16 mm.
- Collar Diameter: 18 mm.
- Tightening Torque: 1 N/m.
- Total Length: 17.4 mm.
- Product Color: Black (RAL 9005).
