Description

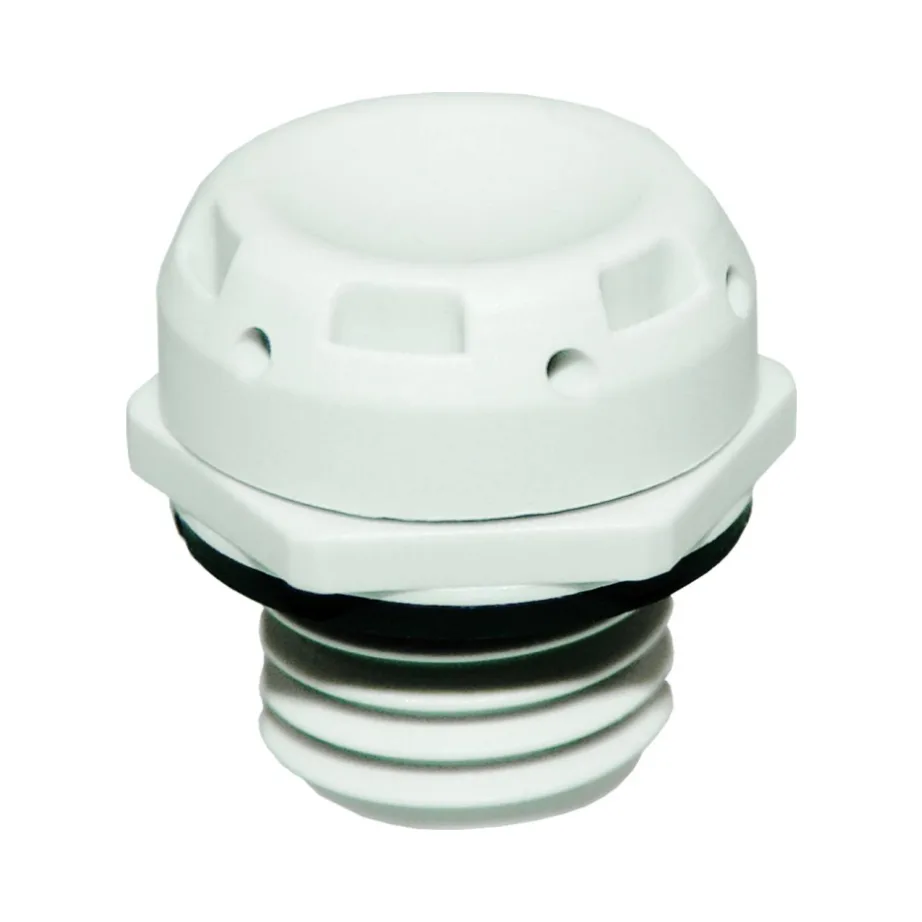

Wiska VentPLUG EVPS 12 Polyamide Pressure Compensation Unit – Grey
Efficient Pressure Equalisation for Enclosures
The Wiska VentPLUG EVPS 12 in grey is designed to ensure optimal pressure regulation and prevent condensation within enclosures. With a focus on durability and performance, this unit is perfect for environments requiring high operational safety and protection against contaminants. The advanced ePTFE membrane enhances airflow and effectiveness.
Key Features:
- Pressure Equalisation: Maintains optimal pressure to avoid condensation.
- Protection: Guards against contaminants and moisture.
- High Airflow: Provides 22 LH airflow at 70mbar, with improved membranes achieving up to 2.5 times higher airflow in larger sizes.
- Temperature Range: Effective from -40°C to 100°C.
- Material: Polyamide (cable gland), ePTFE (membrane), EPDM (sealing gasket).
- Protection Class: IP68 / IP69.
- Thread Type: M.

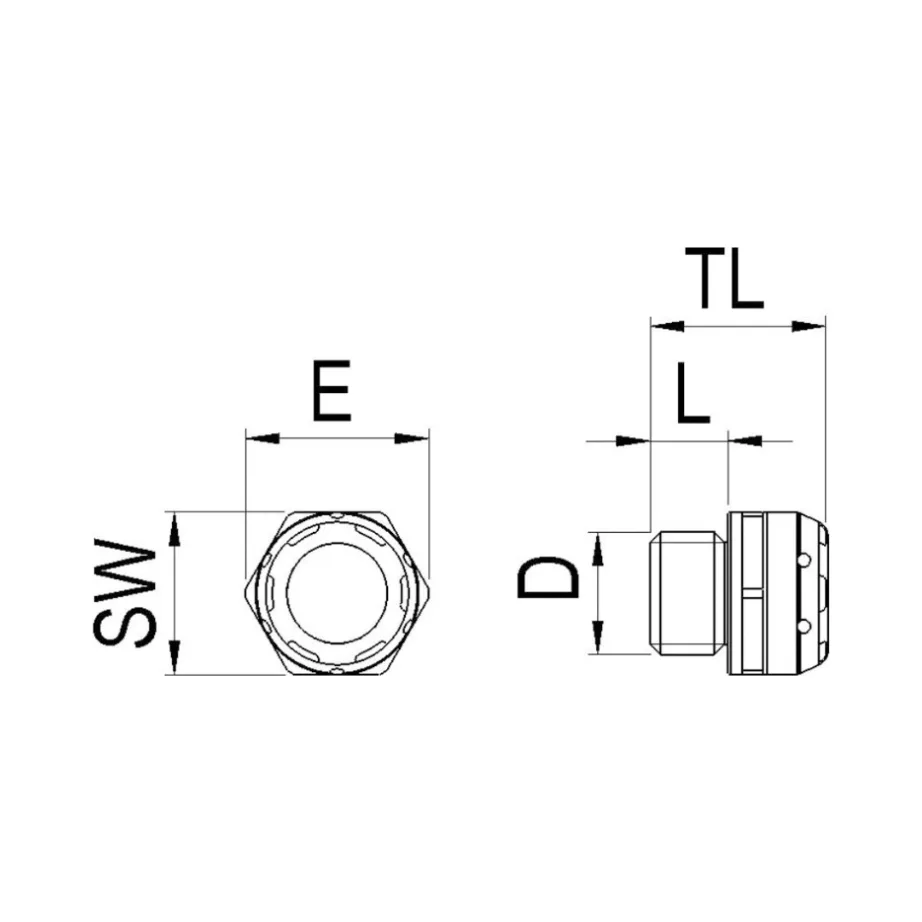

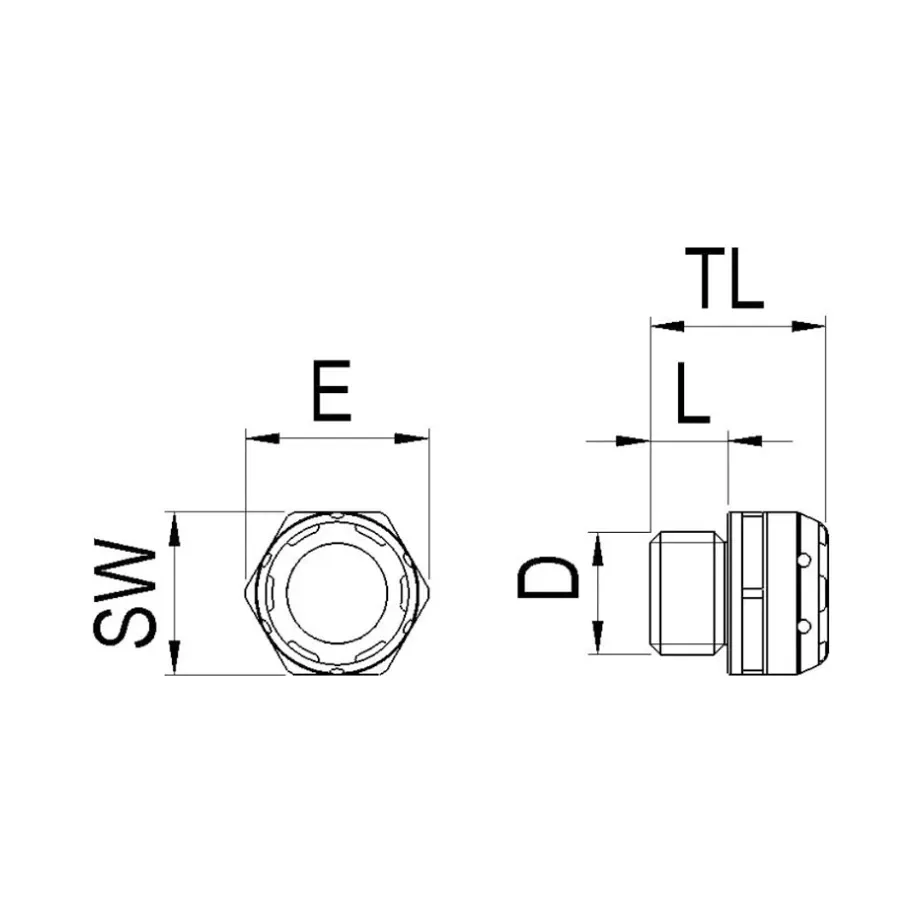

- Connection Thread Diameter: 12 mm.
- Screw-In Thread Length: 8 mm.
- Key Width: 16 mm.
- Collar Diameter: 18 mm.
- Tightening Torque: 1 N/m.
- Total Length: 17.4 mm.
- Product Colour: Grey (RAL 7035).
