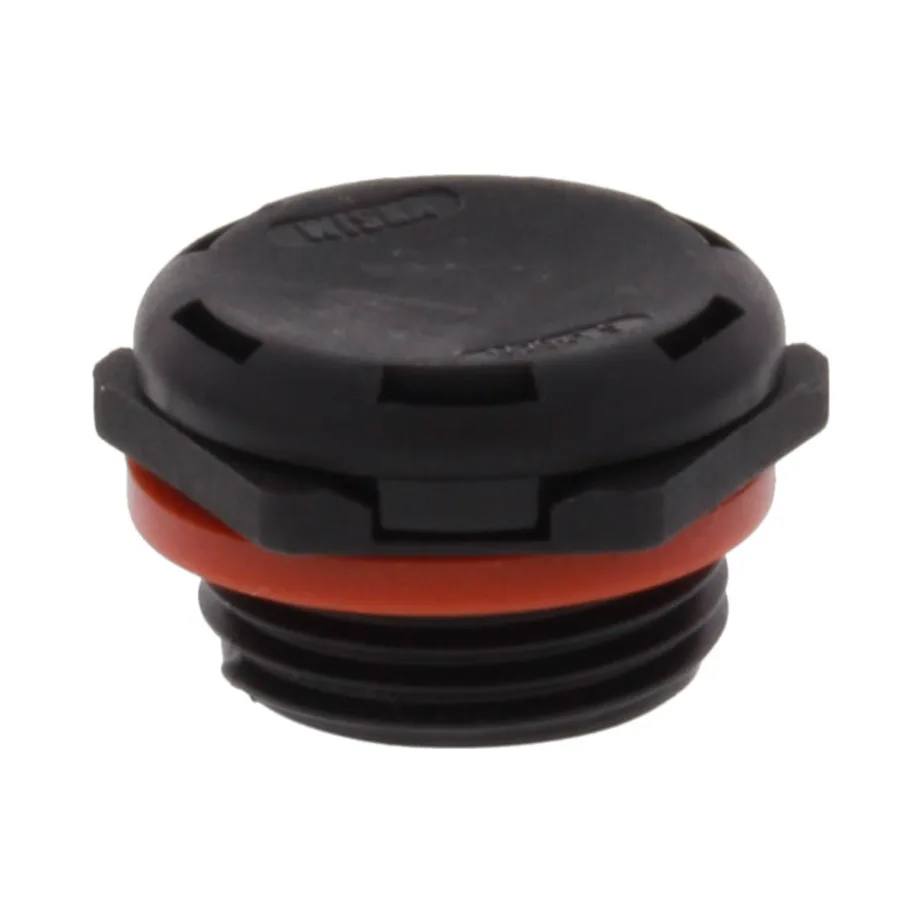

Wiska VentPLUG EVPS 12 HF Polyamide High Air Flow Pressure Compensation Unit – Black
High Airflow Pressure Equalisation for Extreme Conditions
The Wiska VentPLUG EVPS 12 HF in black is engineered for high airflow and effective pressure equalisation. This unit excels in preventing condensation and contamination in enclosures. Featuring an advanced ePTFE HF membrane, it offers superior performance and durability for harsh environments.
Key Features:
- High Airflow: 34 LH airflow at 70mbar, with improved membrane technology for maximum efficiency.
- Effective Pressure Equalisation: Maintains enclosure pressure to prevent condensation.
- Protection: Shields against contaminants and moisture.
- High Operational Safety: Suitable for extreme conditions and high reliability.
- Temperature Range: Operational from -40°C to 100°C.
- Material: Polyamide (cable gland), ePTFE HF (membrane), TPE (sealing gasket).
- Protection Class: IP68 / IP69.

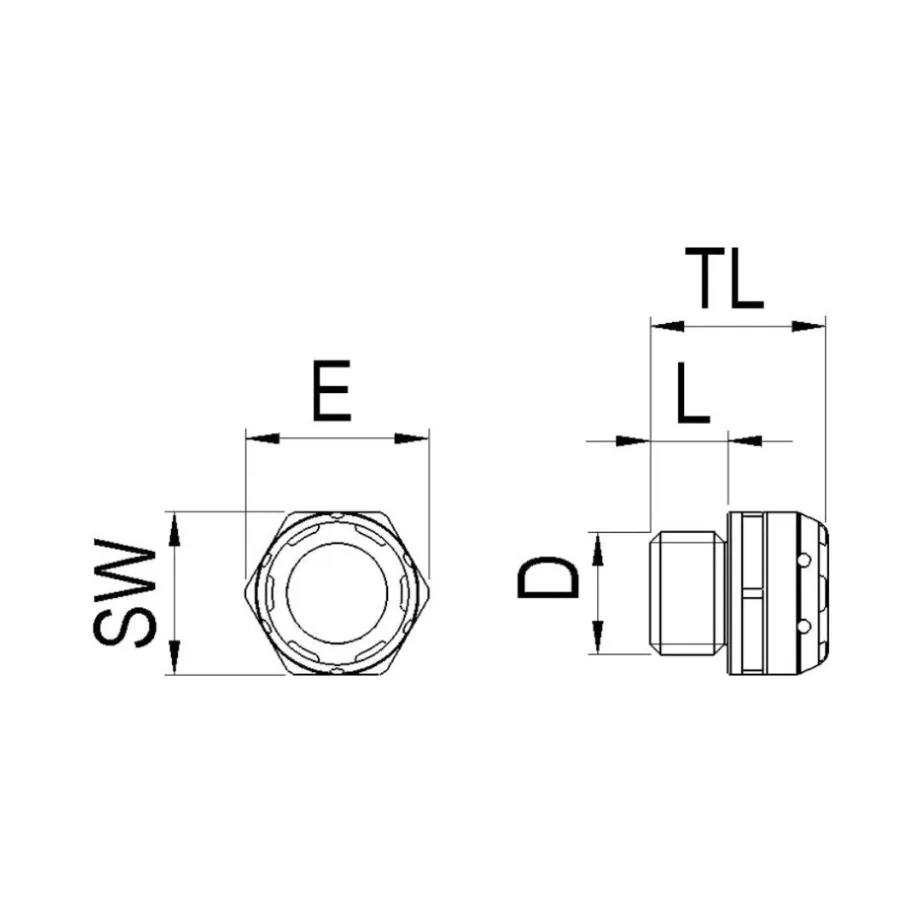

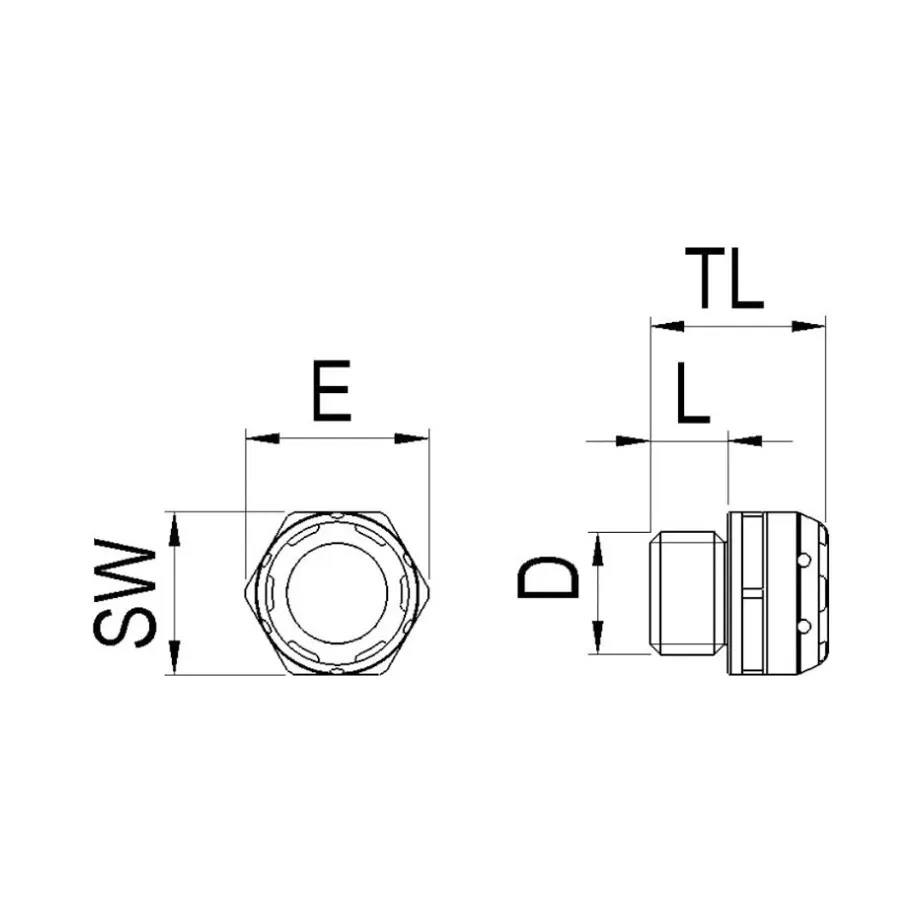

- Thread Type: M.
- Connection Thread Diameter: 12 mm.
- Screw-In Thread Length: 8 mm.
- Key Width: 16 mm.
- Collar Diameter: 18 mm.
- Tightening Torque: 1 N/m.
- Total Length: 17.4 mm.
- Product Colour: Black (RAL 9005).
