Description

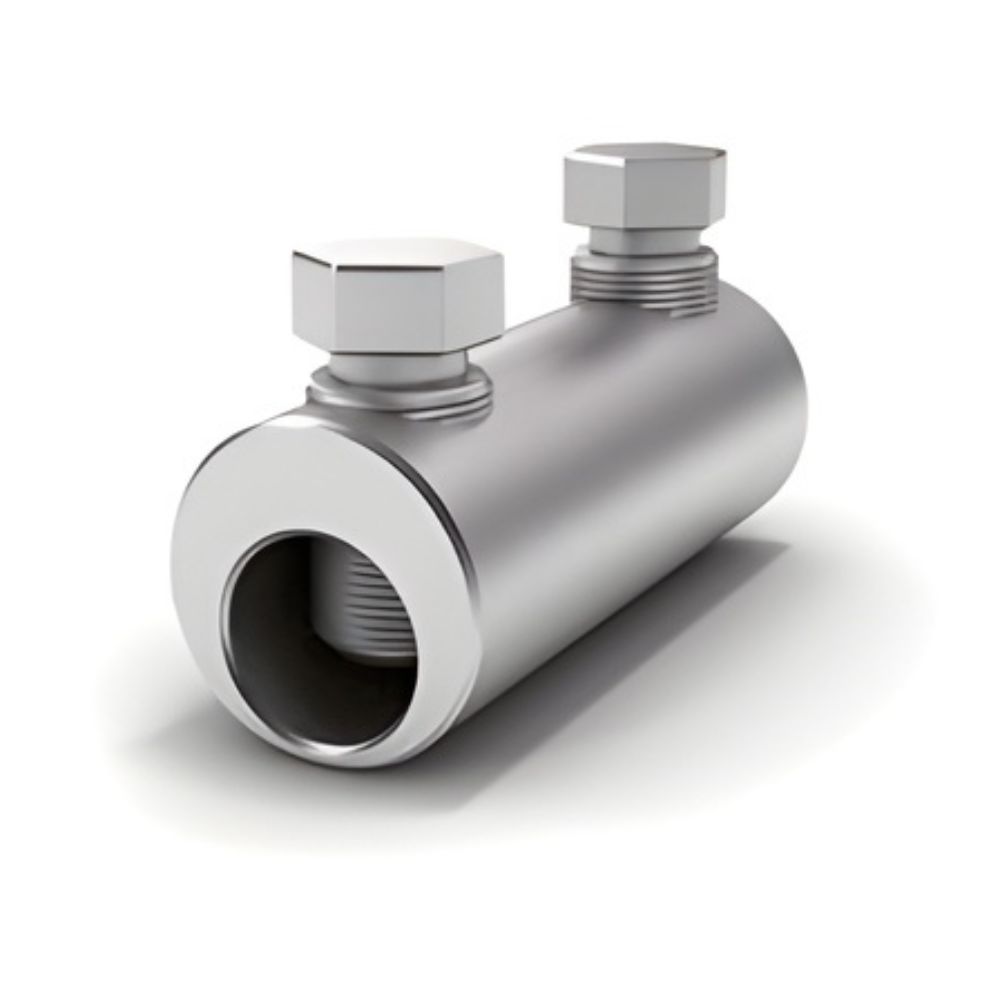

Wiska Shear Bolt Connector 95-240mm
The Wiska Shear Bolt Connector 95-240mm is a heavy-duty solution for straight-through connection of electrical conductors in low voltage applications up to 0.6-1kV. Suitable for copper and aluminium conductors, it delivers secure, high-performance connections without requiring crimping tools.
Constructed with a tinned aluminium body and steel shear head bolts, this connector offers excellent conductivity and corrosion resistance. The shear bolt design ensures correct tightening torque during installation, providing consistent and reliable connections in demanding environments.
Key Features – Wiska Shear Bolt Connector 95-240mm
- Clamping Range: 95-240mm²
- Connector Type: Shear bolt connector
- Material: Tinned aluminium body, steel shear head bolts
- Finish/Colour: Tin/Silver
- Voltage Rating: 0.6-1kV
- No crimping tool required
- Shear head bolts ensure correct torque application
- Suitable for copper and aluminium conductors
Applications
- Straight connection of electrical cable conductors
- Low voltage cable jointing
- Suitable for:
- Submarine resin joints
- Underground jointing systems
- Ideal for higher load and larger conductor installations
Product Specifications
- Length: 13mm
- Width: 4mm
- Height: 6mm
- Dimensions: 13mm x 4mm x 6mm
- Group: Submarine Resin Joints
- Product Colour: Tin/Silver
