Description

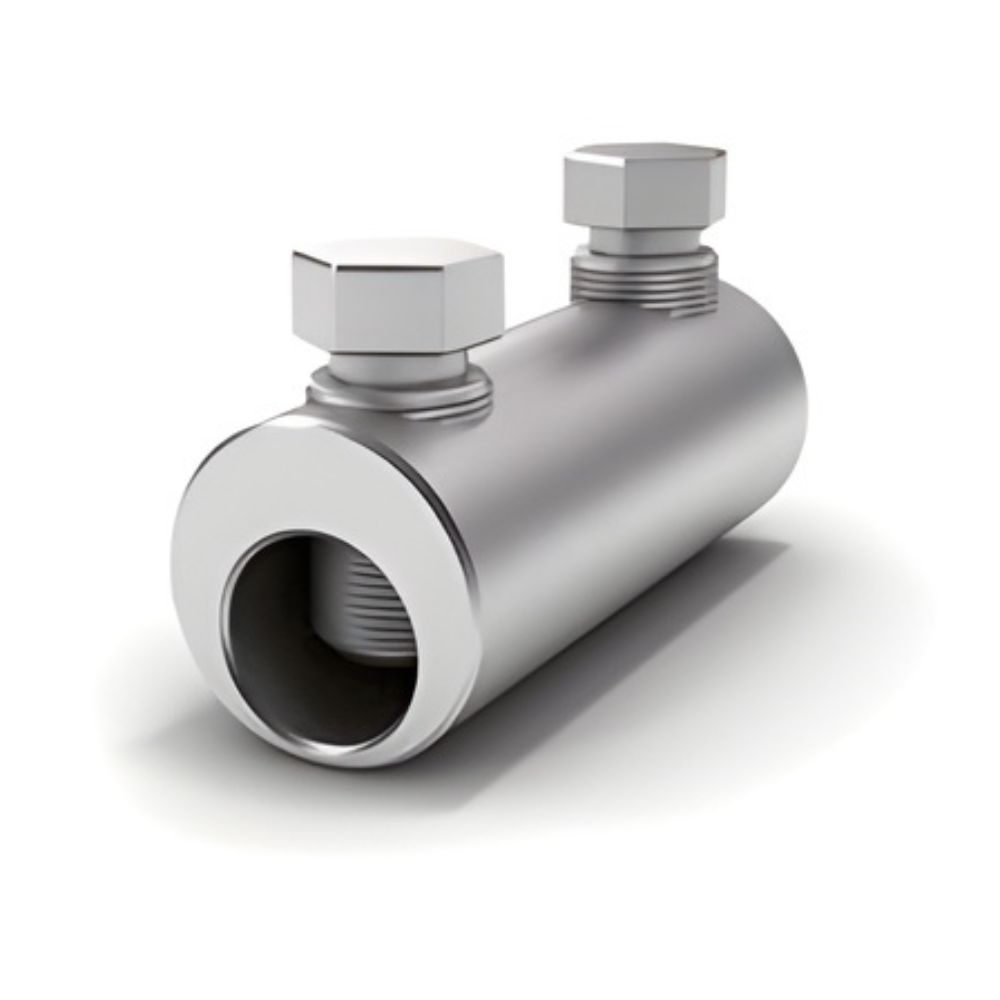

Wiska Shear Bolt Connector 6-50mm
The Wiska Shear Bolt Connector 6–50mm (SKU: 10112914) are high-quality connectors designed for secure and reliable straight-through connections of electrical conductors. Suitable for copper-to-copper, aluminium-to-aluminium, and copper-to-aluminium connections, they provide a versatile solution for low voltage cable jointing applications up to 0.6/1kV.
Featuring a tinned aluminium body with steel shear head bolts, these connectors ensure optimal conductivity and corrosion resistance. The breakaway bolt design guarantees correct tightening torque without the need for specialist crimping tools, making installation fast and efficient.
Key Features – Wiska Shear Bolt Connector 6-50mm
- Clamping Range: 6–50mm²
- Connector Type: Head-to-head with shear bolts
- Material: Tinned aluminium body, steel shear head bolts
- Finish/Colour: Tin/Silver
- Voltage Rating: Up to 0.6/1kV
- No crimping tool required
- Shear head bolts ensure correct torque application
- Suitable for copper and aluminium conductors
Applications
- Straight connection of electrical cable conductors
- Suitable for low voltage cable joints
- Compatible with:
- Shark SIXEIGHT joints
- Shark Classic joints
- Submarine resin joints
- Ideal for underground and resin jointing applications
Product Specifications
- Length: 5mm
- Width: 2mm
- Height: 4mm
- Group: Submarine Resin Joints
- Product Colour: Tin/Silver
