Description

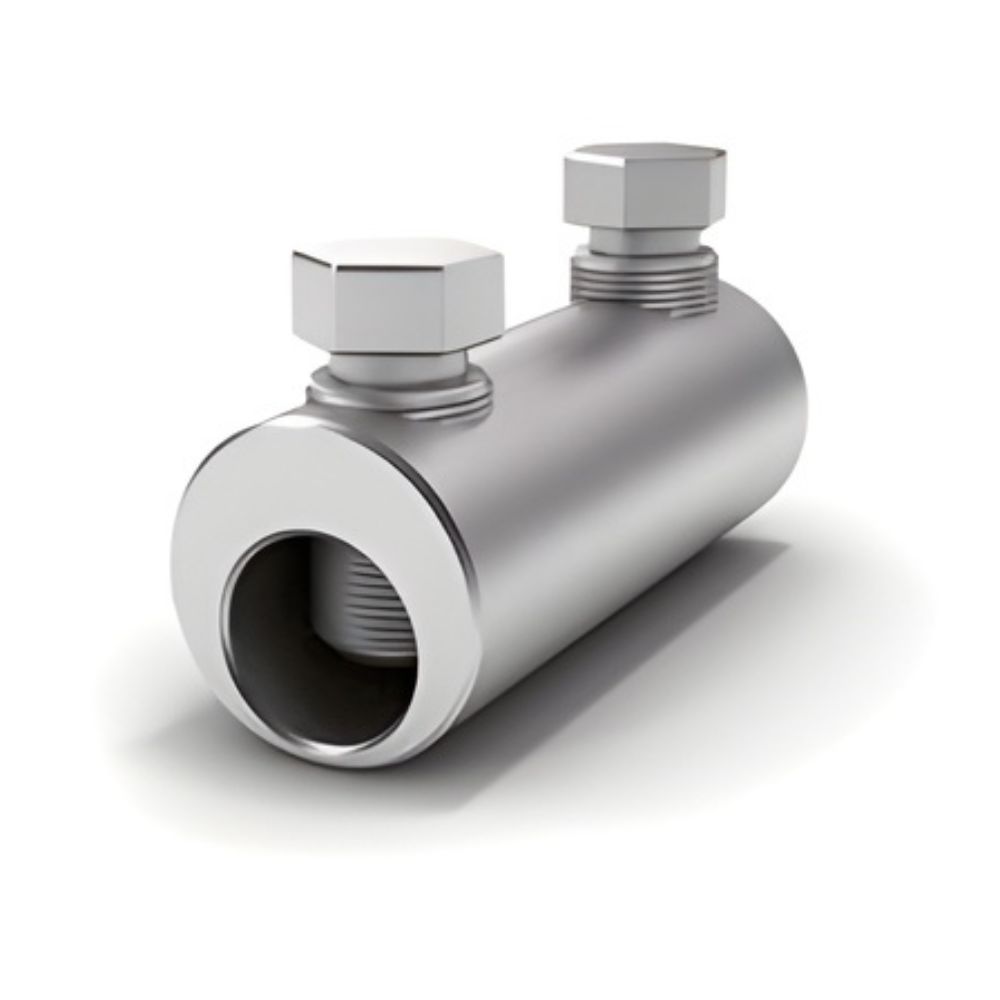

Wiska Shear Bolt Connector 50-95mm
The Wiska Shear Bolt Connector 50-95mm is a reliable solution for straight-through connection of electrical conductors in low voltage applications up to 0.6/1kV. Designed for use with copper and aluminium conductors, it ensures secure and efficient connections without the need for crimping tools.
Manufactured with a tinned aluminium body and steel shear head bolts, this connector provides excellent conductivity and corrosion resistance. The integrated shear bolt system guarantees correct torque during installation, ensuring consistent and safe connections every time.
Key Features – Wiska Shear Bolt Connector 50-95mm
- Clamping Range: 50-95mm²
- Connector Type: Shear bolt connector
- Material: Tinned aluminium body, steel shear head bolts
- Finish/Colour: Tin/Silver
- Voltage Rating: Up to 0.6/1kV
- No crimping tool required
- Shear head bolts ensure correct torque application
- Suitable for copper and aluminium conductors
Applications
- Straight connection of electrical cable conductors
- Low voltage cable jointing
- Compatible with:
- Submarine resin joints
- Underground jointing systems
- Ideal for use in demanding connection environments
Product Specifications
- Length: 6mm
- Width: 3mm
- Height: 4mm
- Dimensions: 6mm x 3mm x 4mm
- Group: Submarine Resin Joints
- Product Colour: Tin/Silver
