Description

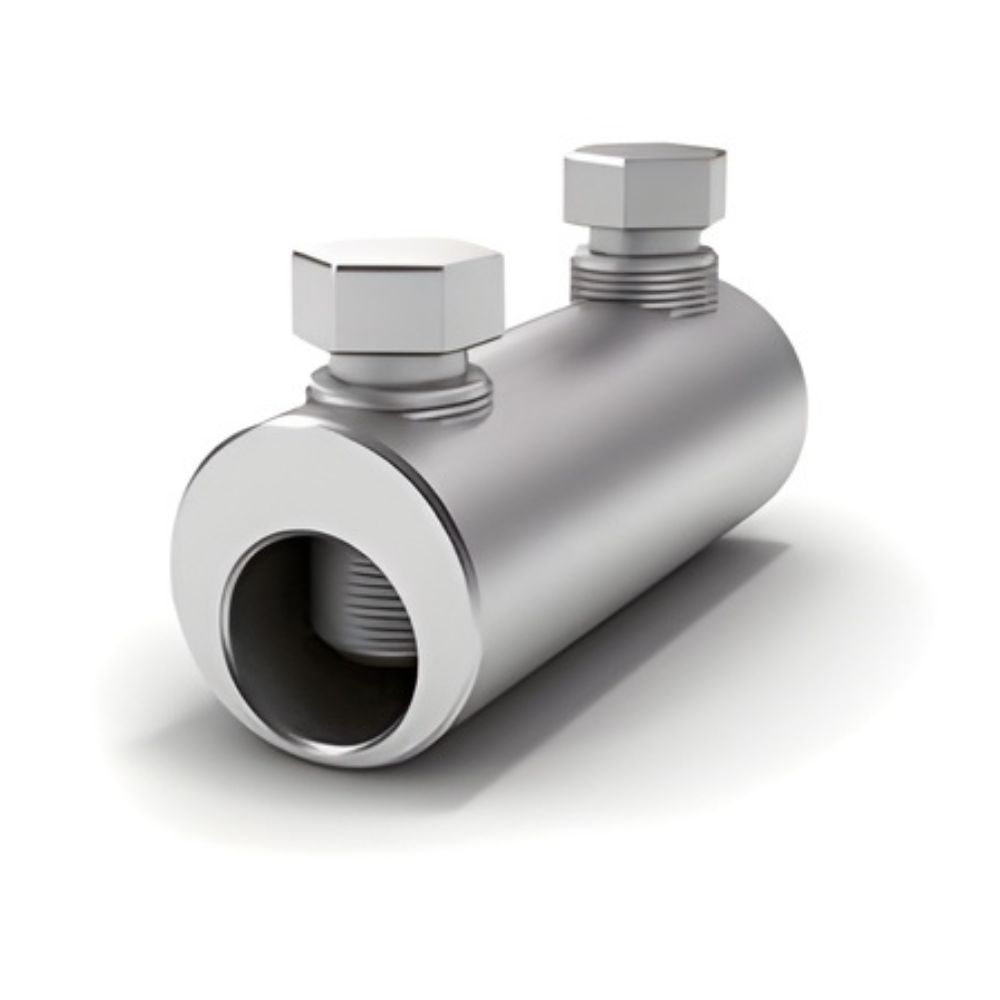

Wiska Shear Bolt Connector 150-300mm
The Wiska Shear Bolt Connector 150-300mm is a heavy-duty connector designed for straight-through connection of large electrical conductors in low voltage applications up to 0.6-1kV. Suitable for copper and aluminium conductors, it provides secure, high-performance connections without the need for crimping tools.
Manufactured with a tinned aluminium body and steel shear head bolts, this connector ensures excellent conductivity and corrosion resistance. The shear bolt system guarantees correct torque during installation, delivering consistent and reliable results in demanding environments.
Key Features – Wiska Shear Bolt Connector 150-300mm
- Clamping Range: 150-300mm²
- Connector Type: Shear bolt connector
- Material: Tinned aluminium body, steel shear head bolts
- Finish/Colour: Tin/Silver
- Voltage Rating: 0.6-1kV
- No crimping tool required
- Shear head bolts ensure correct torque application
- Suitable for copper and aluminium conductors
Applications
- Straight connection of electrical cable conductors
- Low voltage cable jointing
- Suitable for:
- Submarine resin joints
- Underground jointing systems
- Ideal for large conductor and heavy-duty installations
Product Specifications
- Length: 13mm
- Width: 7mm
- Height: 5mm
- Dimensions: 13mm x 5mm x 7mm
- Group: Submarine Resin Joints
- Product Colour: Tin/Silver
