Description

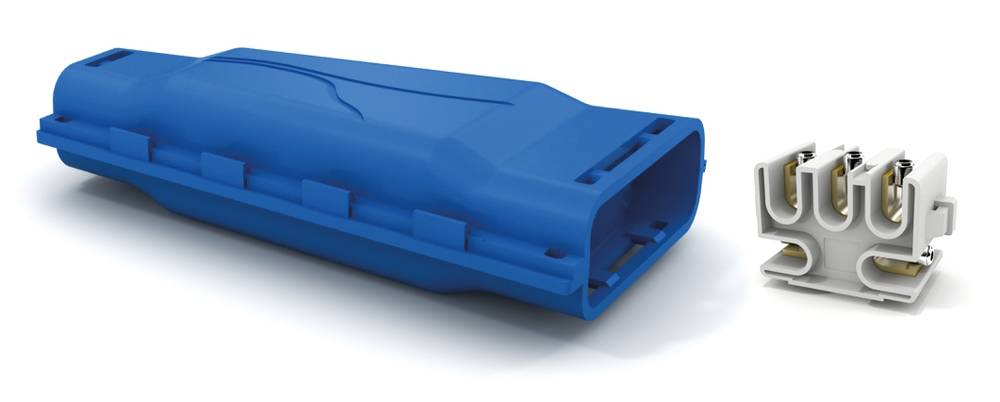

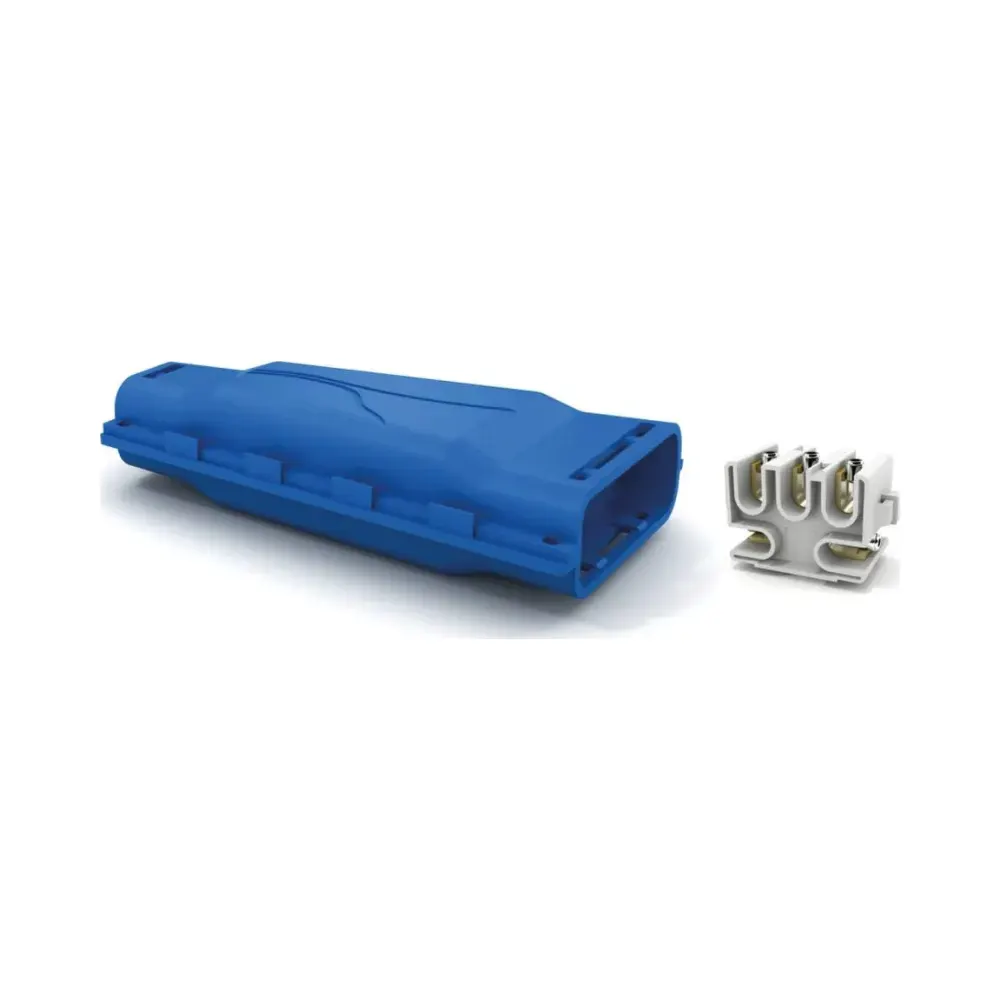

SHARK 535Y IP68 Gel Insulated Branch Joint c/w 5 Core Connector 0.6/1 KV
Wiska SH6535/W – Pre-filled Gel Insulated Y Joint – 35 mm²
The Wiska SHARK 535Y IP68 Gel Insulated Y Joint provides a ready-to-use solution for branch connections in electrical systems. Featuring pre-filled silicone gel and a robust polyamide housing, it eliminates the need for mixing or pouring, ensuring immediate and reliable operation. This joint is designed for low- and medium-voltage systems up to 1 kV, delivering excellent insulation and mechanical strength.
Detailed Features and Functionality

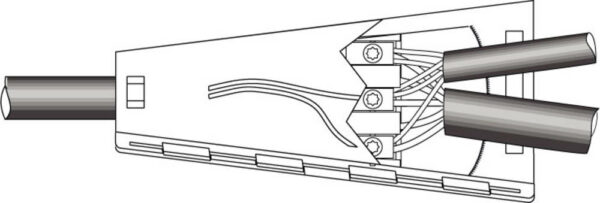

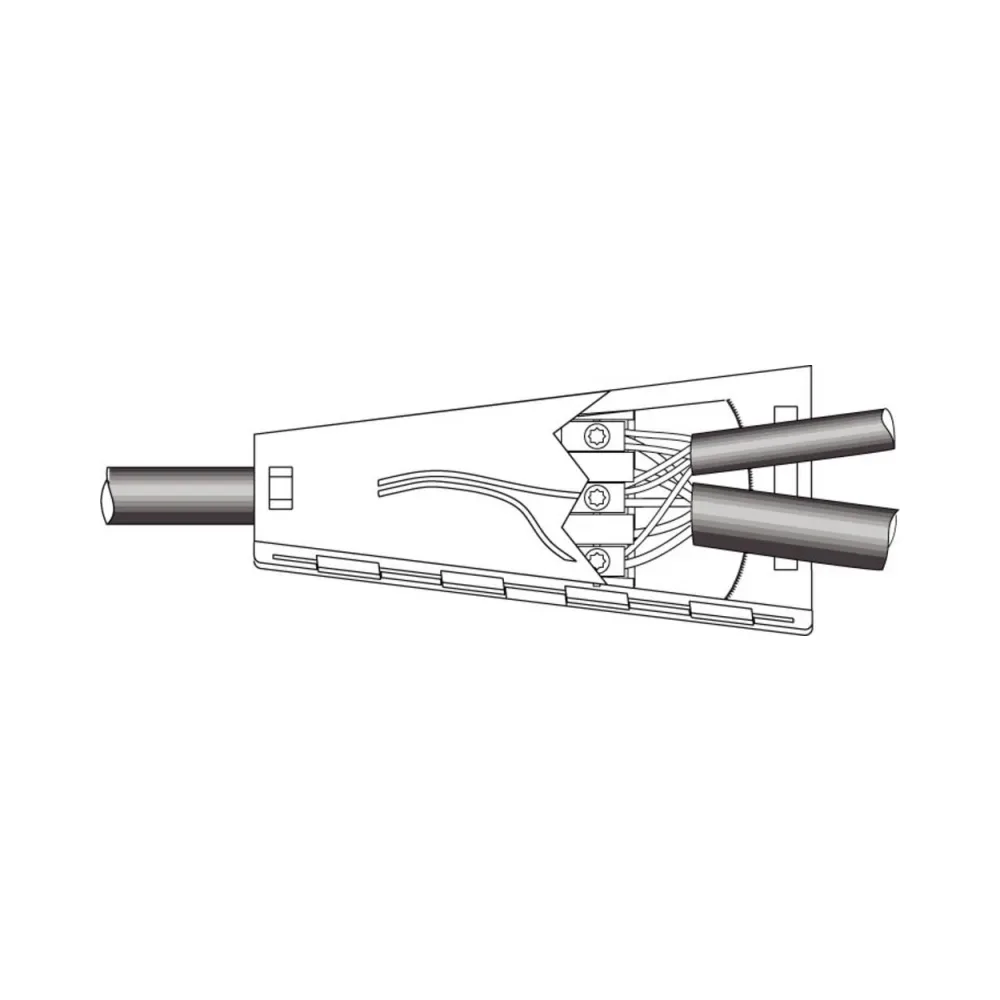

The SHARK 535Y combines convenience and durability for Y-shaped branch connections. Its pre-filled silicone gel offers superior electrical insulation, while the polyamide housing ensures good mechanical strength and resistance to environmental factors. The IP68 rating provides robust protection against water and dust ingress, making it suitable for outdoor and harsh environments.
Operating within a temperature range of -20°C to 90°C, this joint is versatile across various applications. It accommodates main cables ranging from 6mm² to 50mm² and branch cables from 1.5mm² to 25mm², offering flexibility for different setups. The included terminal block supports up to 35mm² cores, ensuring secure and efficient connections.
Measuring 260x130x65mm, the compact design simplifies installation and saves space. Additionally, its re-enterable design allows for future adjustments, enhancing its long-term usability. The joint’s self-extinguishing material passes glow wire tests, further ensuring safety.
Key Features of Wiska SHARK 535Y IP68 Gel Y Joint
- Material: Durable polyamide housing with pre-filled silicone gel.
- Temperature Range: Operates effectively between -20°C and 90°C.
- Voltage Compatibility: Designed for 0.6 kV to 1 kV systems.
- Cable Capacity:
- Main cable: 6mm² to 50mm².
- Branch cable: 1.5mm² to 25mm².
- Connector Capacity: Supports up to 35mm² cores with 2 to 5 cables.
- External Dimensions: 260x130x65mm for compact and efficient installation.
- IP68 Rated: Excellent protection against dust and water ingress.
- Glow Wire Test: Self-extinguishing material for enhanced fire safety.
- Ease of Use: Pre-filled, re-enterable, and ready for immediate operation.
- Included Accessories: Terminal block for secure connections.
