Description

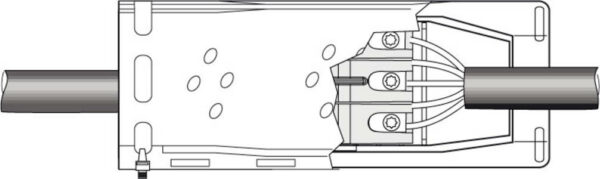

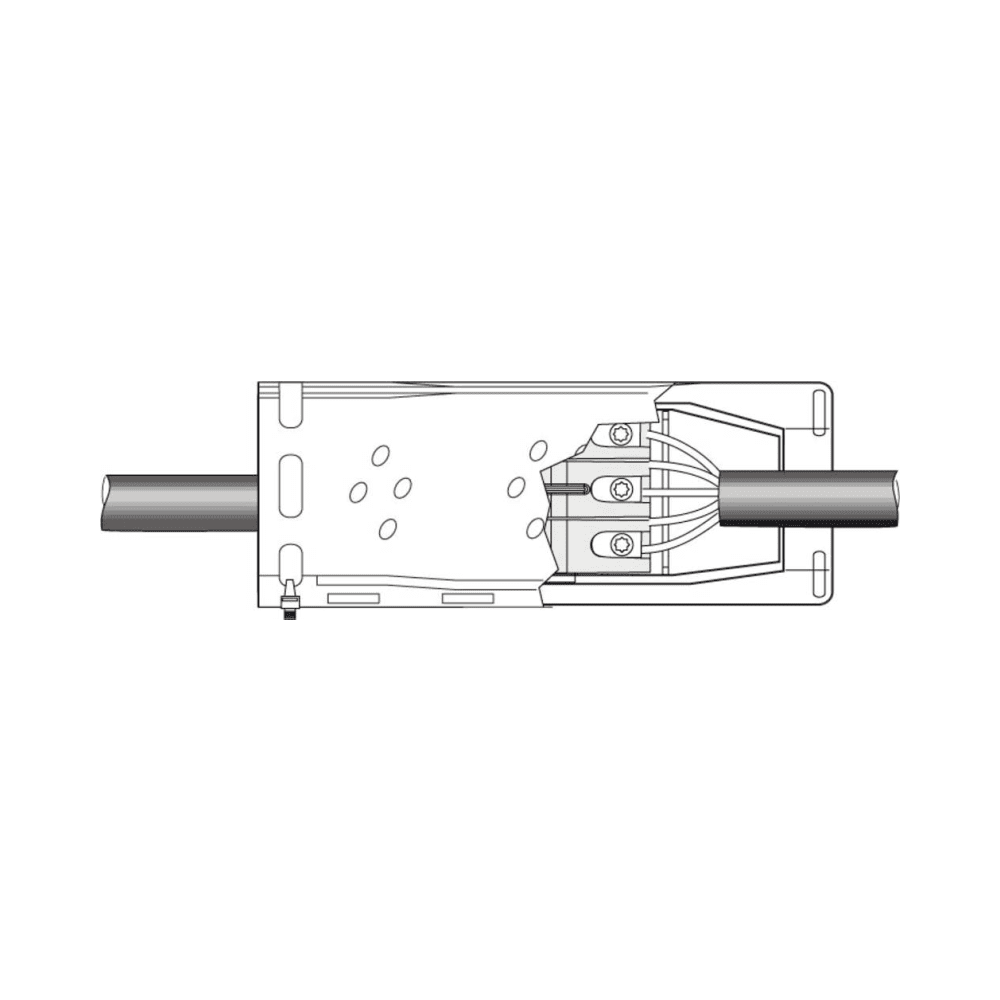

IPX8 Gel Insulated Straight Joint with Crimp Connector
Wiska Classic Series SHARK 525W/C
The Wiska Classic Series SHARK 525W/C Straight Joint is a pre-filled gel insulated cable joint designed for quick, secure, and waterproof connections. Ideal for steel wire armoured (SWA) cables, it provides excellent electrical insulation and mechanical strength, making it perfect for demanding environments.
With an IPX8 rating, this joint offers superior water and dust protection, ensuring long-lasting reliability. The ready-to-use design requires no mixing or pouring, allowing for immediate operation and re-entry when needed.
Key Features & Benefits of Wiska SHARK 525W/C IPX8 Gel Insulated Straight Joint
- Pre-filled with silicone gel, eliminating curing time and mess
- Re-enterable design for future modifications
- IPX8-rated for waterproof and dustproof protection
- Self-extinguishing polyamide casing for added safety
- Excellent electrical insulation for secure and stable connections
- High mechanical strength ensures durability in harsh environments
- No expiry date, allowing long-term storage and use

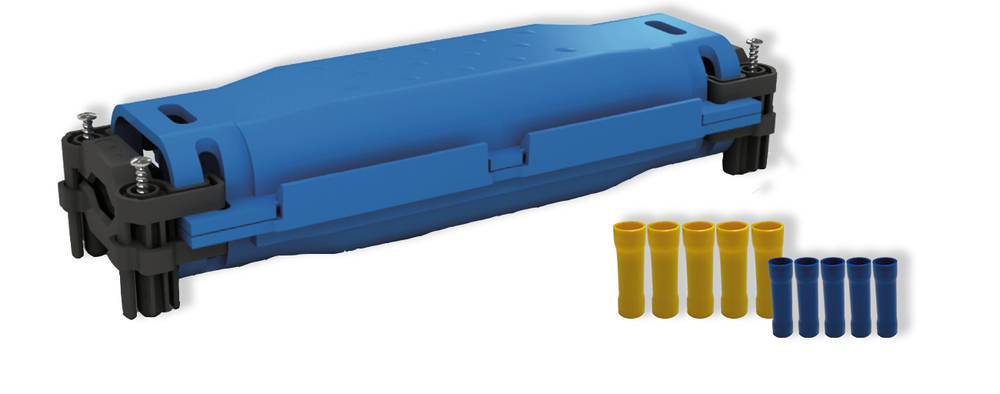

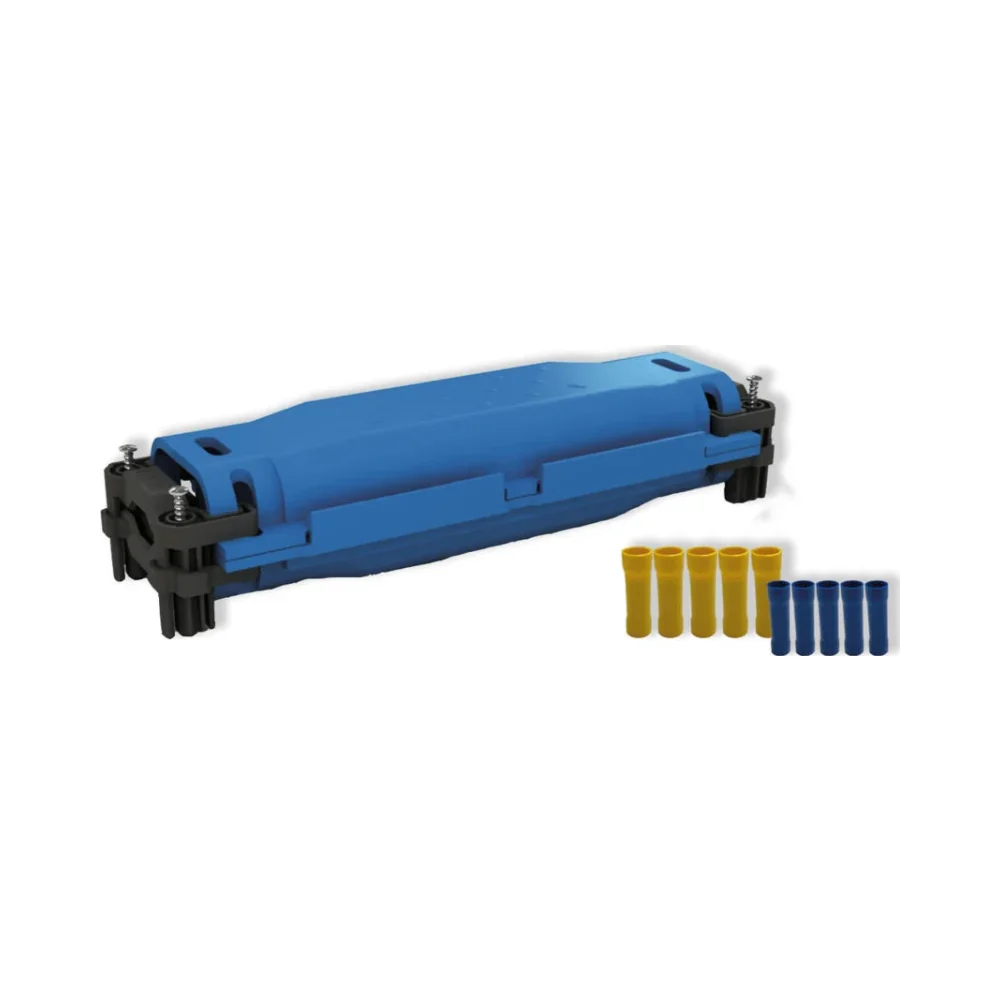

Includes:
- Pre-insulated crimp connector for secure wire connections
- Retention clamp for cable stability
- Earth braid for grounding
- Constant force roll springs for improved connection integrity
Cable Compatibility:
- 3-core: 2.5 – 16mm²
- 4-core: 2.5 – 16mm²
- 5-core: 2.5 – 10mm²
Specifications:
- Material: Polyamide
- Filling: Silicone Gel
- Temperature Range: -20°C to 90°C
- Glow Wire Test: Self-extinguishing
- Voltage: 0.6 kV – 1 kV
- Current Rating: 135A
- Terminals/Poles: 3 – 5 x 2.5 – 16mm²
- Cable Capacity: 3 – 5 cables
- External Dimensions (LxBxH): 69 x 180 x 40mm
- Type: SHARK 525W
The Wiska SHARK 525W/C Gel Insulated Straight Joint is a trusted solution for electricians and contractors, ensuring fast, waterproof, and long-lasting cable connections in even the most challenging conditions.
