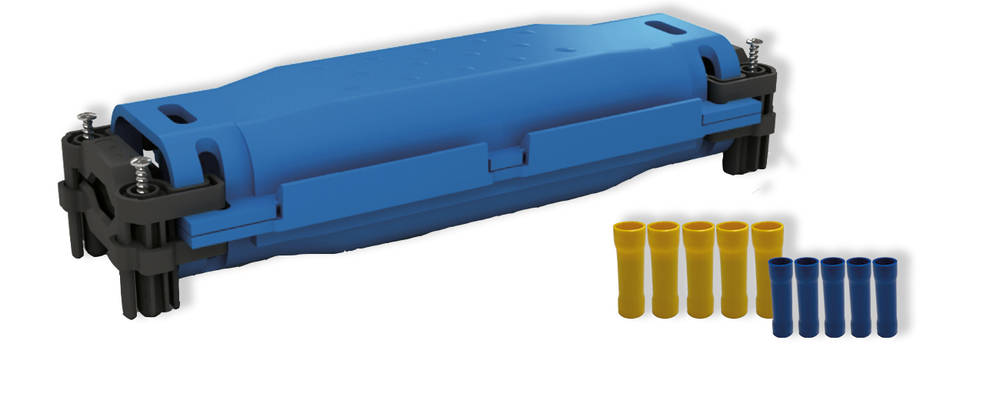

Wiska SHARK 506W/C IPX8 Pre-filled Gel Insulated Straight Joint

SKU: SH506W/C
Delivery usually within 1-3 working days*
Confirm Availability

The Wiska SHARK 506W/C IPX8 Gel Insulated Straight Joint offers quick, waterproof, and re-enterable cable connections. Pre-filled with silicone gel, it includes a crimp connector, earth braid, and retention clamp, ensuring durability and reliability for SWA and standard cables.

£29.46 + VAT

(incl. VAT £35.35)

Description

IPX8 Gel Insulated Straight Joint with Crimp Connector

Wiska Classic Series SHARK 506W/C

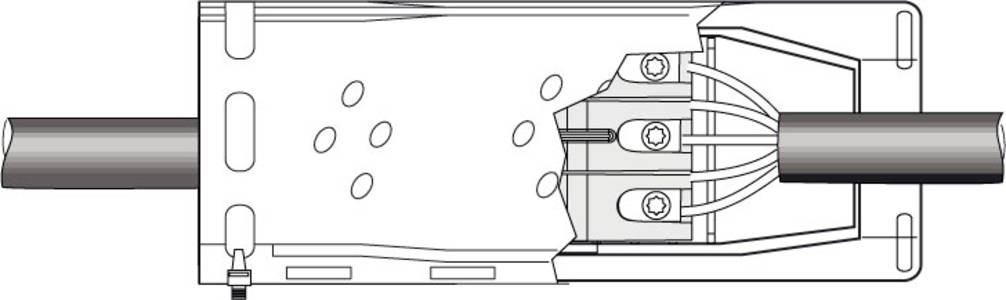

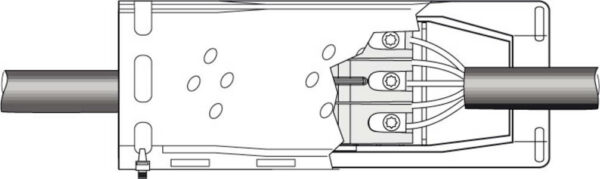

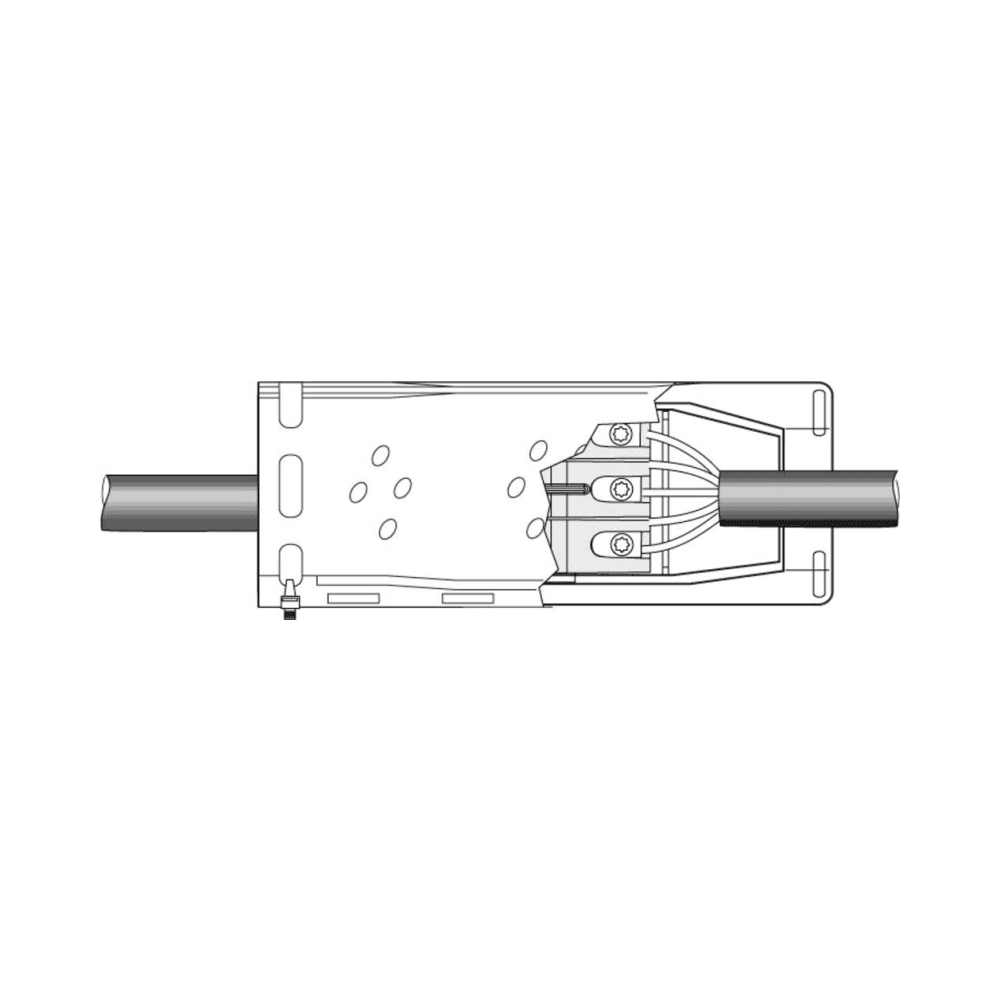

The Wiska Classic Series SHARK 506W/C Straight Joint is a pre-filled gel insulated cable joint designed for fast, secure, and waterproof connections. Ideal for steel wire armoured (SWA) cables, it provides excellent electrical insulation and mechanical strength, making it perfect for harsh and demanding environments.

With its IPX8 rating, this joint offers superior water and dust protection, ensuring long-term durability. The ready-to-use design requires no mixing or pouring, allowing for immediate operation and easy re-entry when needed.

Key Features & Benefits

  • Pre-filled with silicone gel, eliminating mixing and curing time
  • Re-enterable design allows for future modifications or repairs
  • IPX8-rated for waterproof and dustproof protection
  • Self-extinguishing polyamide casing for enhanced safety
  • Excellent electrical insulation ensures a stable and secure connection
  • Strong mechanical resistance, making it ideal for tough environments
  • No expiry date, allowing for long-term storage and use

Includes:

  • Pre-insulated crimp connector for a secure wire connection
  • Retention clamp for cable stability
  • Earth braid for grounding
  • Constant force roll springs for reliable contact pressure

Cable Compatibility:

  • 3-core to 5-core cables: 1.5 – 6mm²

Specifications:

  • Material: Polyamide
  • Filling: Silicone Gel
  • Temperature Range: -20°C to 90°C
  • Glow Wire Test: Self-extinguishing
  • Voltage: 0.6 kV – 1 kV
  • Current Rating: 80A
  • Terminals/Poles: 3 – 5 x 1.5 – 6mm²
  • Cable Capacity: 3 – 5 cables
  • External Dimensions (LxBxH): 55 x 146 x 35mm
  • Type: SHARK 506W

The Wiska SHARK 506W/C Gel Insulated Straight Joint is the perfect solution for electricians and contractors needing fast, waterproof, and long-lasting cable connections in industrial, outdoor, and underground installations.

Downloads

View Product Data Sheet

Additional information

Brand

Wiska
