Description
IP56 HNA Brass Junction Box – 12 – 14.5 mm
Wiska 1156-3xZ14

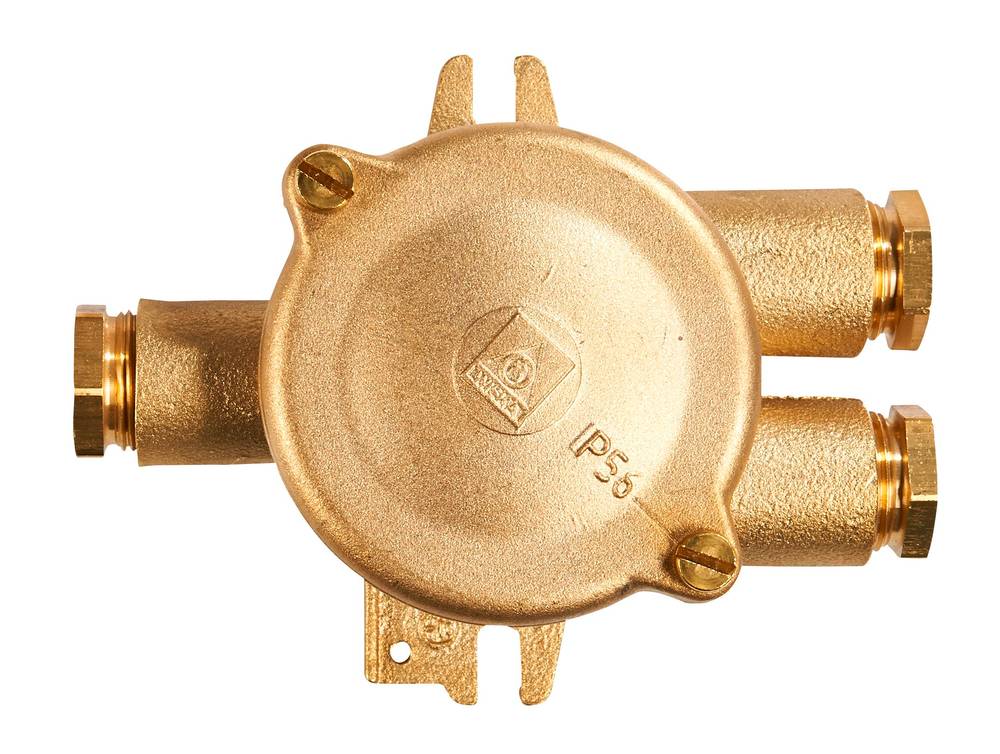

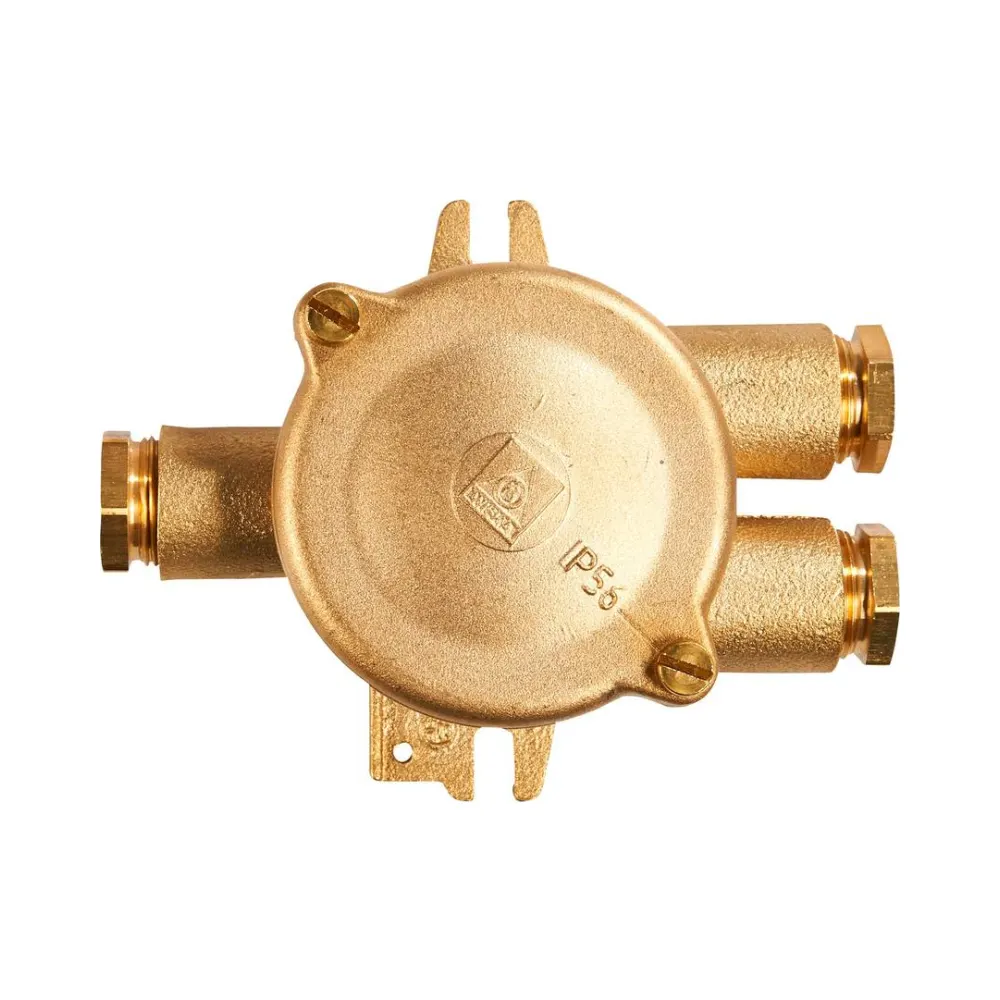

The Wiska 1156-3xZ14 IP56 HNA Brass Junction Box is expertly engineered to provide secure and reliable electrical connections in the most challenging environments. Constructed from durable brass, this junction box is designed to accommodate armoured cables with diameters ranging from 12 mm to 14.5 mm. Its IP56 protection rating ensures outstanding resistance to dust, water, and environmental stressors, making it ideal for engine rooms, outdoor installations, and indoor workspaces.
Key Features of Wiska 1156-3xZ14 IP56 HNA Brass Junction Box
- Durable Construction: Made from premium brass for exceptional strength and corrosion resistance.
- IP56 Protection: Provides robust protection against dust and water ingress, ideal for demanding environments.
- Versatile Applications: Suitable for engine rooms, outdoor environments, and indoor electrical systems.
- Secure Cable Management: Designed to support armoured cables with diameters from 12 mm to 14.5 mm.
Technical Specifications
- Type: 1156-3xZ14
- Voltage: 500 V
- Current: 16 A
- Protection Class: IP56
- Material: Brass (Junction Box & Cable Gland)
- Cable Gland Type: M24x1.5
- Cable Diameter Range: 12 mm to 14.5 mm
- Type of Cable: Armoured

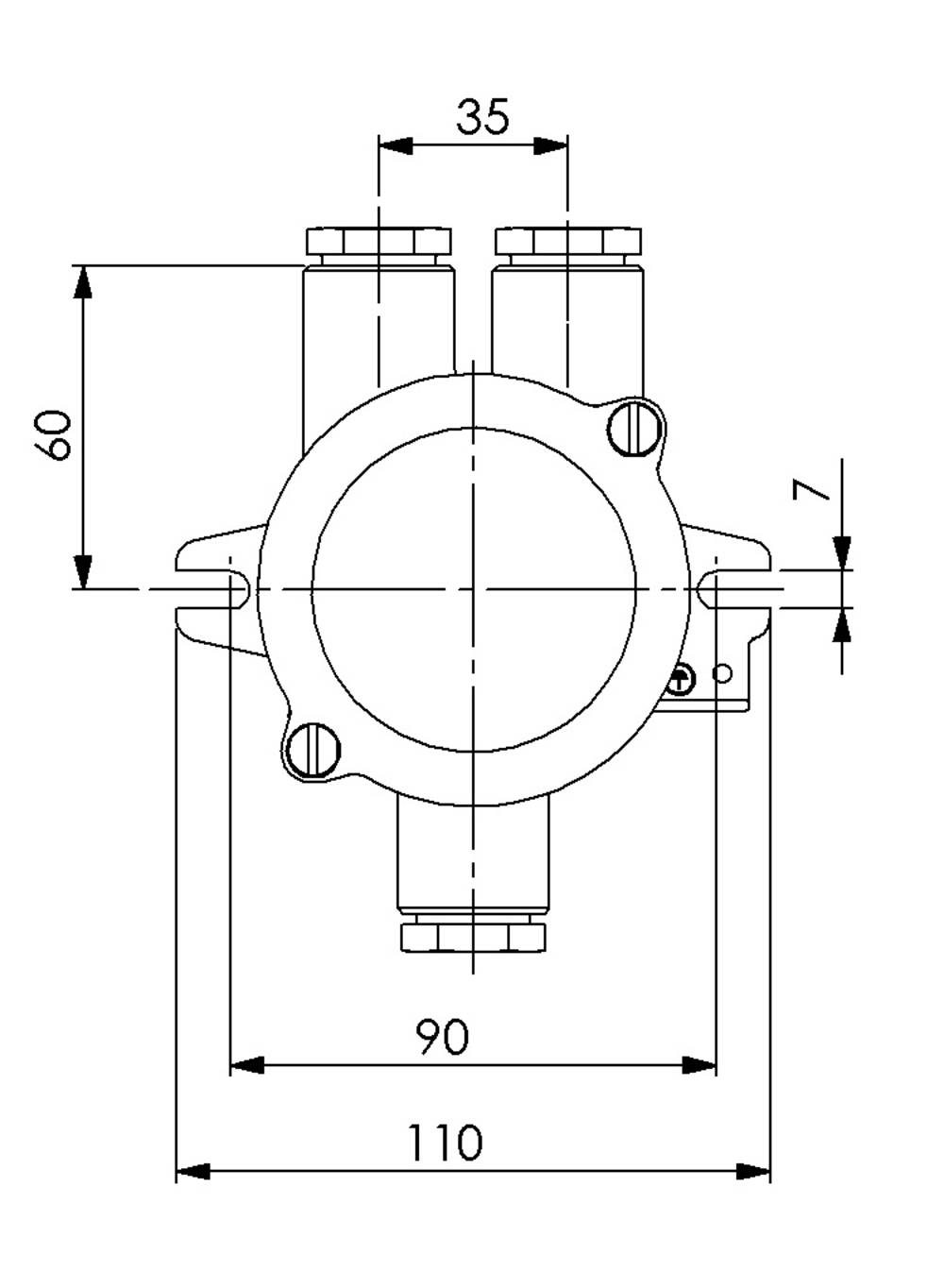

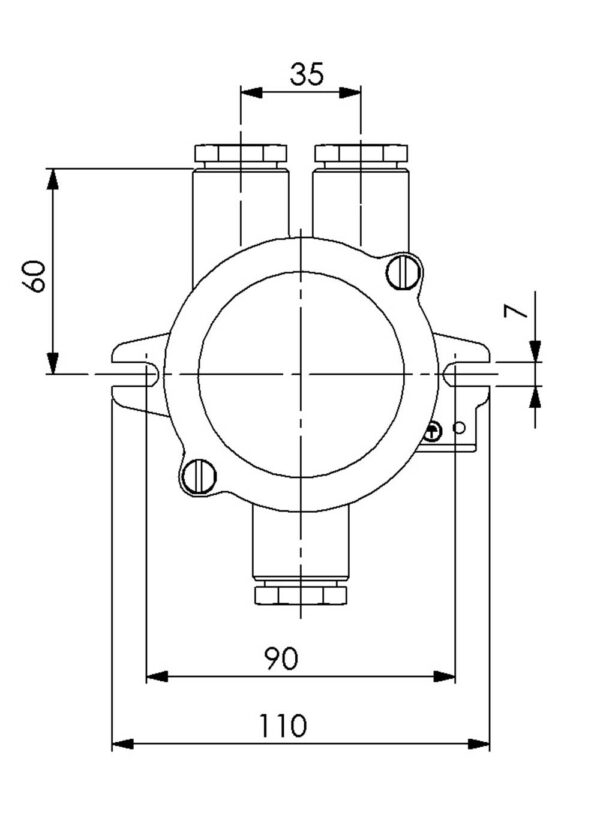

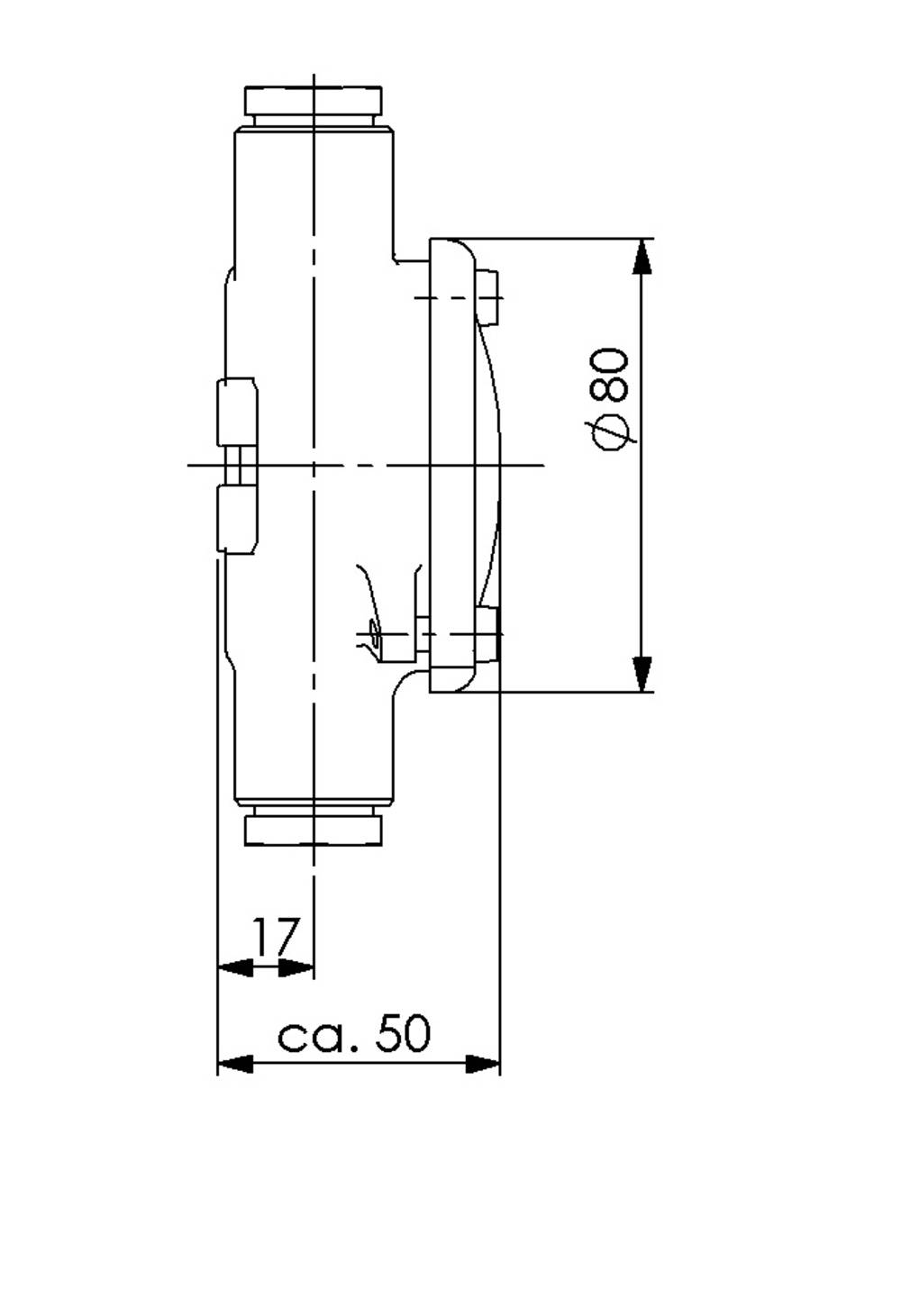

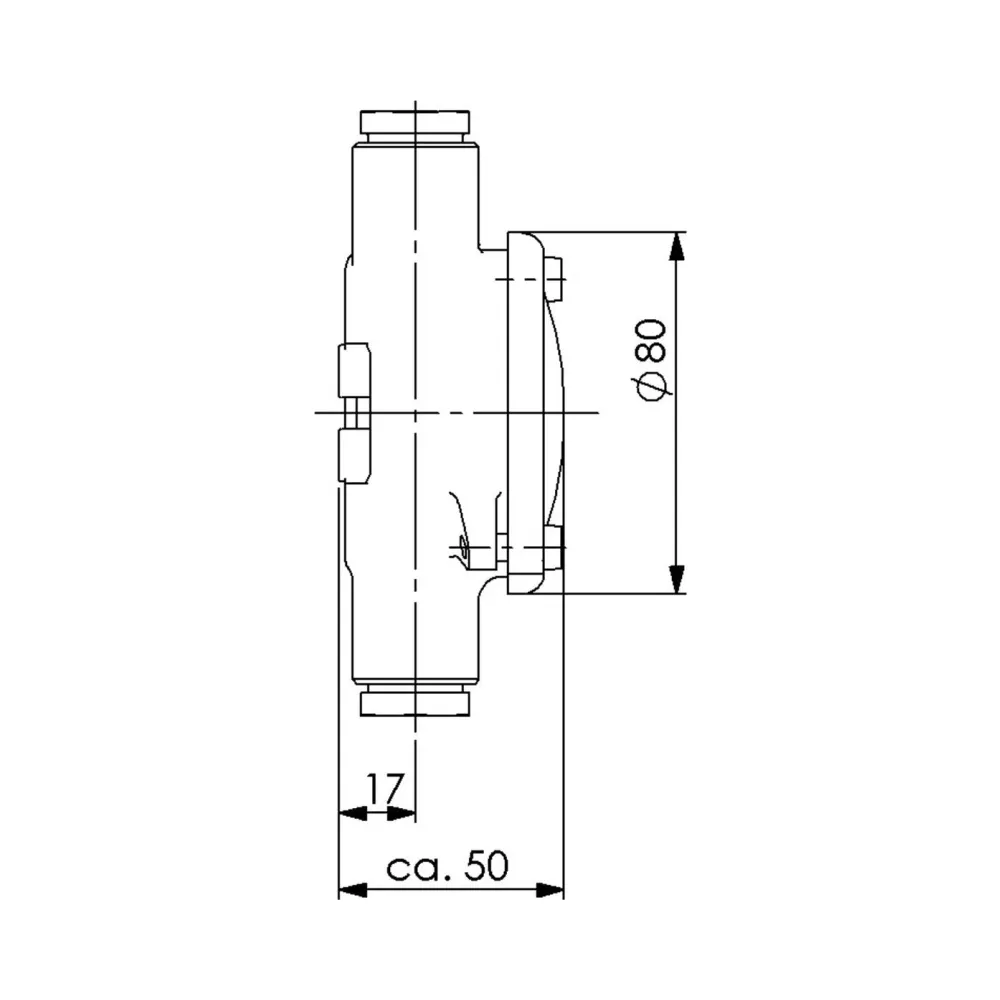

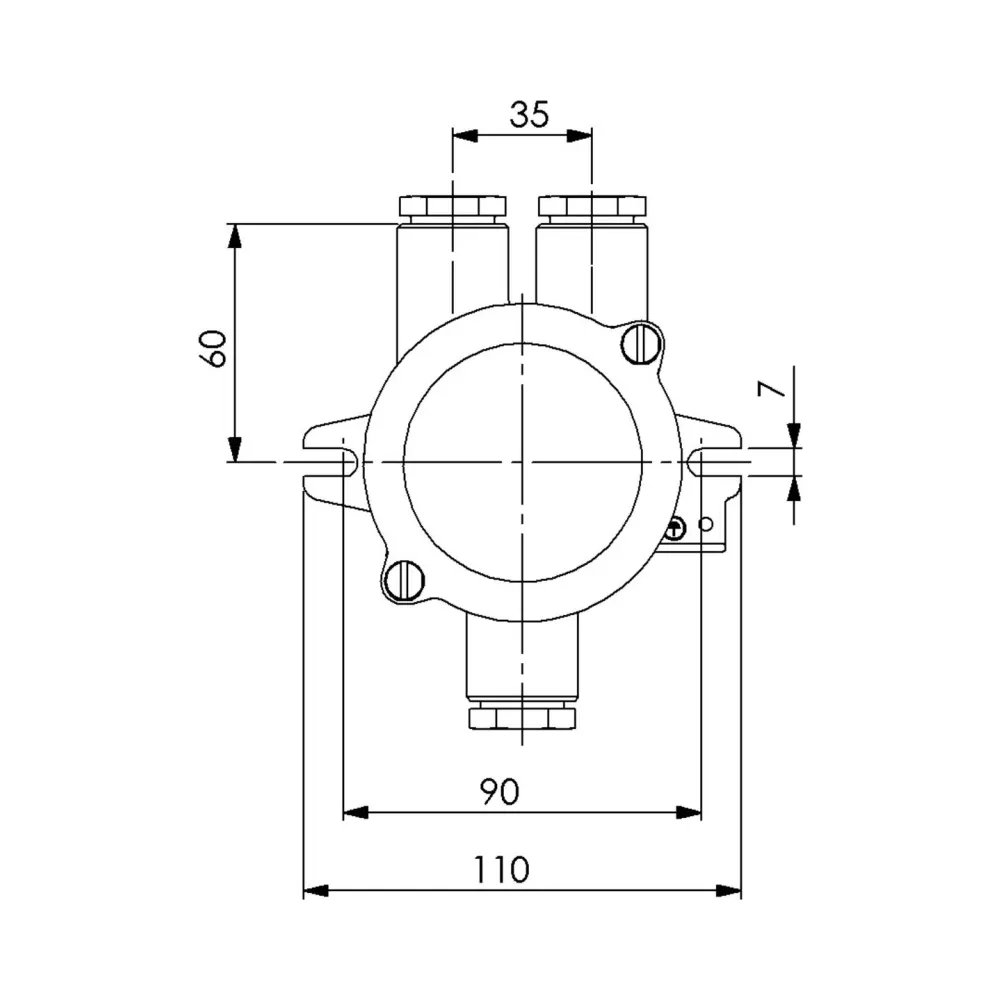

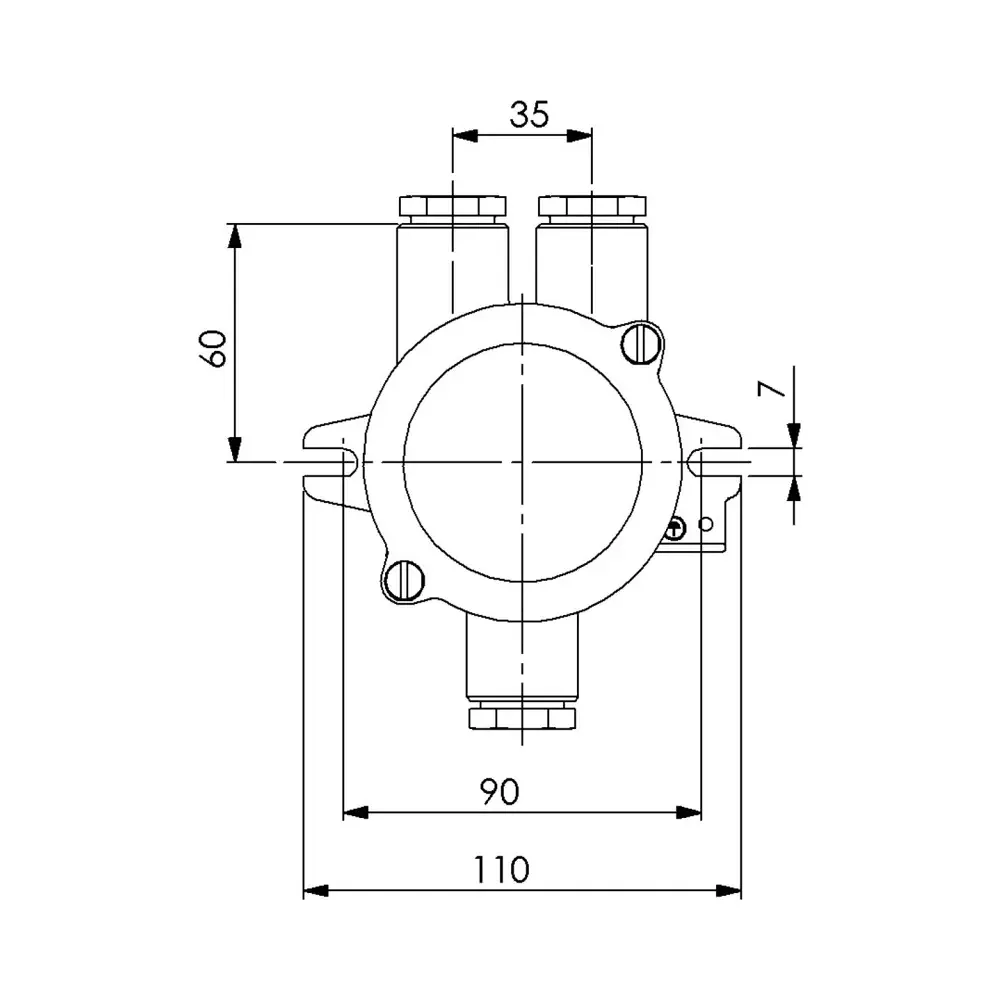

- External Dimensions (LxWxH): 110x120x50 mm
- Mounting: Surface mounting
- Temperature Range: -25°C to +45°C
- Rated Cross Section: 2.5 mm²
- Equipment: Clamp
- Terminals/Poles: 4-pole, 2.5 mm²
- Operational Areas: Engine rooms, outdoor environments, indoor workspaces
- Norm Compliance: DIN 89250
- Weight: 0.8 kg
Why Choose the Wiska 1156-3xZ14 Brass Junction Box?
The Wiska 1156-3xZ14 Brass Junction Box offers superior durability and secure electrical connections, making it an excellent choice for professionals working in harsh environments. Its rugged brass construction and IP56-rated protection ensure long-lasting performance, while its compatibility with armoured cables adds versatility across different applications.
