Description

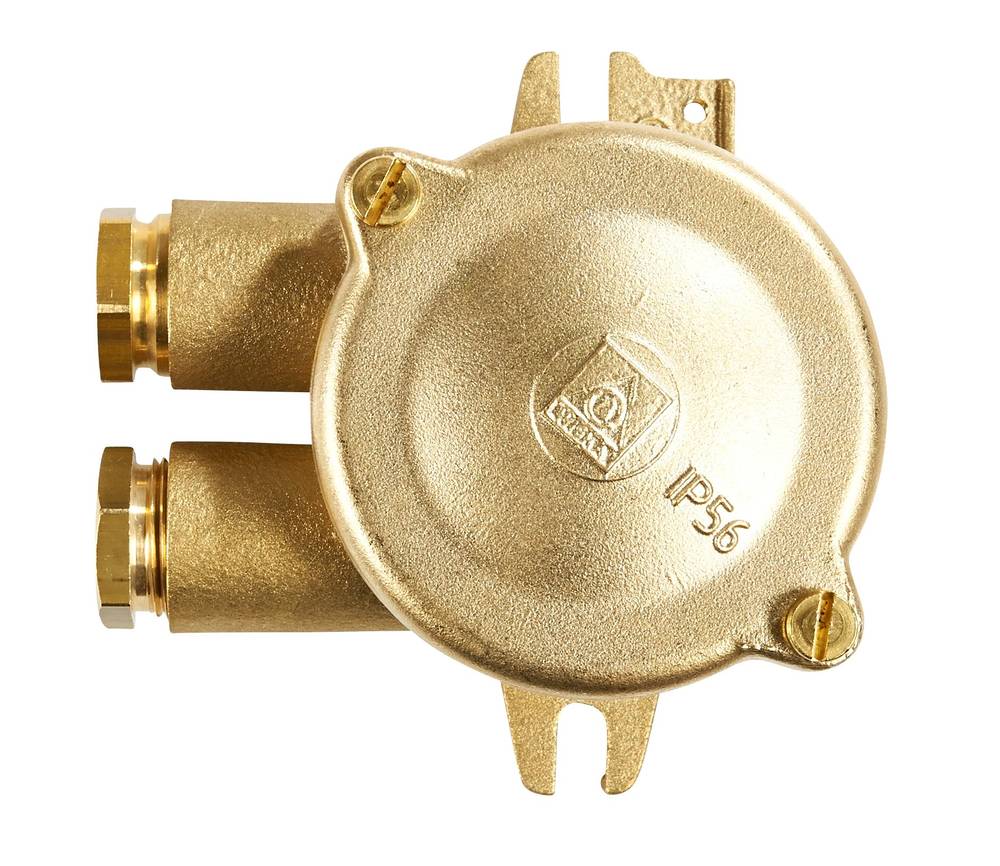

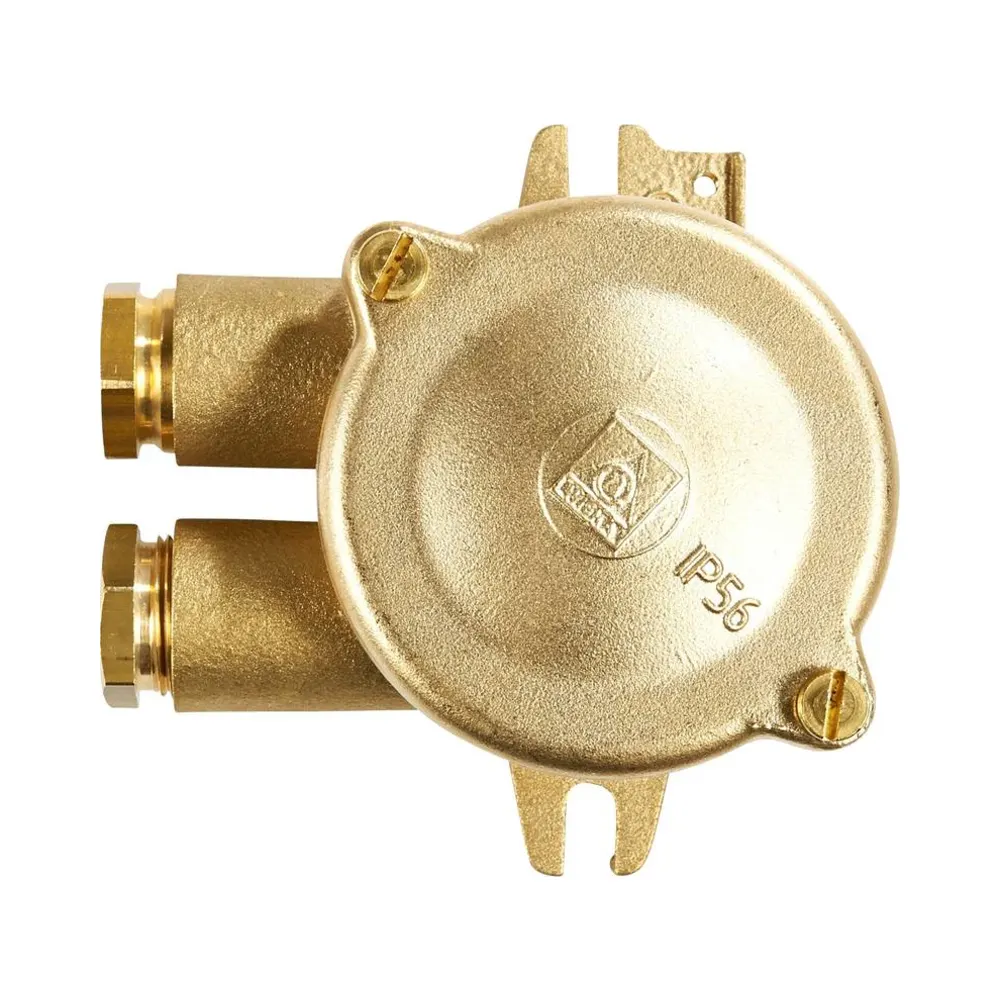

IP56 HNA Brass Junction Box – 10 – 12.5 mm
Wiska 1150-2xZ12
The Wiska 1150-2xZ12 IP56 HNA Brass Junction Box is designed to provide secure and reliable electrical connections in challenging environments. Crafted from durable brass, this junction box is built to accommodate armoured cables with diameters ranging from 10 mm to 12.5 mm. Its IP56 protection rating ensures outstanding resistance to dust and water, making it ideal for indoor, outdoor, and engine room installations.
Key Features of Wiska 1150-2xZ12 IP56 HNA Brass Junction Box
- Durable Construction: Made from high-quality brass for enhanced strength and corrosion resistance.
- IP56 Protection: Provides excellent resistance against dust and water, suitable for harsh environments.
- Versatile Application: Ideal for engine rooms, outdoor environments, and indoor workspaces.
- Secure Cable Management: Designed for armoured cables with diameters from 10 mm to 12.5 mm.
Technical Specifications
- Type: 1150-2xZ12
- Voltage: 500 V
- Current: 16 A
- Protection Class: IP56
- Material: Brass (Junction Box & Cable Gland)
- Cable Gland Type: M24x1.5
- Cable Diameter Range: 10 mm to 12.5 mm
- Type of Cable: Armoured

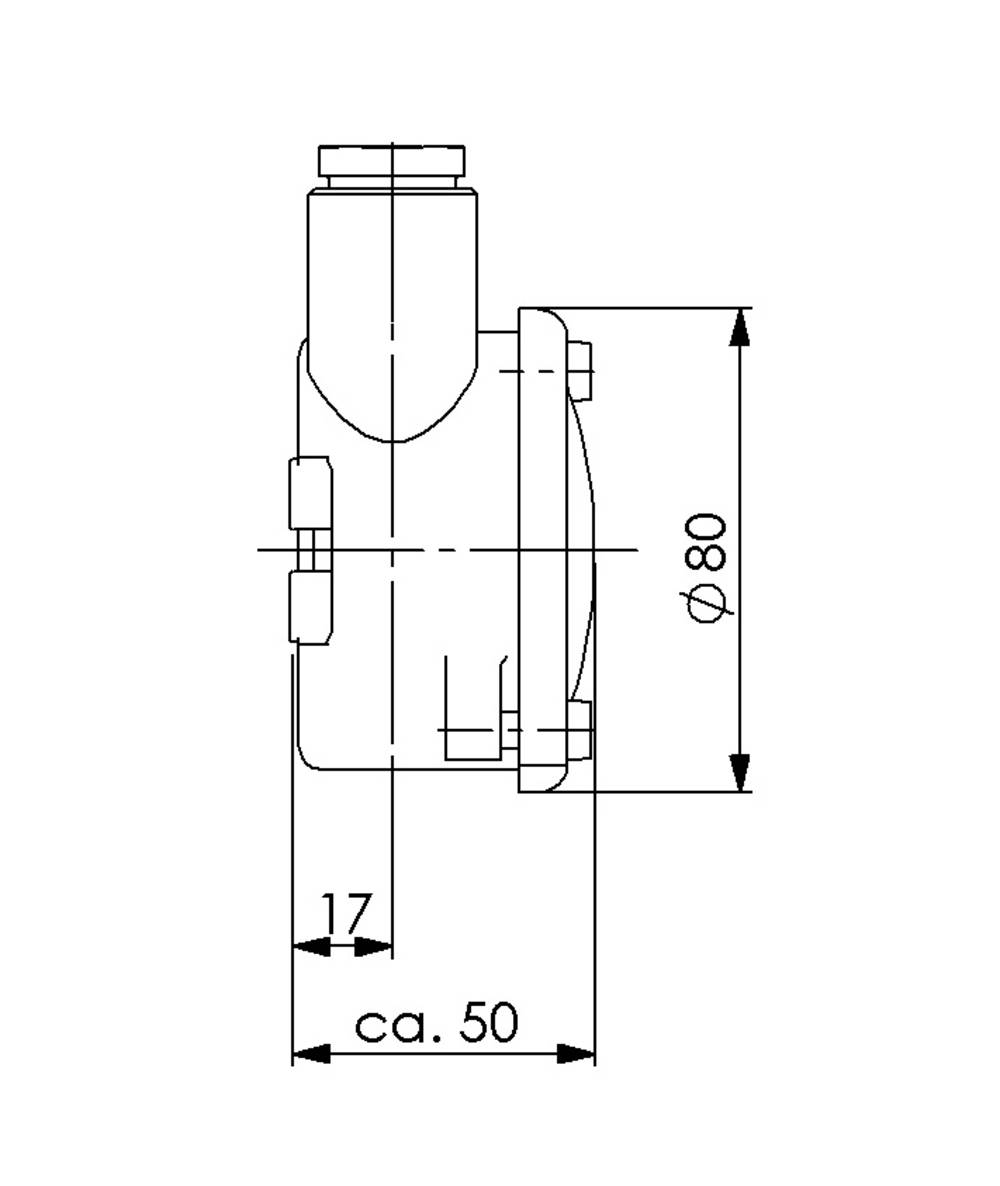

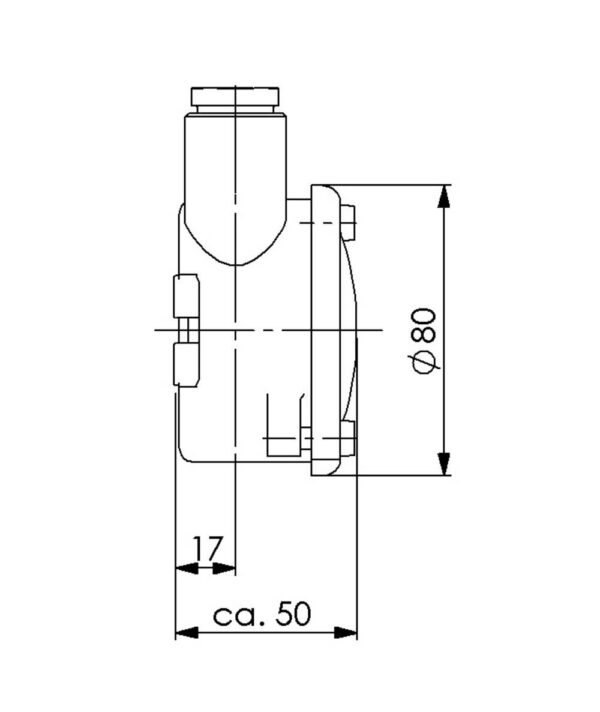

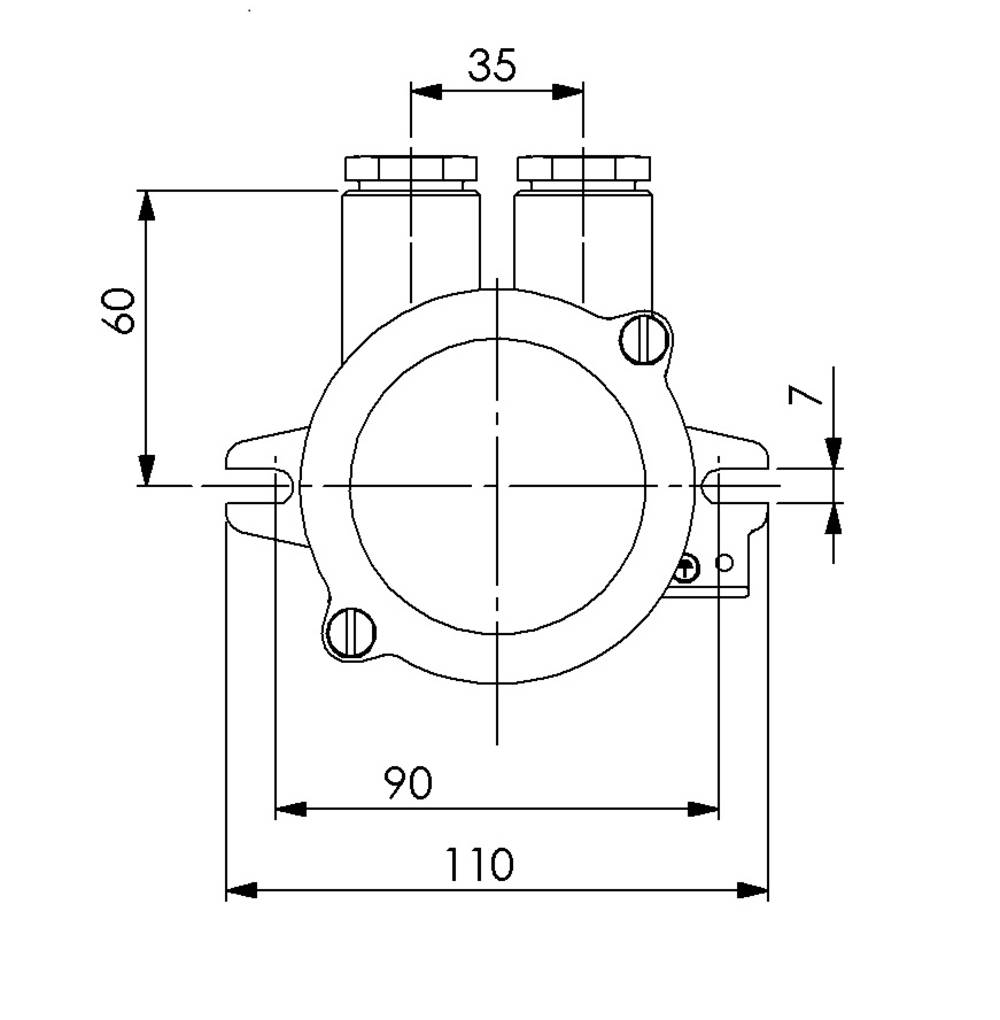

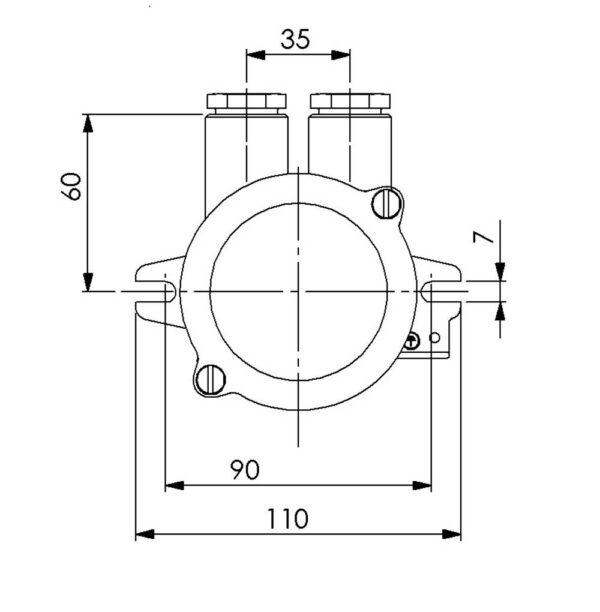

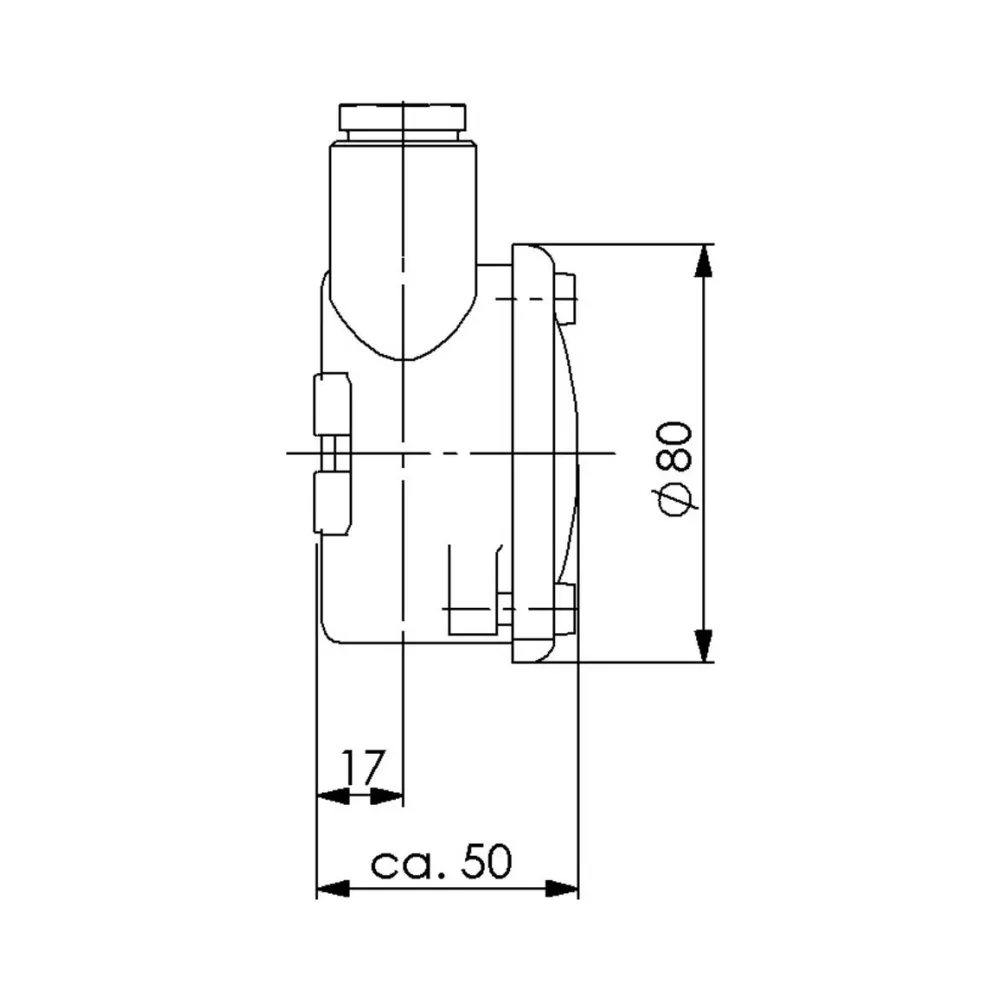

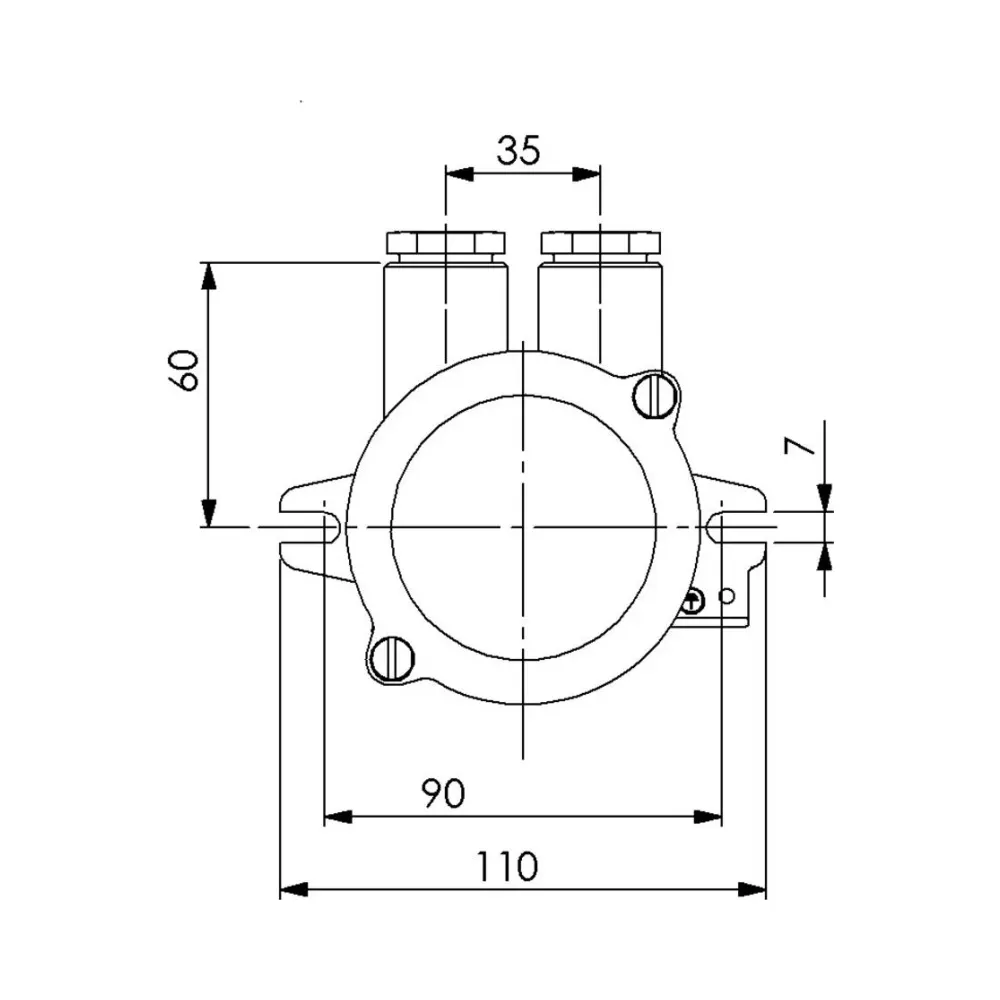

- External Dimensions (LxWxH): 110x100x50 mm
- Mounting: Surface mounting
- Temperature Range: -25°C to +45°C
- Rated Cross Section: 2.5 mm²
- Equipment: Clamp
- Terminals/Poles: 4-pole, 2.5 mm²
- Operational Areas: Engine rooms, outdoor environments, indoor workspaces
- Norm Compliance: DIN 89250
- Weight: 0.72 kg
Why Choose the Wiska 1150-2xZ12 Brass Junction Box?
The Wiska 1150-2xZ12 Brass Junction Box is the perfect choice for professionals requiring robust and secure electrical connections in harsh environments. Its strong brass construction combined with IP56-rated protection ensures long-lasting performance, while its compatibility with armoured cables adds versatility to its applications.
About Wiska
Wiska is a trusted name in the electrical industry, renowned for producing high-quality, innovative products designed to withstand the toughest conditions. Their brass junction boxes are globally recognised for their exceptional durability, safety, and performance.
