Description
IP56 HNA Brass Junction Box – 10 – 12.5 mm
Wiska 1150-2xW12

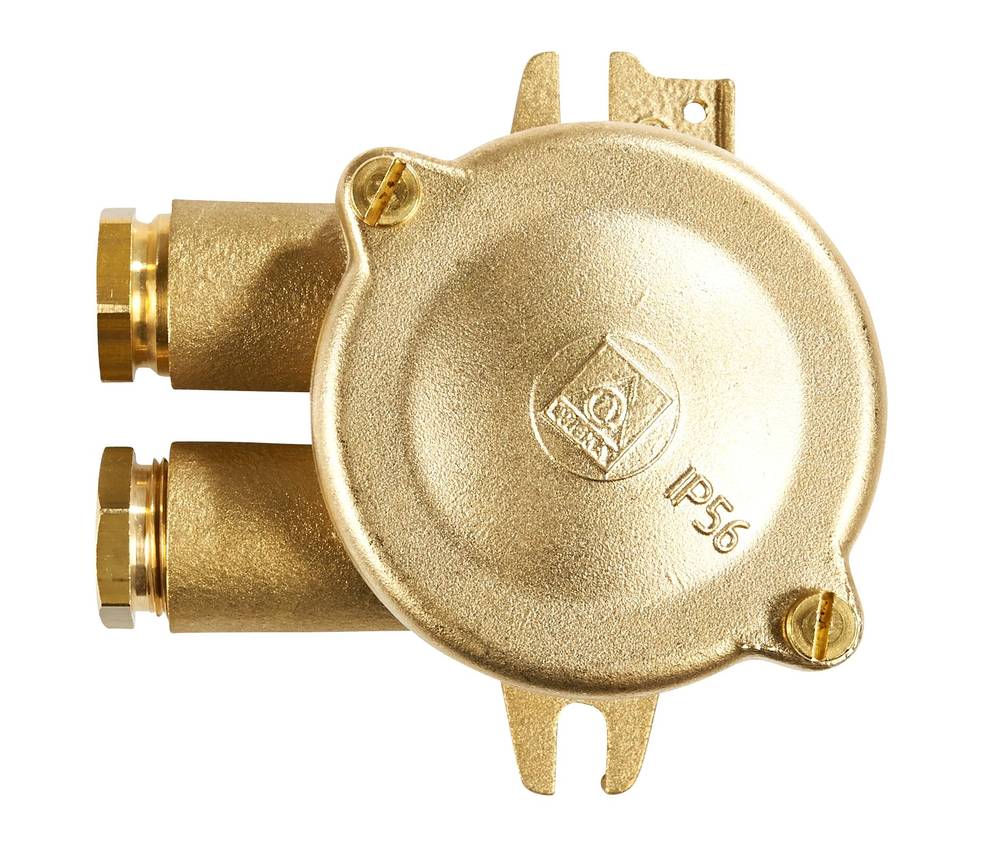

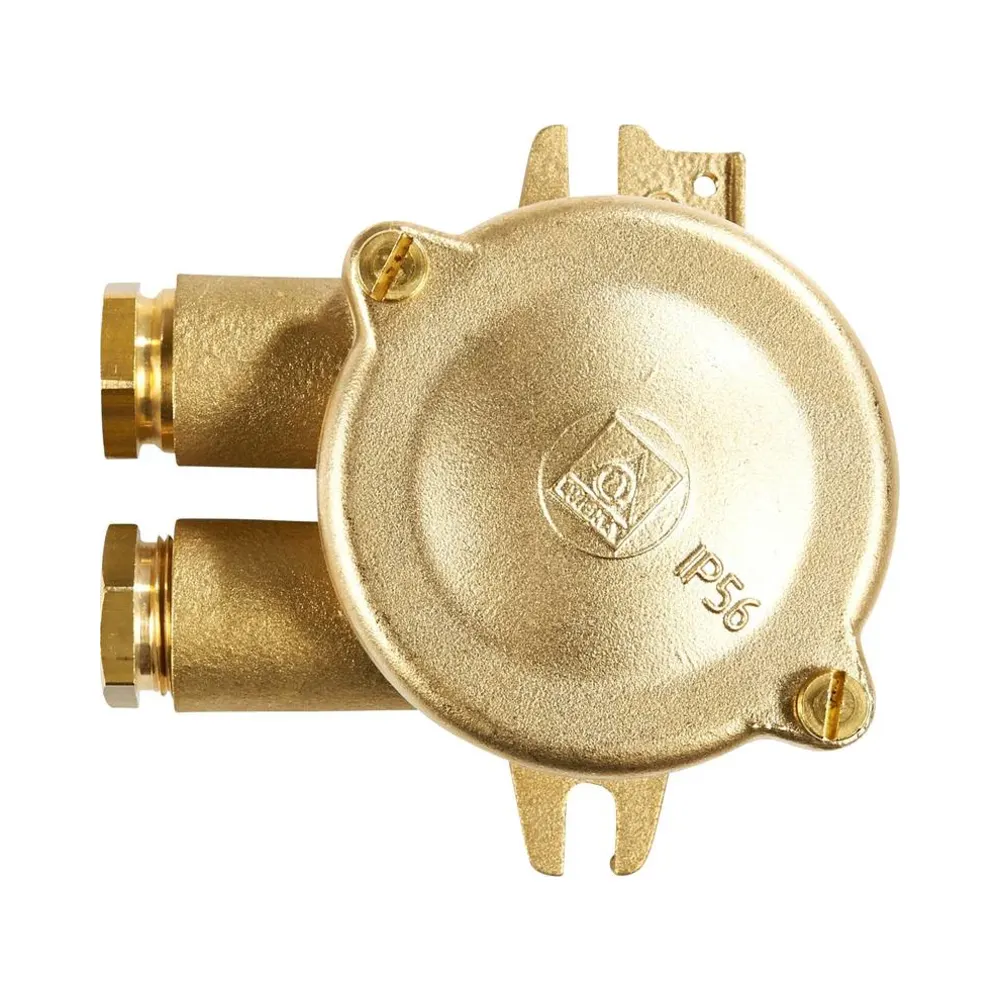

The Wiska 1150-2xW12 IP56 HNA Brass Junction Box is designed to ensure secure and reliable electrical connections in demanding environments. Constructed from durable brass, this junction box is built to accommodate non-armoured cables with diameters ranging from 10 mm to 12.5 mm.
Its IP56 protection rating guarantees exceptional resistance to dust and water, making it suitable for both indoor and outdoor installations, including engine rooms and workspaces exposed to harsh conditions.
Key Features
- Type: 1150-2xW12
- Voltage: 500 V
- Current: 16 A
- Protection Class: IP56
- Material: Brass (Junction Box & Cable Gland)
- Cable Gland Type: M24x1.5
- Cable Diameter Range: 10 mm to 12.5 mm
- Type of Cable: Non-armoured

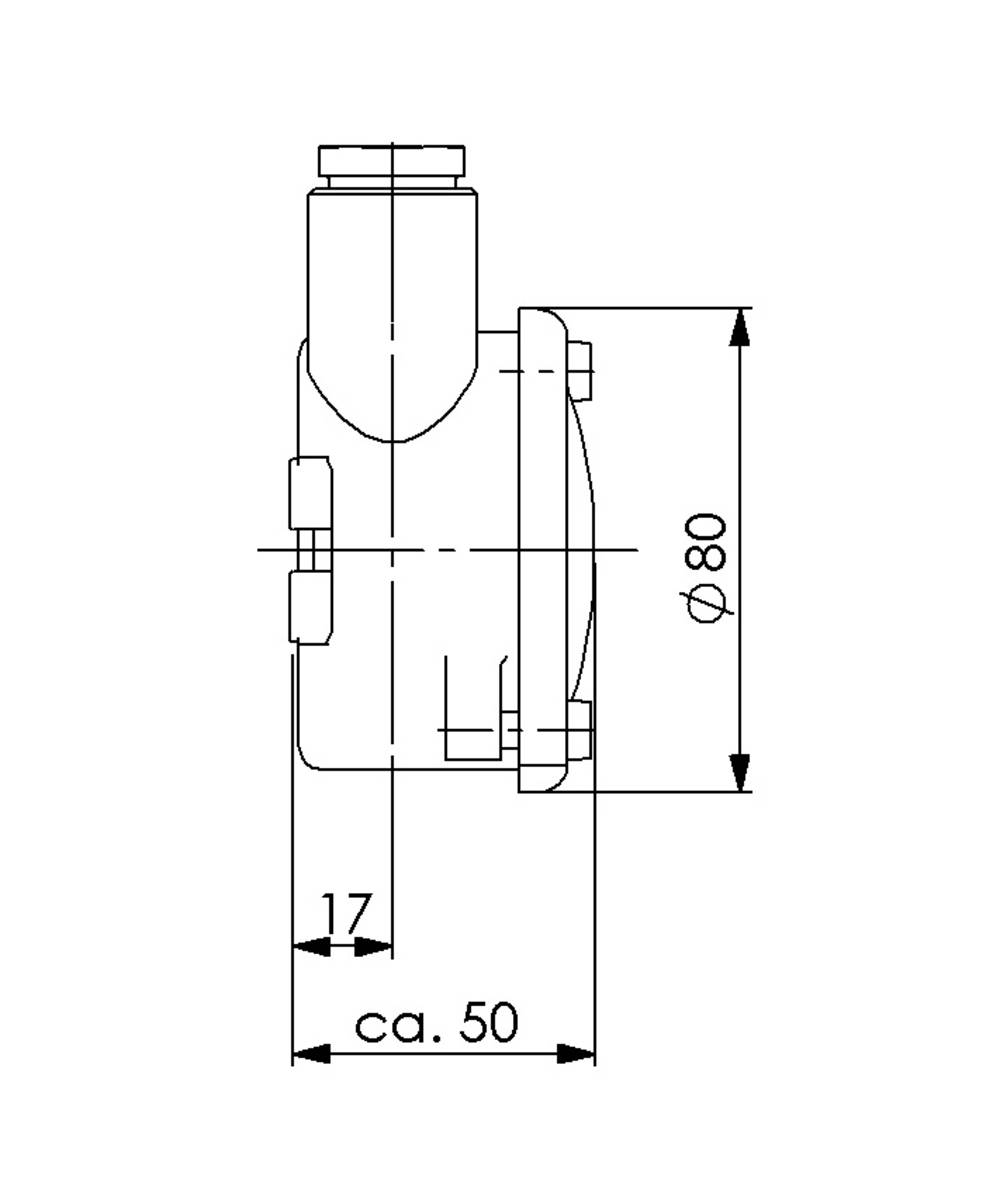

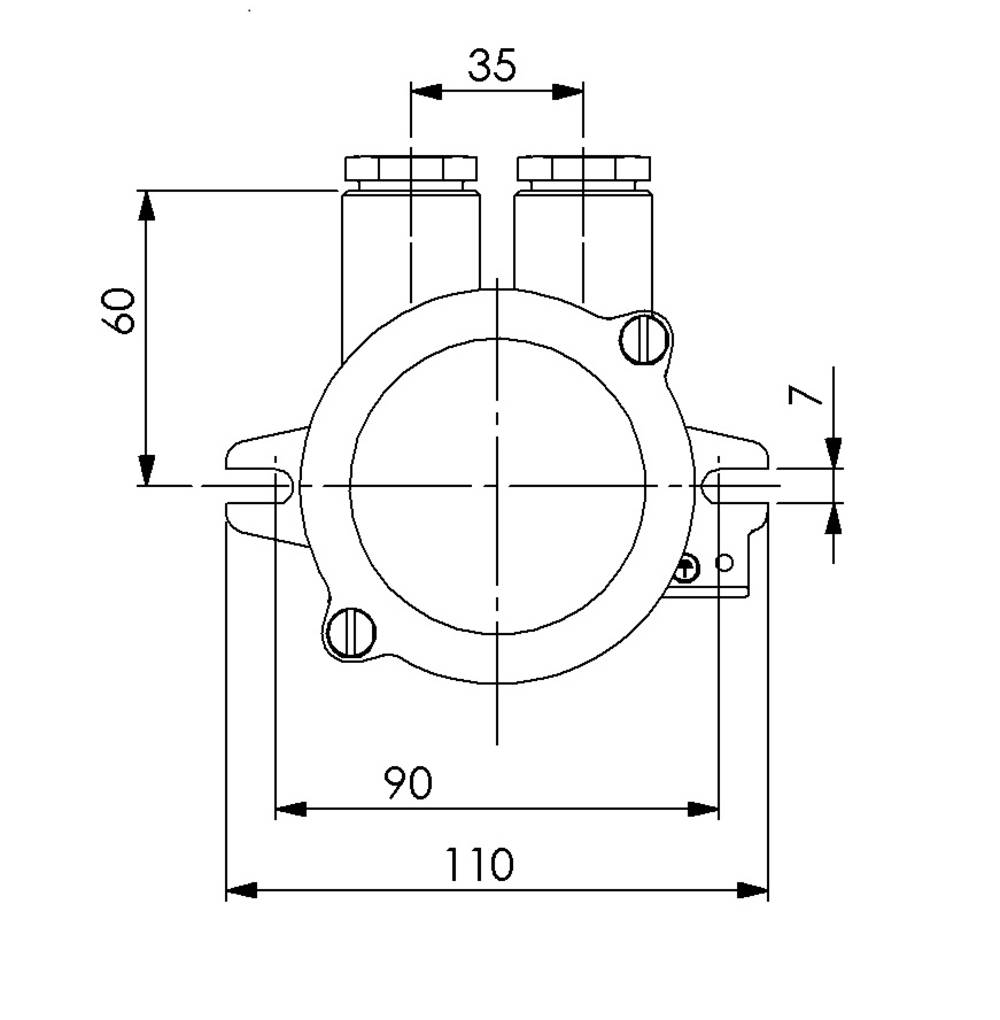

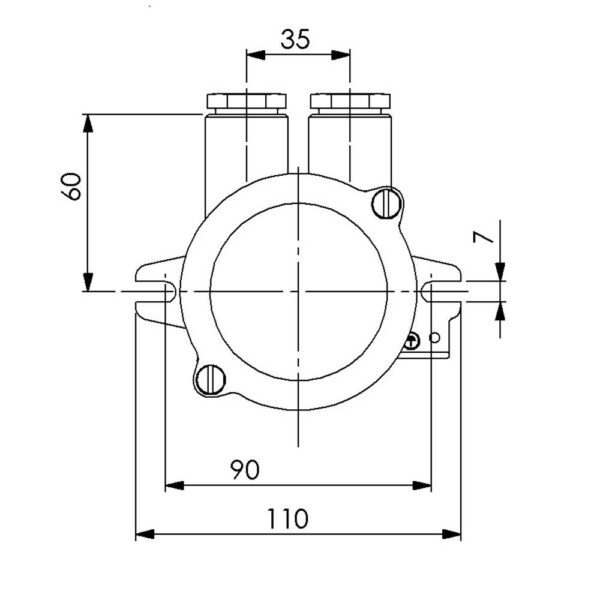

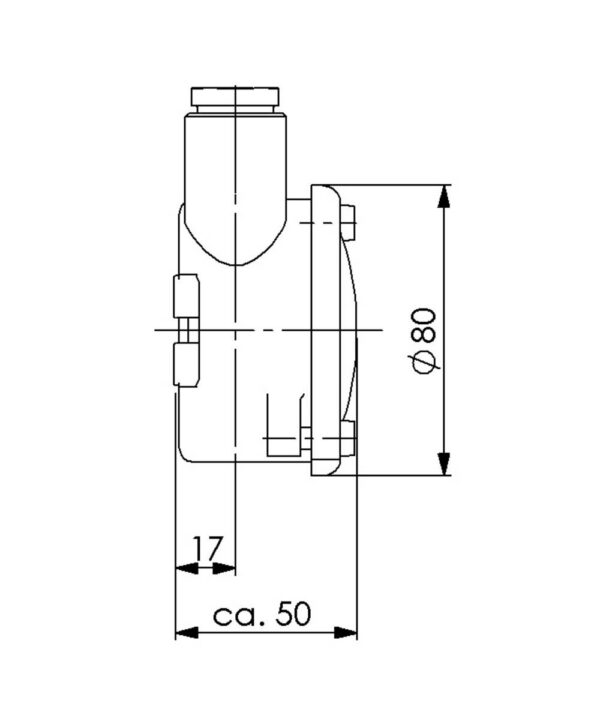

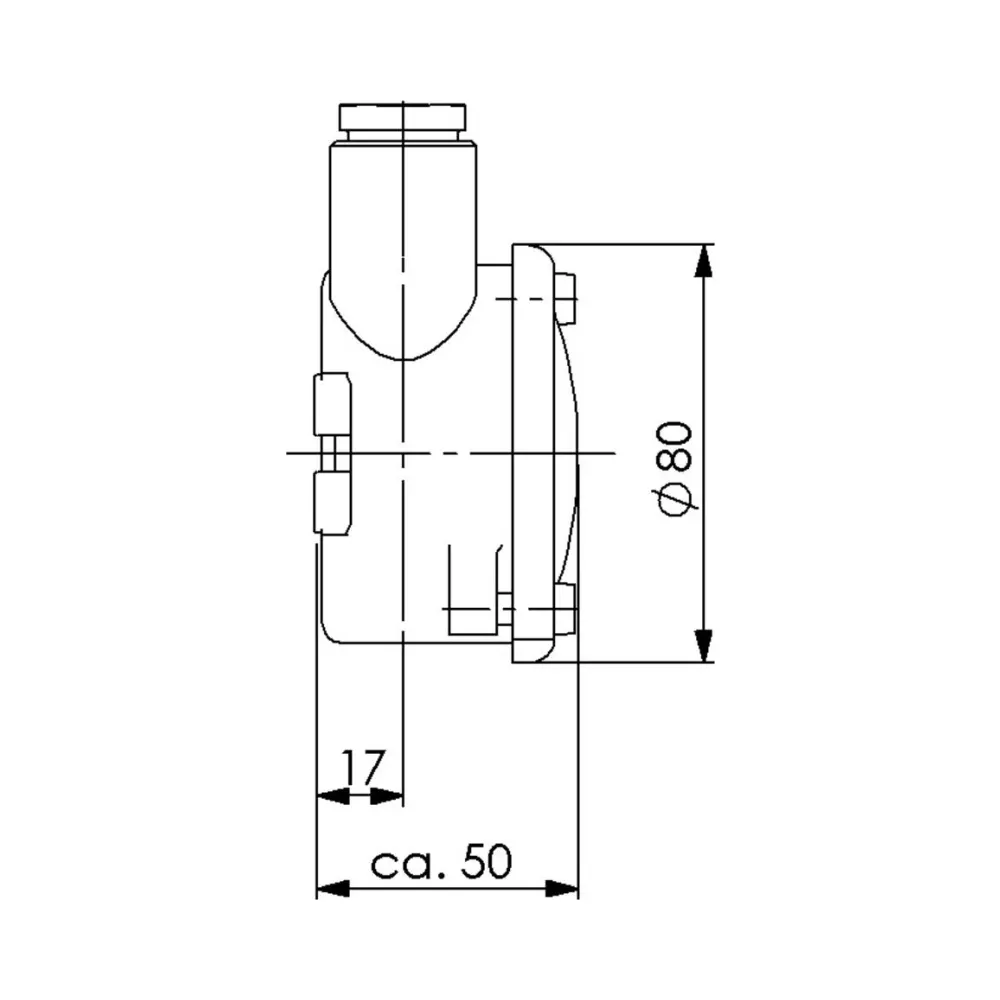

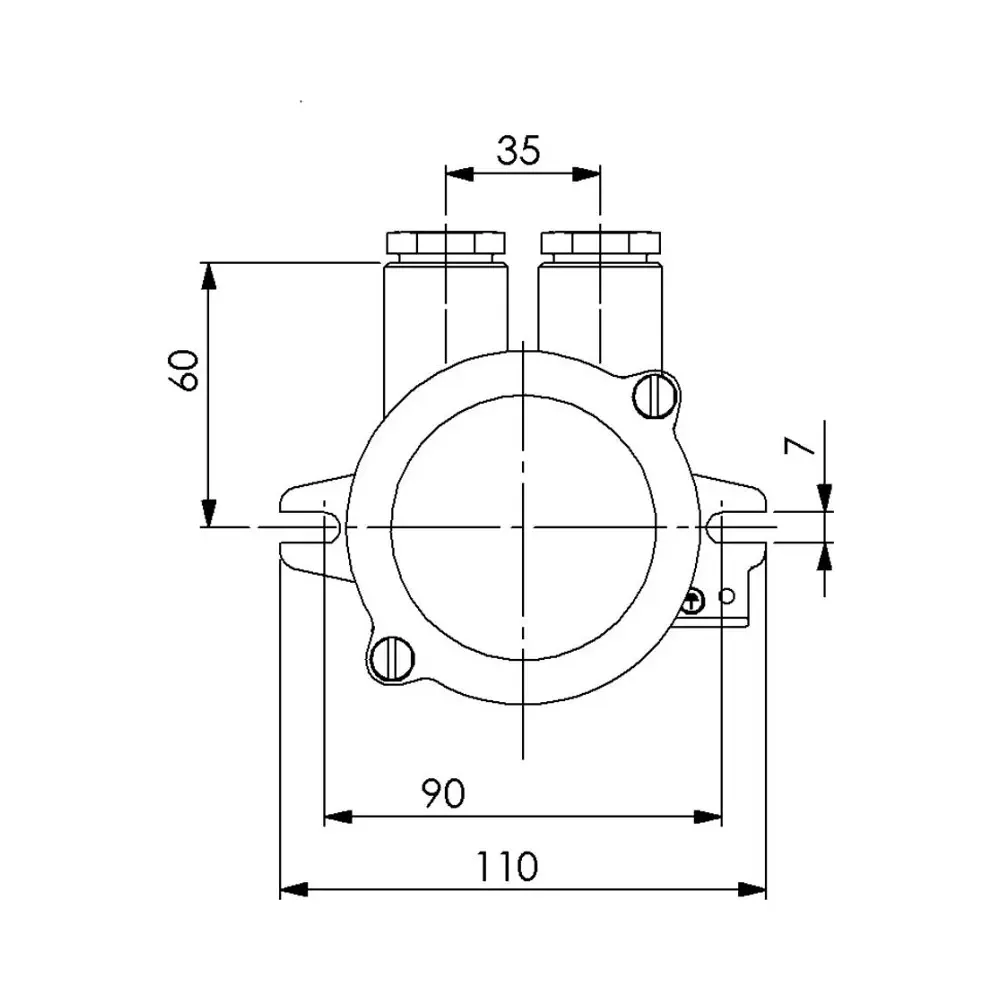

- External Dimensions (LxWxH): 110x100x50 mm
- Mounting: Surface mounting
- Temperature Range: -25°C to +45°C
- Rated Cross Section: 2.5 mm²
- Equipment: Clamp
- Terminals/Poles: 4-pole, 2.5 mm²
- Operational Areas: Engine rooms, outdoor environments, indoor workspaces
- Norm Compliance: DIN 89250
- Weight: 0.74 kg
Why Choose the Wiska 1150-2xW12 Brass Junction Box?
The Wiska 1150-2xW12 Brass Junction Box offers outstanding durability and protection, making it the ideal choice for professionals working in challenging conditions. Its strong brass construction, combined with IP56-rated protection, ensures long-lasting performance, while its compatibility with non-armoured cables enhances its versatility.
About Wiska
Wiska is a globally recognised brand in the electrical industry, known for producing high-quality, innovative products designed to withstand the toughest conditions. Their brass junction boxes are trusted worldwide for their exceptional durability, safety, and performance.
