IP56 HNA Brass Junction Box – 8 – 10.5 mm
Wiska 1150-2xW10A

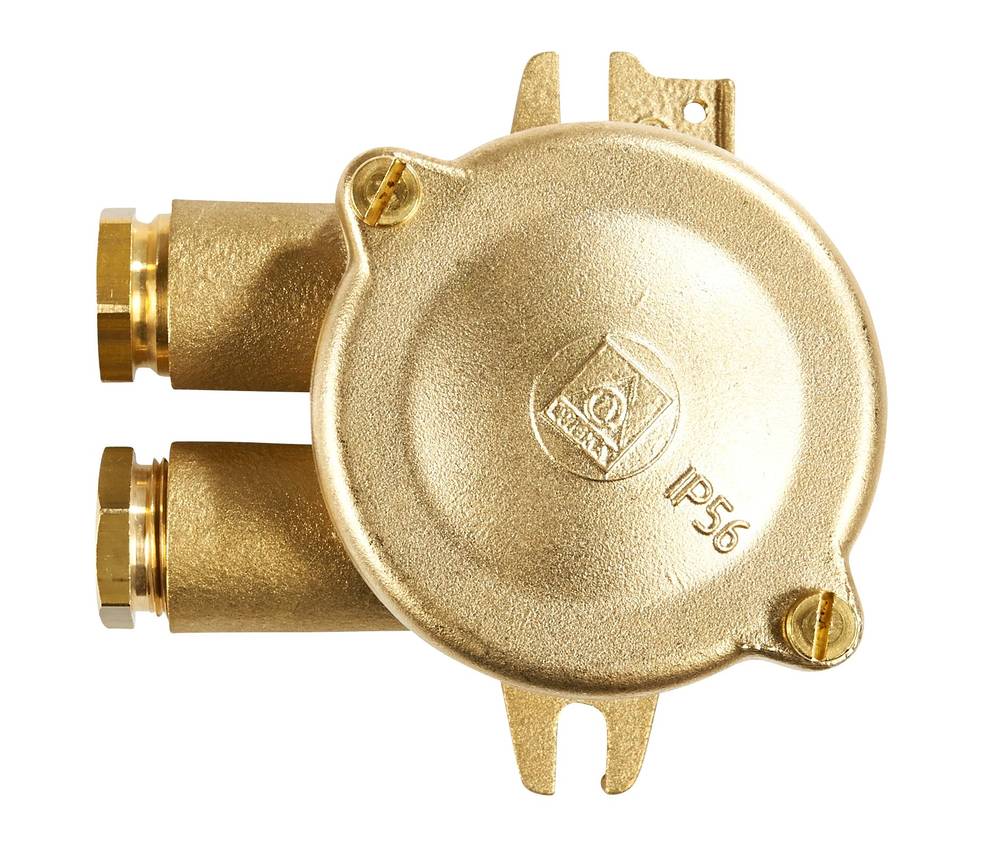

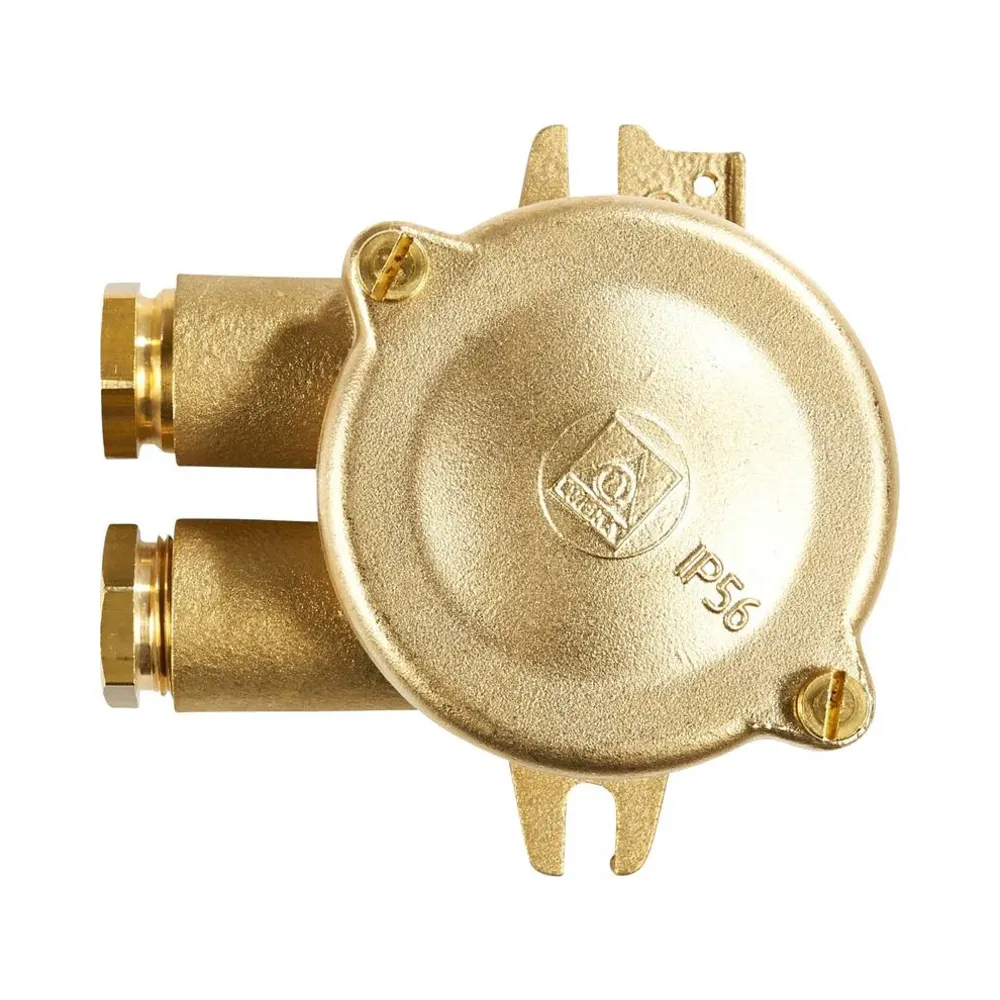

The Wiska 1150-2xW10A IP56 HNA Brass Junction Box is designed to provide secure and reliable electrical connections in demanding environments. Crafted from durable brass, this junction box is engineered to accommodate non-armoured cables with diameters ranging from 8 mm to 10.5 mm. Its IP56 protection rating ensures exceptional resistance to dust and water, making it suitable for both indoor and outdoor installations, including engine rooms and workspaces exposed to harsh conditions.
Key Features of Wiska 1150-2xW10A IP56 HNA Brass Junction Box
- Voltage Rating: Supports up to 500 V, ideal for diverse electrical installations.
- Current Capacity: Rated for 16 A, ensuring consistent and reliable performance.
- High Protection Class: IP56-rated for superior protection against dust ingress and powerful water jets.
- Robust Material: Made entirely from high-quality brass, offering excellent corrosion resistance and mechanical strength.
- Cable Gland: Features a durable M24x1.5 brass cable gland, designed for non-armoured cables.
- Temperature Range: Operates effectively between -25°C and +45°C, suitable for various climates.
- Compact Design: External dimensions of 110x100x50 mm, perfect for compact installations.
- Mounting Type: Surface mounting for easy and secure installation.
- Rated Cross Section: 2.5 mm², providing efficient cable management.
Technical Specifications
- Type: 1150-2xW10A
- Voltage: 500 V
- Current: 16 A
- Protection Class: IP56
- Material: Brass (Junction Box & Cable Gland)
- Cable Gland Type: M24x1.5
- Cable Diameter Range: 8 mm to 10.5 mm
- Type of Cable: Non-armoured

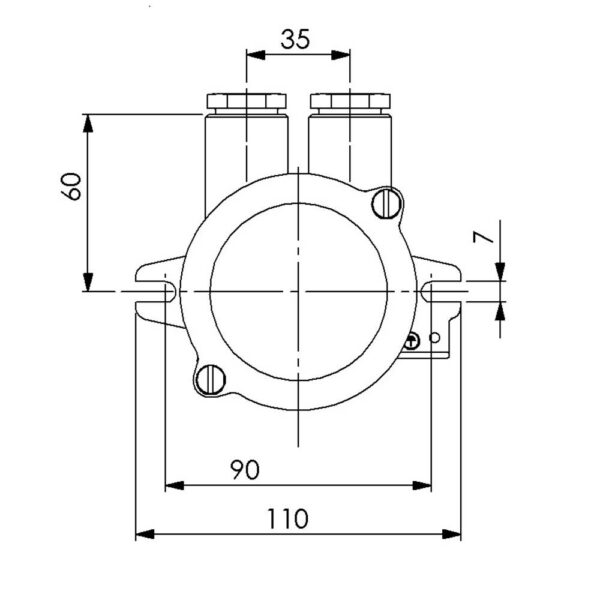

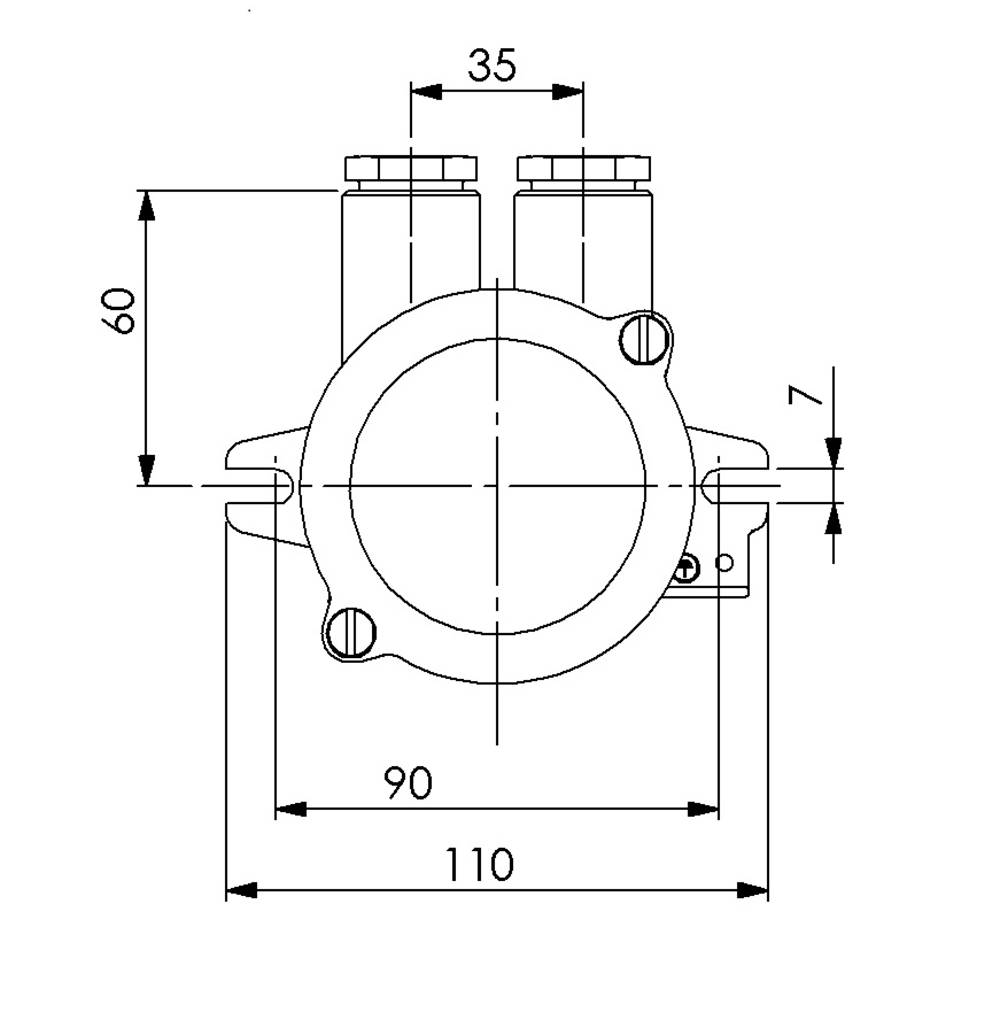

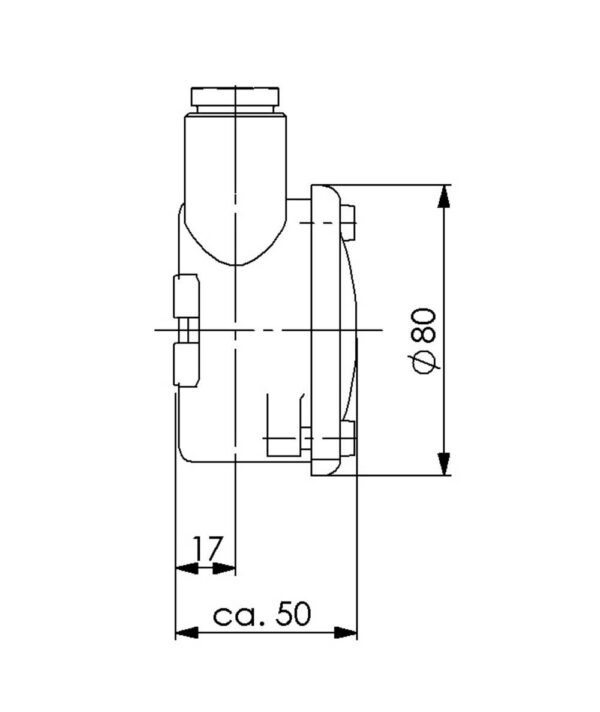

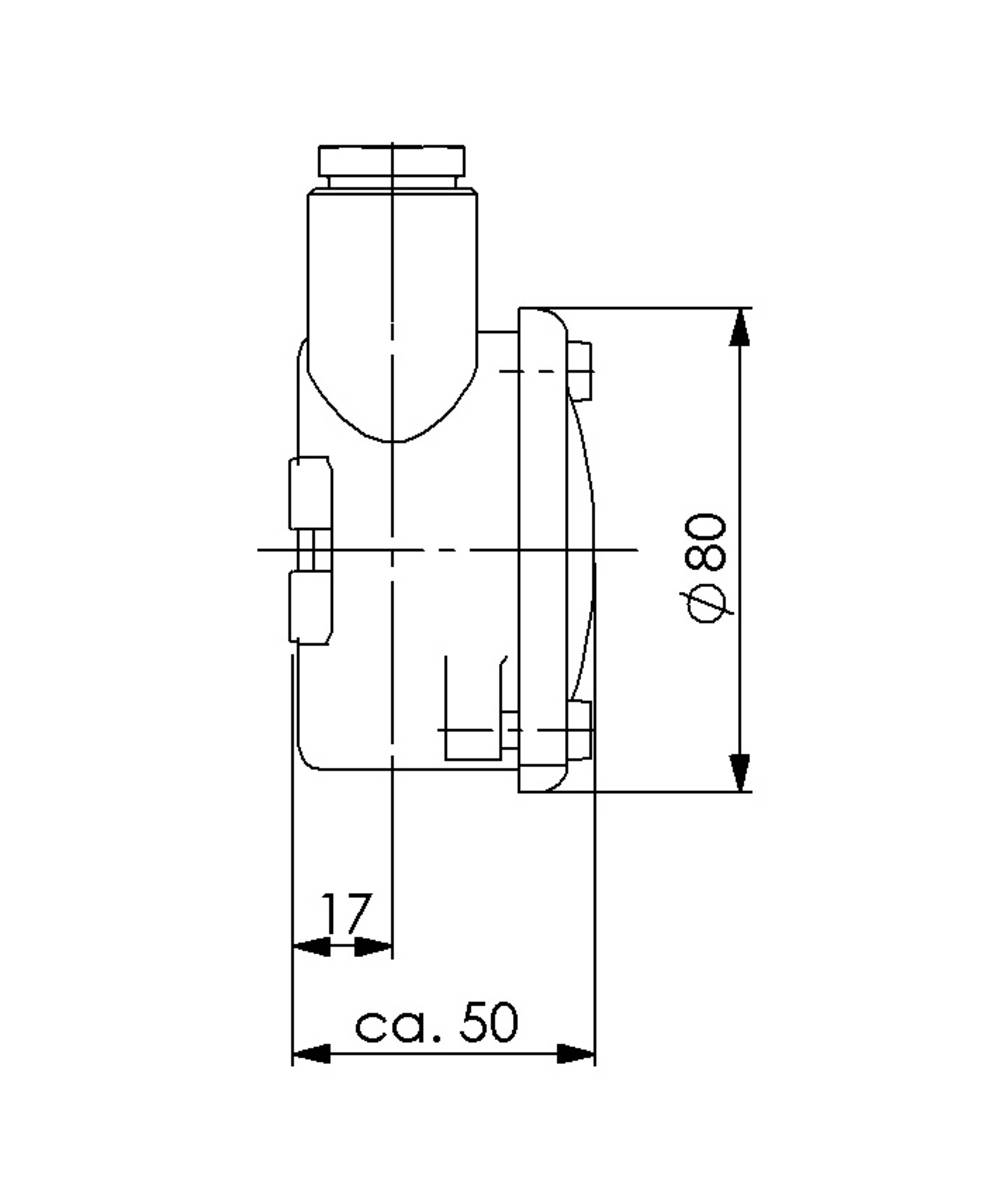

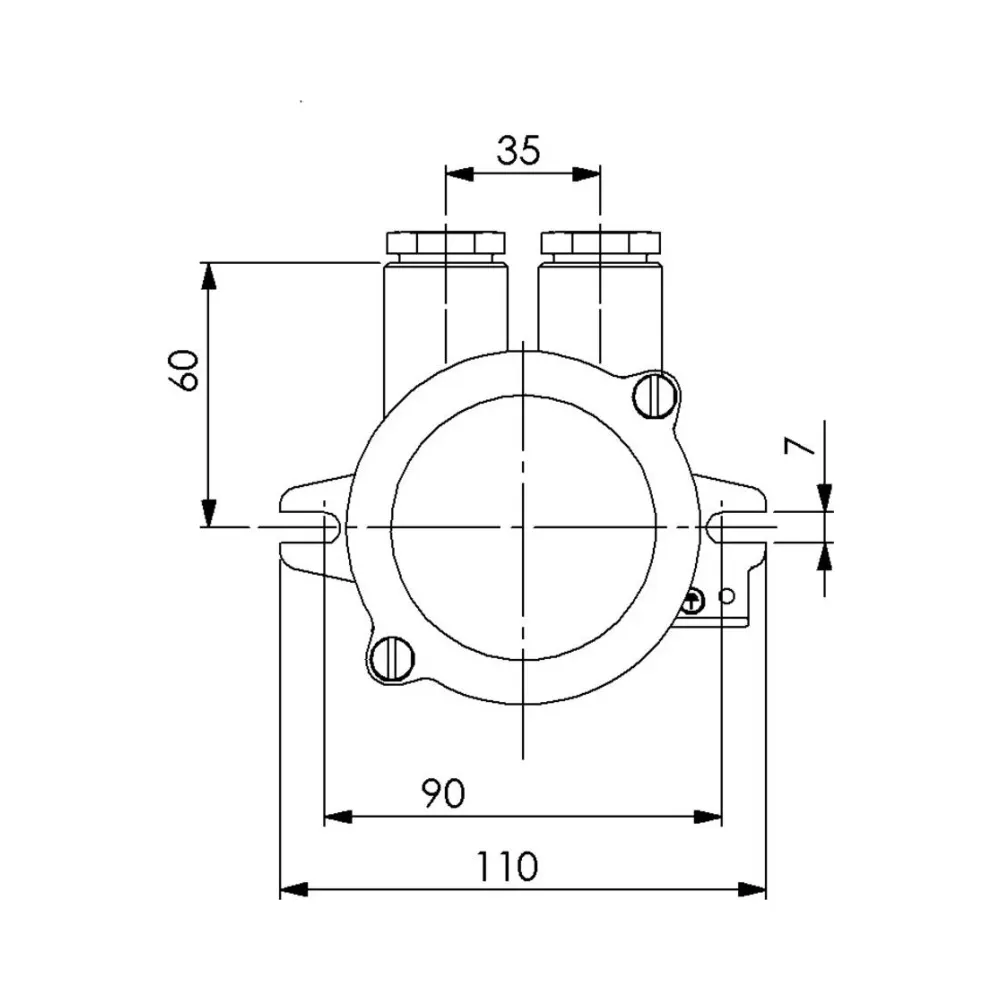

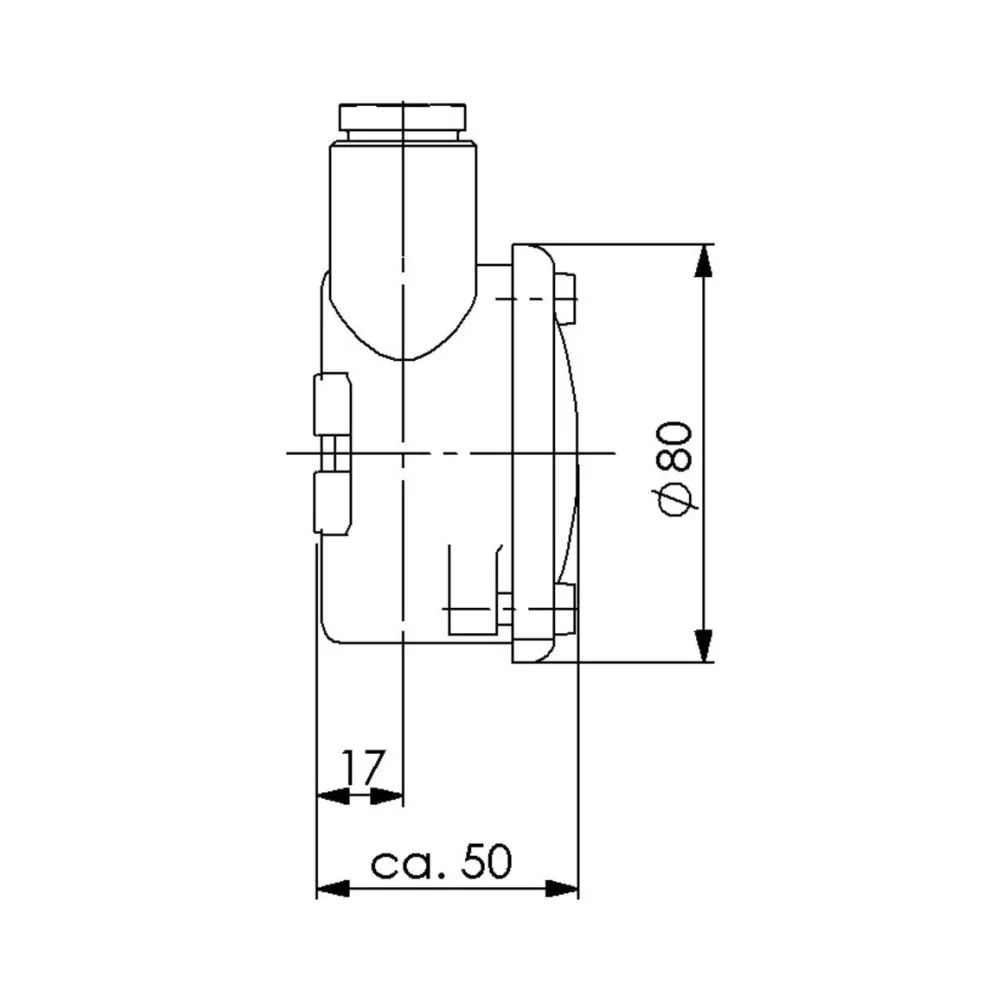

- External Dimensions (LxWxH): 110x100x50 mm
- Mounting: Surface mounting
- Temperature Range: -25°C to +45°C
- Rated Cross Section: 2.5 mm²
- Equipment: Clamp
- Terminals/Poles: 4-pole, 2.5 mm²
- Operational Areas: Engine rooms, outdoor environments, indoor workspaces
- Norm Compliance: DIN 89250
- Weight: 0.76 kg
Why Choose the Wiska 1150-2xW10A Brass Junction Box?
The Wiska 1150-2xW10A Brass Junction Box offers unmatched durability and protection, making it the preferred choice for professionals operating in harsh environments. Its robust brass construction, combined with IP56-rated protection, ensures long-lasting performance, while its compatibility with non-armoured cables adds versatility to its applications.
