Description

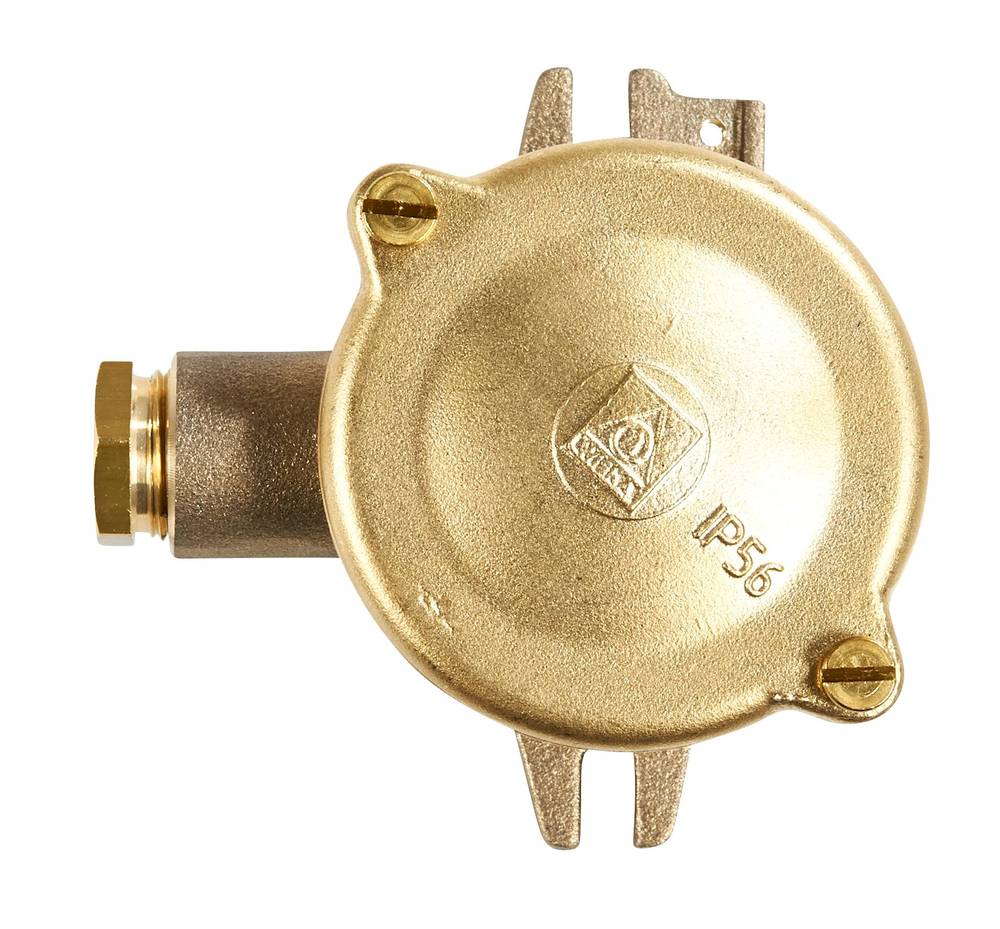

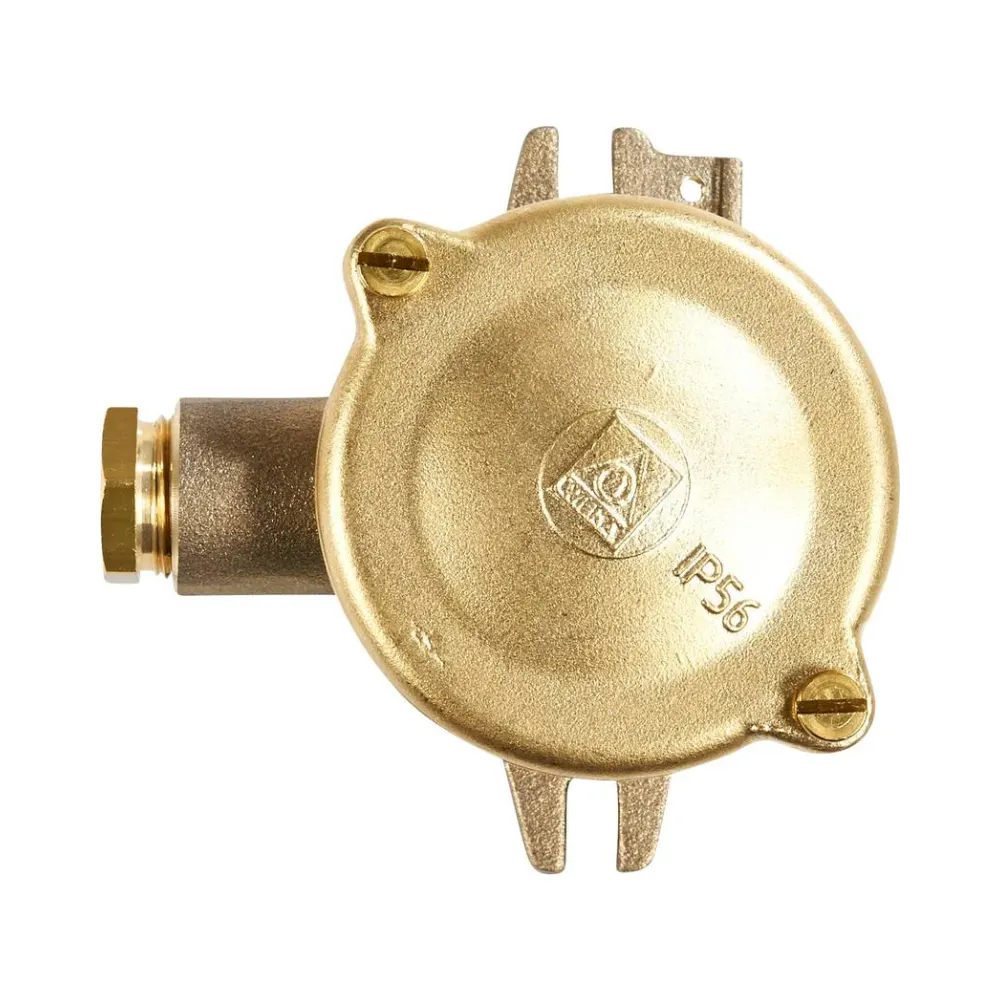

IP56 HNA Brass Junction Box 12 – 14.5mm
Wiska 1149-1xZ14
The Wiska 1149-1xZ14 IP56 HNA Brass Junction Box is engineered for reliable electrical connections in demanding environments. Designed to accommodate armoured cables with diameters ranging from 12 mm to 14.5 mm, this brass junction box offers robust protection against dust, water, and mechanical impacts. Its brass construction ensures durability and long-term performance, making it suitable for indoor, outdoor, and engine room applications.
Key Features
- Voltage Rating: Supports up to 500 V, ideal for various electrical installations.
- Current Capacity: Handles currents up to 16 A for reliable performance.
- High Protection Class: IP56-rated, offering strong protection against dust and powerful water jets.
- Durable Material: Made from high-quality brass, ensuring corrosion resistance and mechanical strength.
- Cable Gland: Equipped with a robust M24x1.5 brass cable gland, supporting armoured cables.
- Temperature Range: Operates efficiently from -25°C to +45°C, suitable for diverse environments.
- Compact Design: External dimensions of 110x100x50 mm, perfect for space-constrained installations.
- Mounting Type: Surface mounting for easy installation.
- Rated Cross Section: 2.5 mm² for effective cable management.
Technical Specifications
- Type: 1149-1xZ14
- Voltage: 500 V
- Current: 16 A
- Protection Class: IP56
- Material: Brass (Junction Box & Cable Gland)
- Cable Gland Type: M24x1.5
- Cable Diameter Range: 12 mm to 14.5 mm
- Type of Cable: Armoured

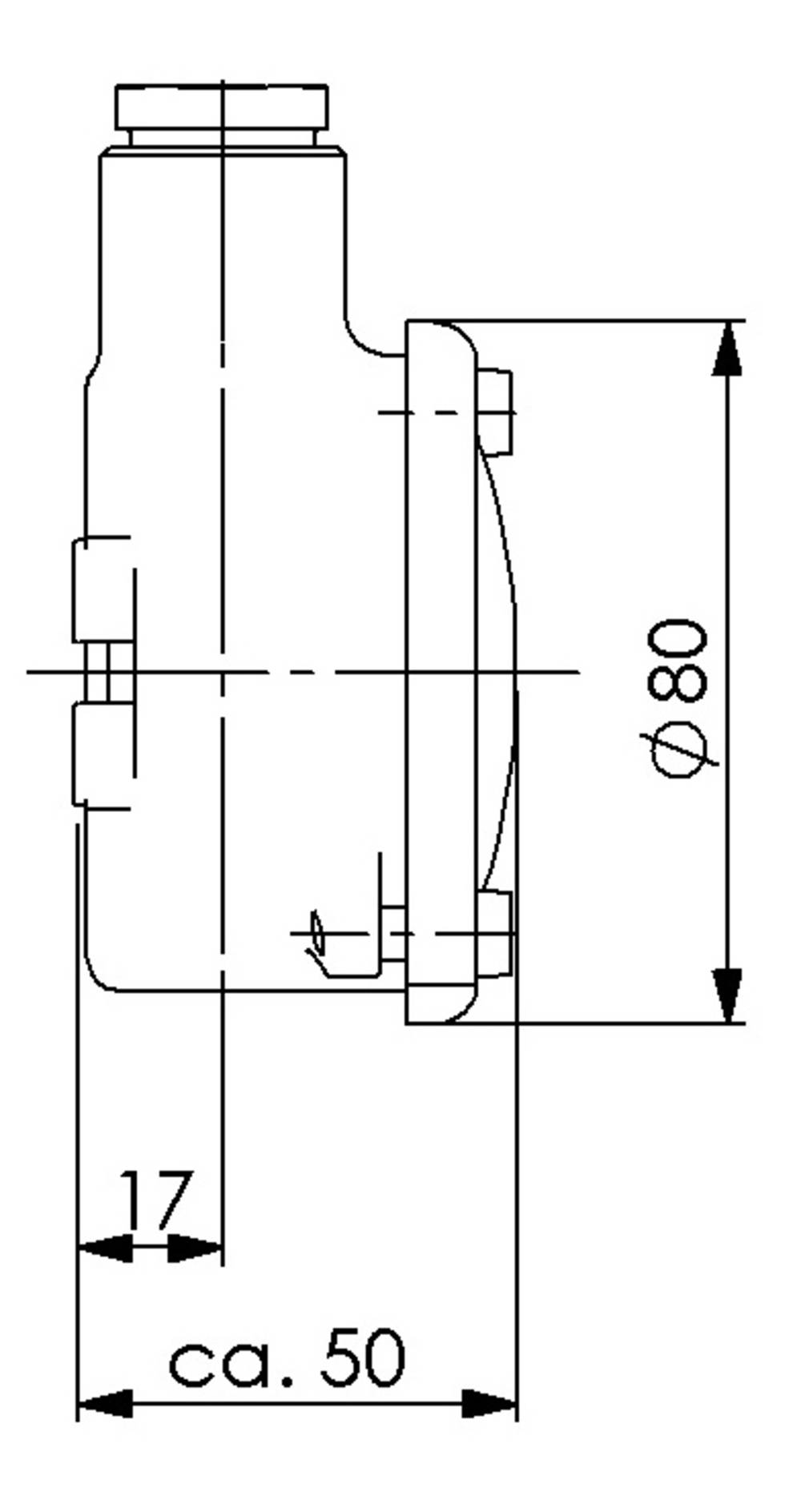

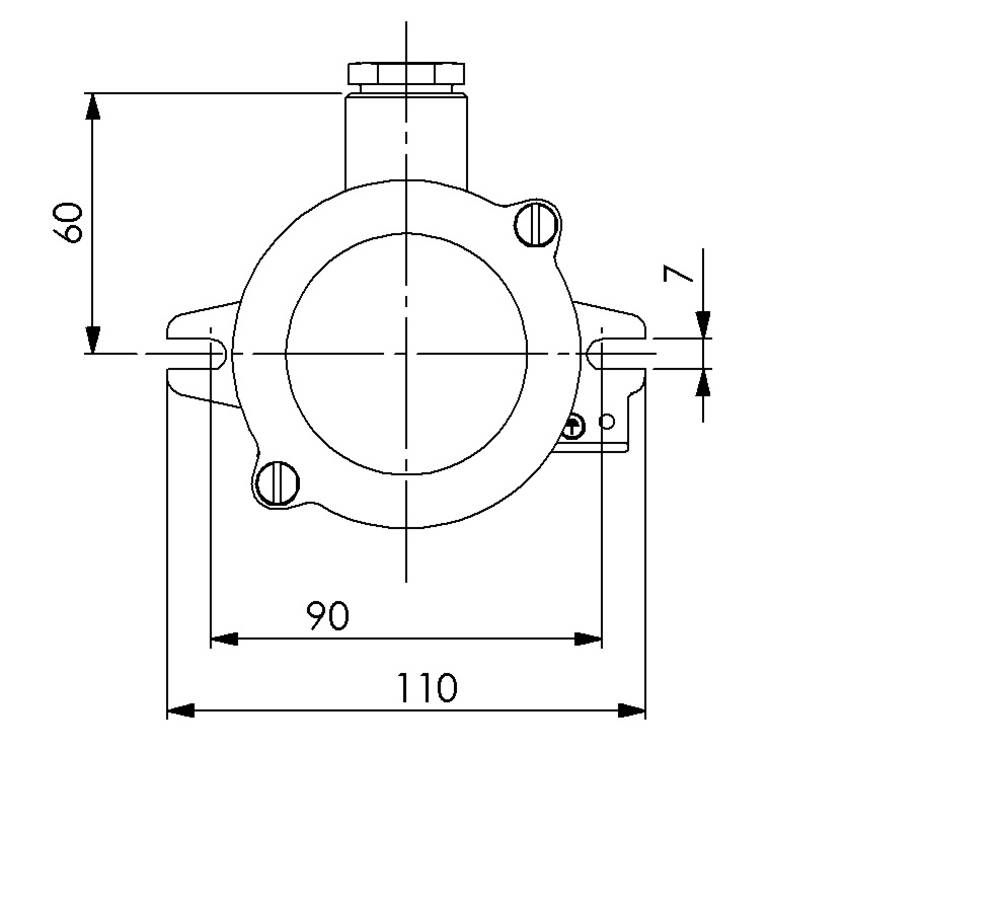

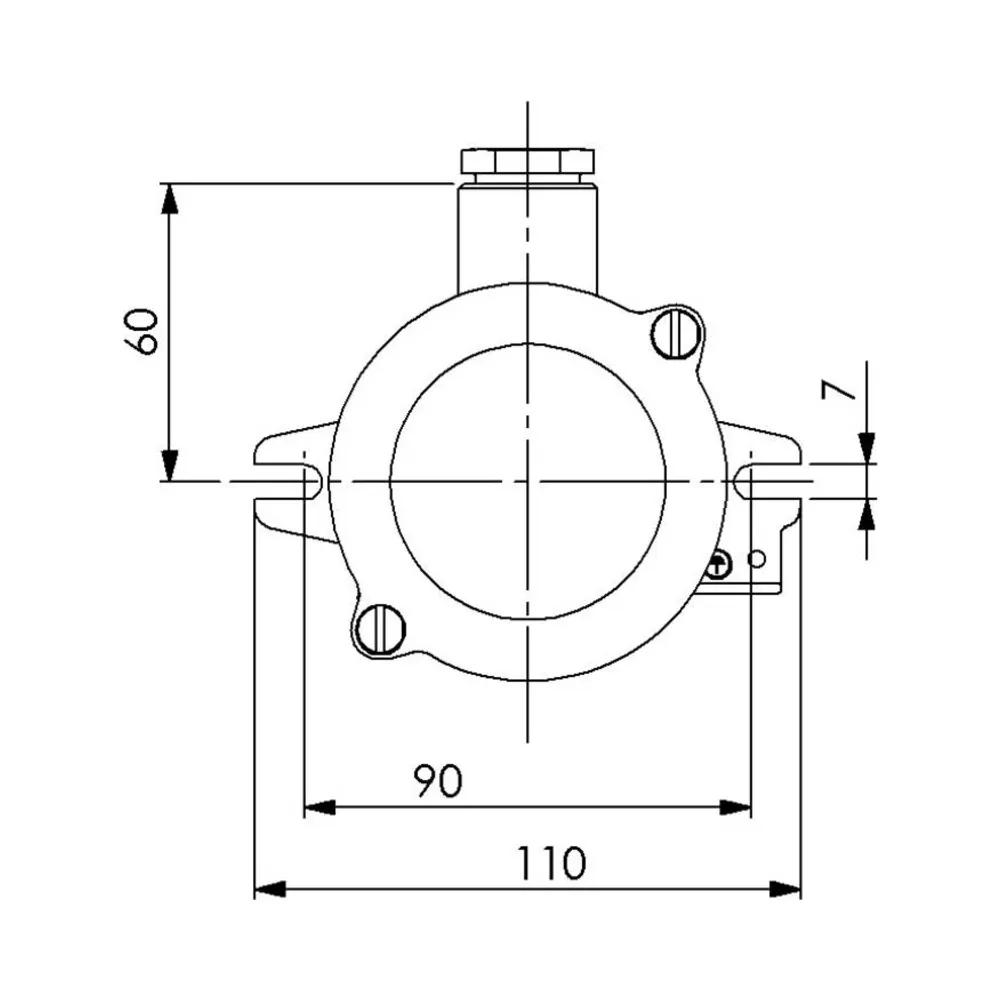

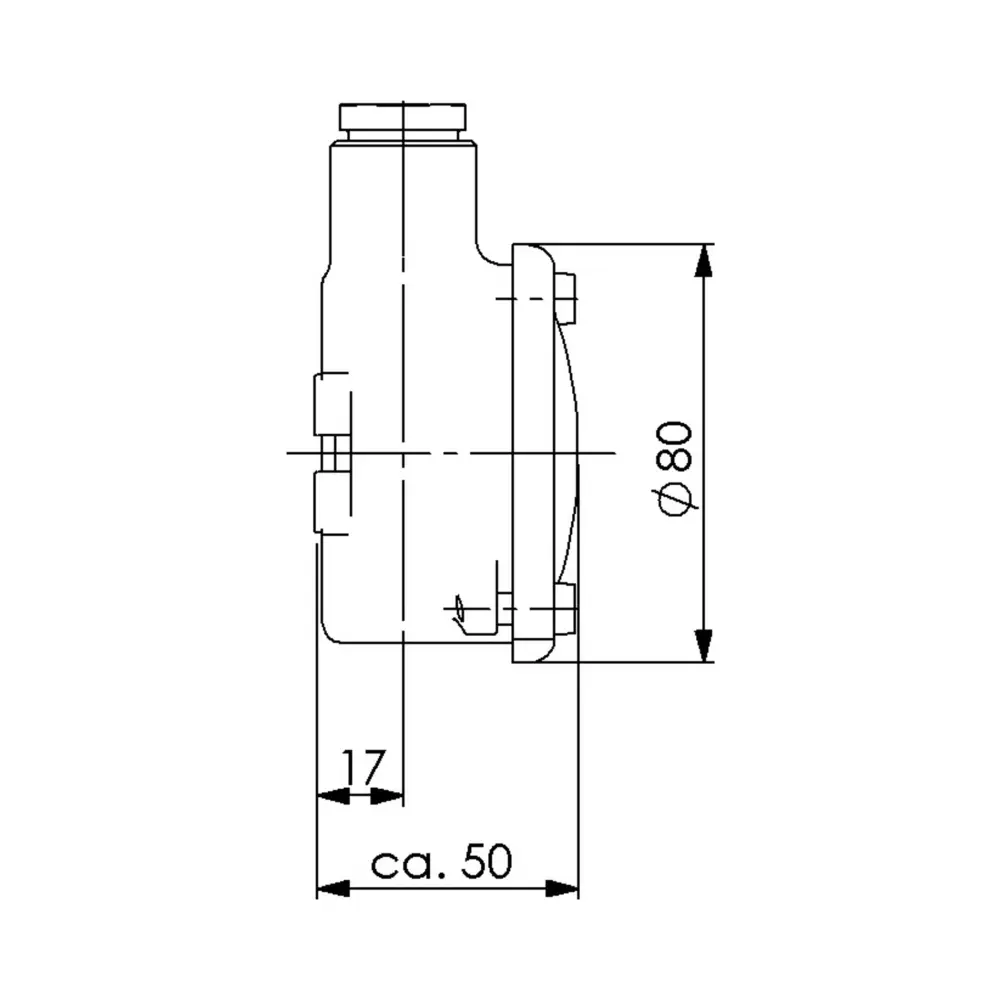

- External Dimensions (LxWxH): 110x100x50 mm
- Mounting: Surface mounting
- Temperature Range: -25°C to +45°C
- Rated Cross Section: 2.5 mm²
- Equipment: Clamp
- Terminals/Poles: 4-pole, 2.5 mm²
- Operational Areas: Engine rooms, outdoor environments, indoor workspaces
- Norm Compliance: DIN 89250
- Weight: 0.66 kg
Why Choose the Wiska 1149-1xZ14 Brass Junction Box?
The Wiska 1149-1xZ14 Brass Junction Box is the ideal choice for professionals seeking a reliable, durable brass junction box for harsh environments. Its robust brass construction, IP56 protection, and compatibility with armoured cables ensure long-lasting performance. Whether used in marine, industrial, or outdoor settings, it provides secure and efficient electrical connections.
About Wiska
Wiska is a trusted name in the electrical industry, known for its innovative, high-quality products designed to withstand the toughest conditions. With a focus on durability and safety, Wiska brass junction boxes and accessories are preferred by professionals worldwide for their exceptional reliability.
