Description

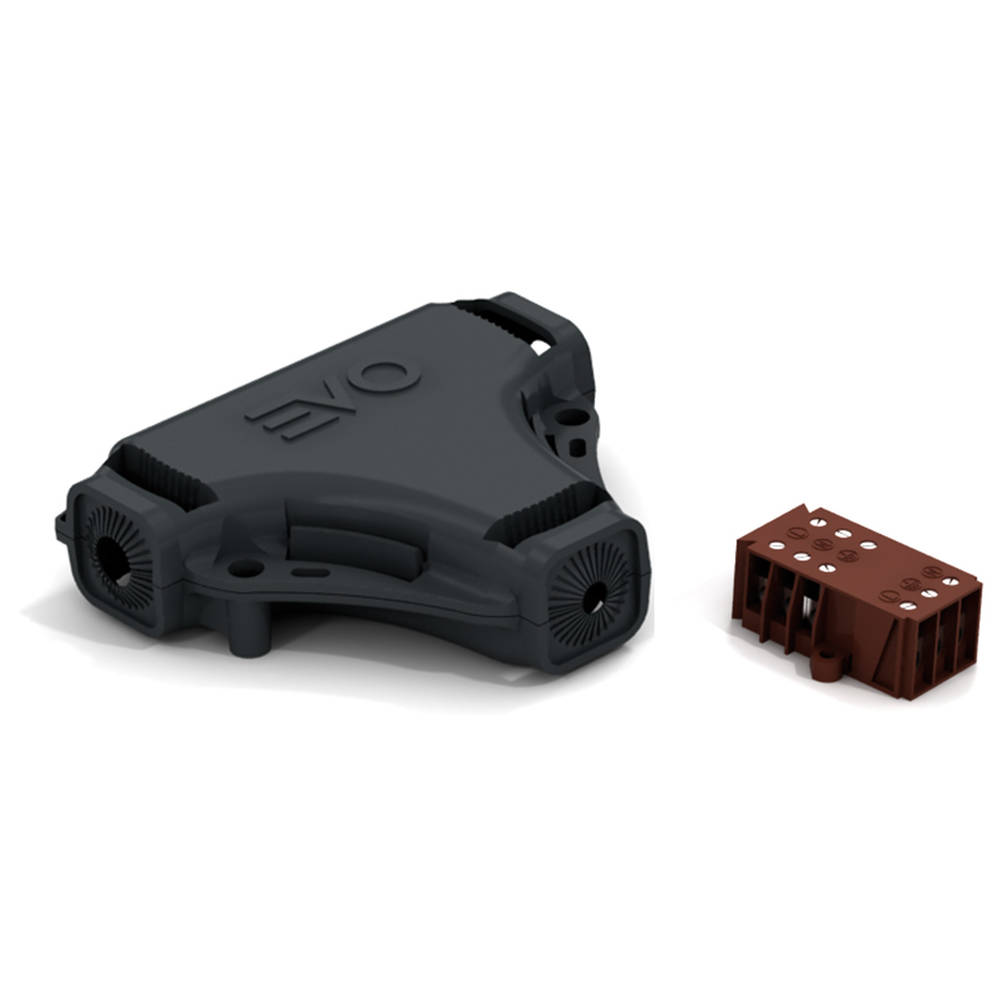

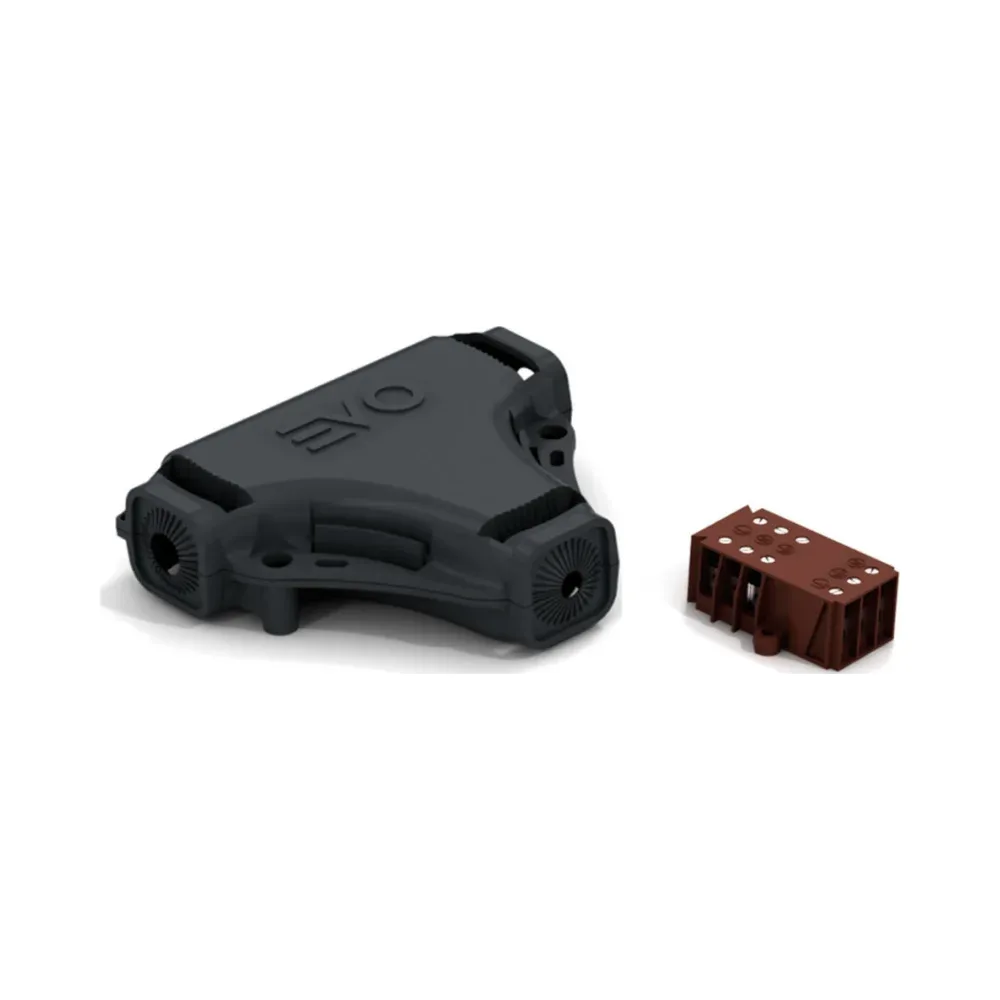

EV202D Pre-filled IP68 T-Branch Gel Connector – 1.5-4mm² / 1.5-2.5mm²
Wiska 10112032 with Screw Terminal Block
The Wiska EV202D Pre-filled IP68 T-Branch Gel Connector is a versatile and reliable solution for secure branch connections in electrical systems. Designed with pre-filled silicone gel and durable polyamide housing, it offers excellent insulation and protection for voltages up to 1 kV. Its IP68 rating makes it ideal for outdoor and submerged applications, delivering consistent performance in demanding environments.
Detailed Features and Functionality
The Wiska EV202D T-Branch Gel Connector is designed for efficiency and reliability. Its pre-filled silicone gel provides superior electrical insulation and eliminates the need for mixing or pouring, enabling immediate operation. Moreover, its IP68 rating ensures resistance to water ingress, making it suitable for submerged conditions up to 1 metre.
This connector accommodates cables with diameters of 10-13mm and 6-8mm, supporting cores ranging from 1.5mm² to 4mm² and 1.5mm² to 2.5mm². The included screw terminal block ensures secure and straightforward connections. Operating effectively within a temperature range of -20°C to 90°C, it delivers reliable performance across diverse applications.
With dimensions of 105x90x28mm, the compact design simplifies installation and saves space. Its re-enterable design allows for future adjustments or inspections, enhancing flexibility and long-term usability. Additionally, its self-extinguishing material complies with glow wire test standards, improving safety in case of overheating.
Key Features of Wiska 10112032 EV202D Gel Connector
- Material: Durable polyamide housing with pre-filled silicone gel.
- Temperature Range: Operates reliably from -20°C to 90°C.
- Voltage Compatibility:
- Branch: 0.6/1 kV.
- Main: 300/500V.
- Cable Capacity:
- Branch cable diameter: 10-13mm.
- Main cable diameter: 6-8mm.
- Core Capacity:
- Branch: 1.5mm² to 4mm².
- Main: 1.5mm² to 2.5mm².
- External Dimensions: Compact size of 105x90x28mm for space-efficient installation.
- IP68 Rated: Provides excellent protection against water and dust ingress, suitable for outdoor and submerged use.
- Glow Wire Test: Self-extinguishing material for enhanced fire safety.
- Ease of Use: Pre-filled, non-toxic, re-enterable, and ready for immediate operation.
- Included Accessories: Screw terminal block for secure connections.
