Description

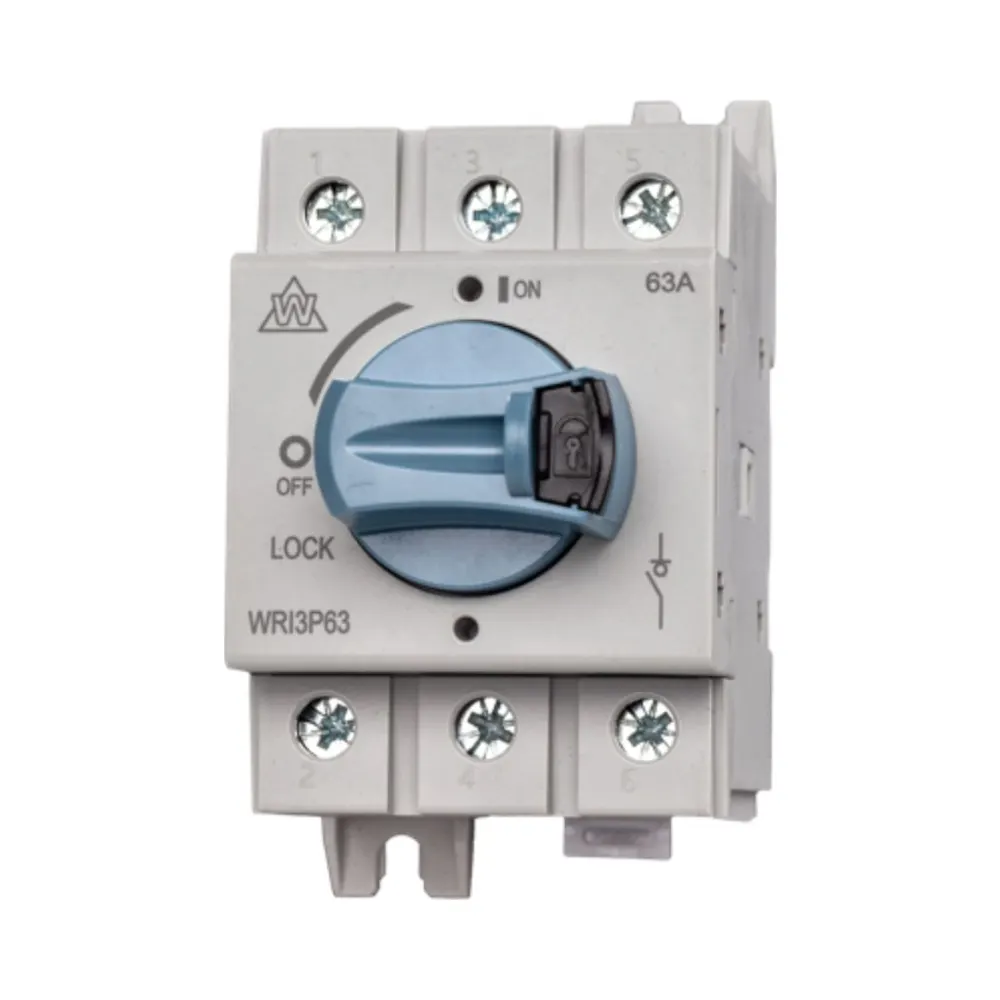

63A 3 Pole DIN Rail Rotary Isolator Switch
WCED WRI3P63
The WCED WRI3P63 63A DIN Rail Rotary Isolator Switch is part of the Whitecliffe Electrical WRS series, offering reliable and safe isolation for AC electrical circuits. Designed for rear mounting on standard 35mm DIN rails, this compact isolator is ideal for control panels, distribution boards, and machinery isolation.
With a rated operational voltage of up to 690V AC and a thermal current of 63A, the WRI3P63 delivers dependable performance in demanding environments. High short-circuit capacity, strong making and breaking performance, and long mechanical life ensure suitability for professional domestic and industrial use.
Manufactured in accordance with IEC 60947-3 and EN 60947-3, this DIN rail mounted rotary isolator switch provides compliance, safety, and durability in a compact footprint.
Key Features – WCED WRI3P63 63A DIN Rail Rotary Isolator Switch
- 63A DIN rail rotary isolator switch
- 3 pole configuration with normally open contacts
- Rated up to 690V AC (50/60Hz)
- Compact DIN rail mounted design (35mm)
- High short-circuit making and breaking capacity
- Long mechanical and electrical service life
- IP20 rated for internal installations
- Suitable for domestic and industrial use
Technical Specifications
- Brand: WCED (Whitecliffe Electrical)
- Part Number: WRI3P63
- Poles: 3
- Rated Current: 63A
- Rated Voltage: 690V AC
- Frequency: 50/60Hz
- Impulse Withstand Voltage: 8kV
- Operational Power: 22kW (AC-23A)
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 15,000 cycles
- IP Rating: IP20
- Mounting: DIN Rail (EN 60715 – 35mm)
- Operating Temperature: -25°C to +55°C
Applications -WCED WRI3P63 63A DIN Rail Rotary Isolator Switch
- DIN rail distribution boards
- Electrical control panels
- Machinery and equipment isolation
- Commercial and domestic AC systems
