Description

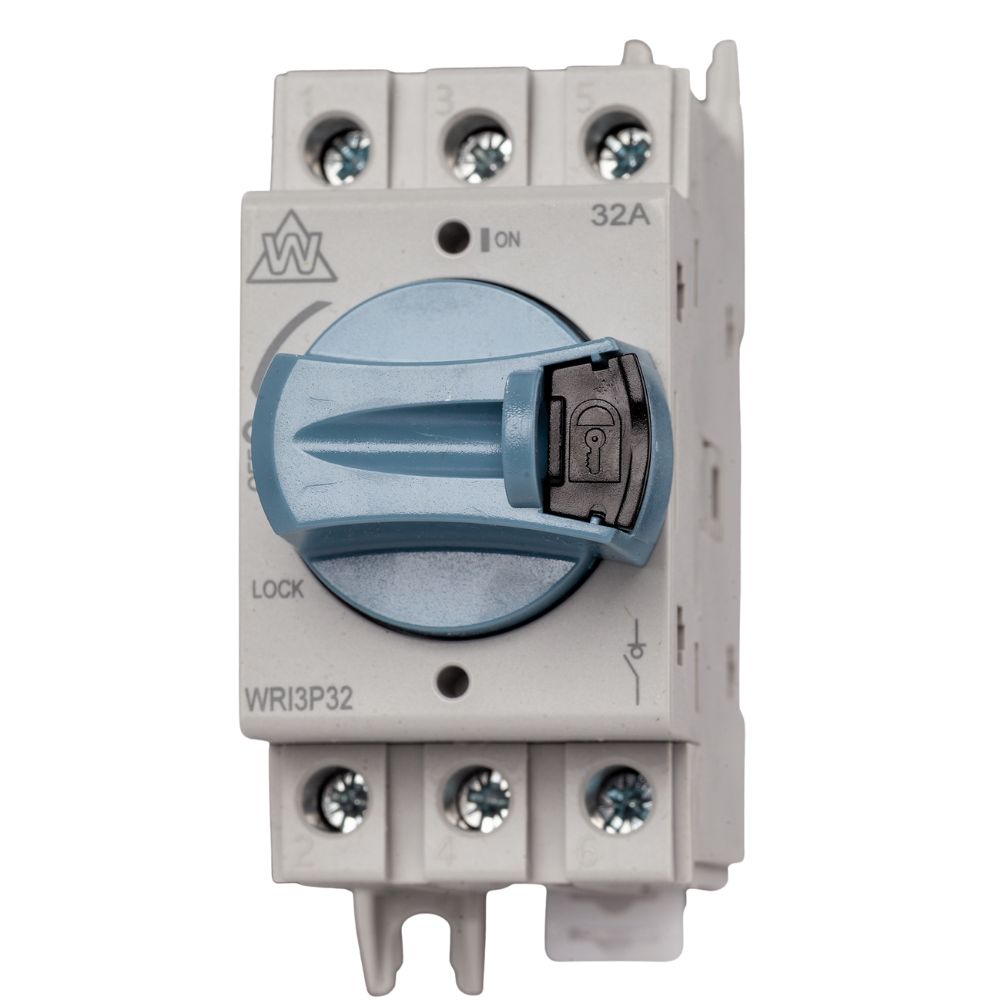

32A 3 Pole DIN Rail Rotary Isolator Switch
WCED WRI3P32
The WCED WRI3P32 32A DIN Rail Rotary Isolator Switch forms part of the Whitecliffe Electrical WRS series, delivering reliable isolation for AC electrical circuits in compact panel installations. Designed for rear mounting on standard 35mm DIN rails, this isolator is ideal for use in distribution boards, control panels, and machinery isolation.
With a rated current of 32A and an operational voltage of up to 690V AC, the WRI3P32 offers dependable performance in both domestic and industrial environments. Its robust construction provides strong making and breaking capacity alongside long mechanical and electrical service life.
Manufactured to IEC 60947-3 and EN 60947-3, this DIN rail mounted rotary isolator switch ensures safety, compliance, and durability for professional electrical installations.
Key Features – WCED WRI3P32 32A DIN Rail Rotary Isolator Switch
- 32A DIN rail rotary isolator switch
- 3 pole configuration with normally open contacts
- Rated up to 690V AC (50/60Hz)
- Compact DIN rail mounted design (35mm)
- High short-circuit performance
- Long mechanical and electrical service life
- IP20 rated for internal installations
- Suitable for domestic and industrial use
Technical Specifications
- Brand: WCED (Whitecliffe Electrical)
- Part Number: WRI3P32
- Poles: 3
- Rated Current: 32A
- Rated Voltage: 690V AC
- Frequency: 50/60Hz
- Impulse Withstand Voltage: 8kV
- IP Rating: IP20
- Mounting: DIN Rail (EN 60715 – 35mm)
- Operating Temperature: -25°C to +55°C
Applications – WCED WRI3P32 32A DIN Rail Rotary Isolator Switch
- DIN rail distribution boards
- Electrical control panels
- Machinery and equipment isolation
- Commercial and domestic AC systems
