Description
Type 2 SPD – Reliable 40kA Surge Arrestor for Electrical Systems
⚡ WCED Whitecliffe WSPD240

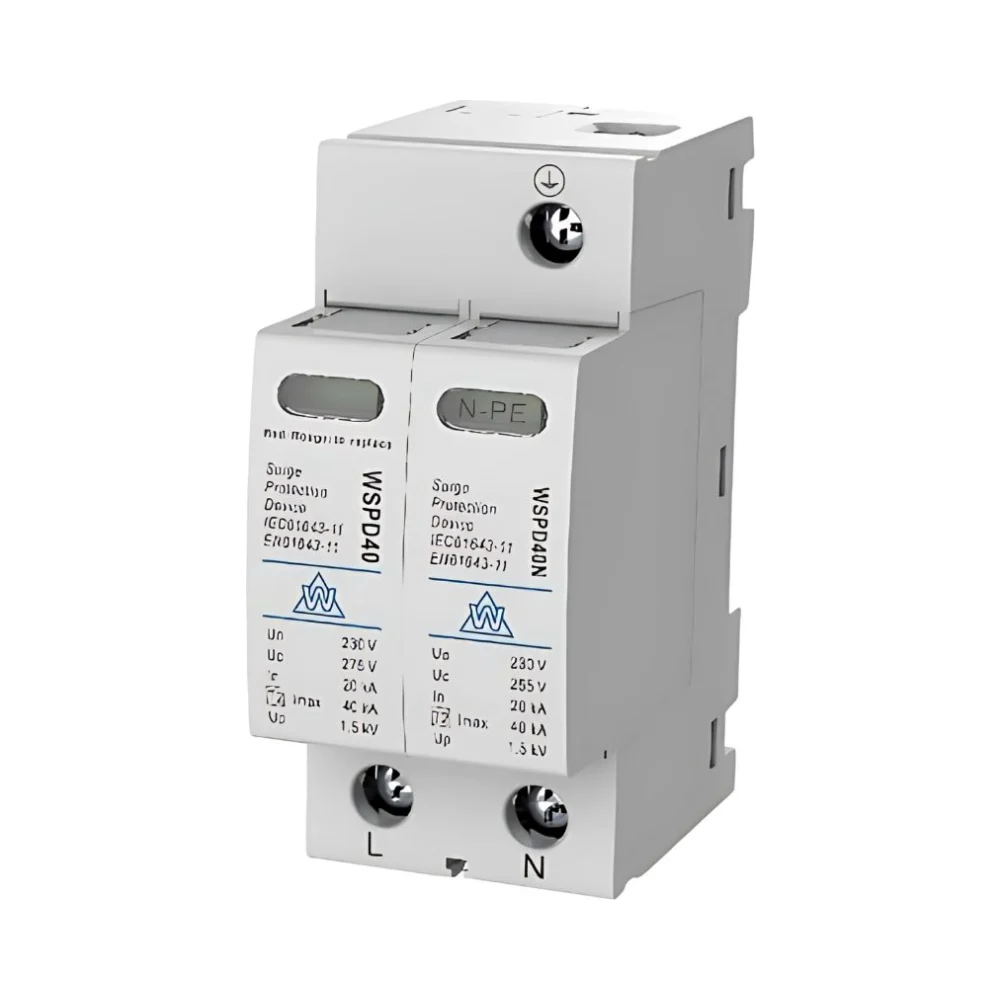

The WCED Whitecliffe WSPD240 Type 2 20/40kA SPD Surge Protection Device (also known as a Whitecliffe 2-pole Type 2 surge arrestor) is built to shield electrical systems from dangerous voltage spikes. Whether caused by lightning or switching loads, these spikes can damage or destroy sensitive equipment.
This Type 2 surge protection breaker is perfect for homes, offices, and industrial panels. It meets BS7671 and 18th Edition regulations and offers 40kA surge current protection with a 2-module, 2-pole design. As a mid-range surge protector, it’s ideal for installations that require strong protection but not full lightning strike resistance.
What You Get – WSPD240 SPD Features
- 1 x WCED WSPD240 Surge Protection Device
- Type 2, 2-pole, 2-module SPD
- 20kA nominal / 40kA max discharge current
- Max continuous operating voltage: 275V AC
- Mechanical red/green indicator per pole
- Failsafe disconnection mode
- DIN-rail mounted (35mm symmetrical rail)
Key Benefits of This Type 2 SPD Surge Protection Device
- High Surge Capacity (40kA max) – Handles strong transients
- Complies with Standards – IEC 61643-11 / EN 61643-11 / BS7671
- Red/Green Indicators – Easy status checks at a glance
- Compact Build – Fits DIN rails and tight enclosures easily
- Easy Maintenance – Long life, safe disconnection, and clear status
Ideal Applications for the WSPD240 SPD
You can use this SPD in many environments:
- Residential – Protect TVs, PCs, alarms, and appliances
- Commercial – Guard POS, network systems, and lighting
- Industrial – Secure control panels and electronic equipment
Need Extra Parts?
This unit comes without cables or busbars. For a full kit with accessories, choose the WSPD240KIT2 model.
Summary – Strong, Compliant Protection for Modern Installs
The WCED WSPD240 SPD delivers serious Type 2 protection in a compact, standards-compliant design. It’s ideal for pros who want quick installs and reliable performance in homes, businesses, or industrial sites.
