Description

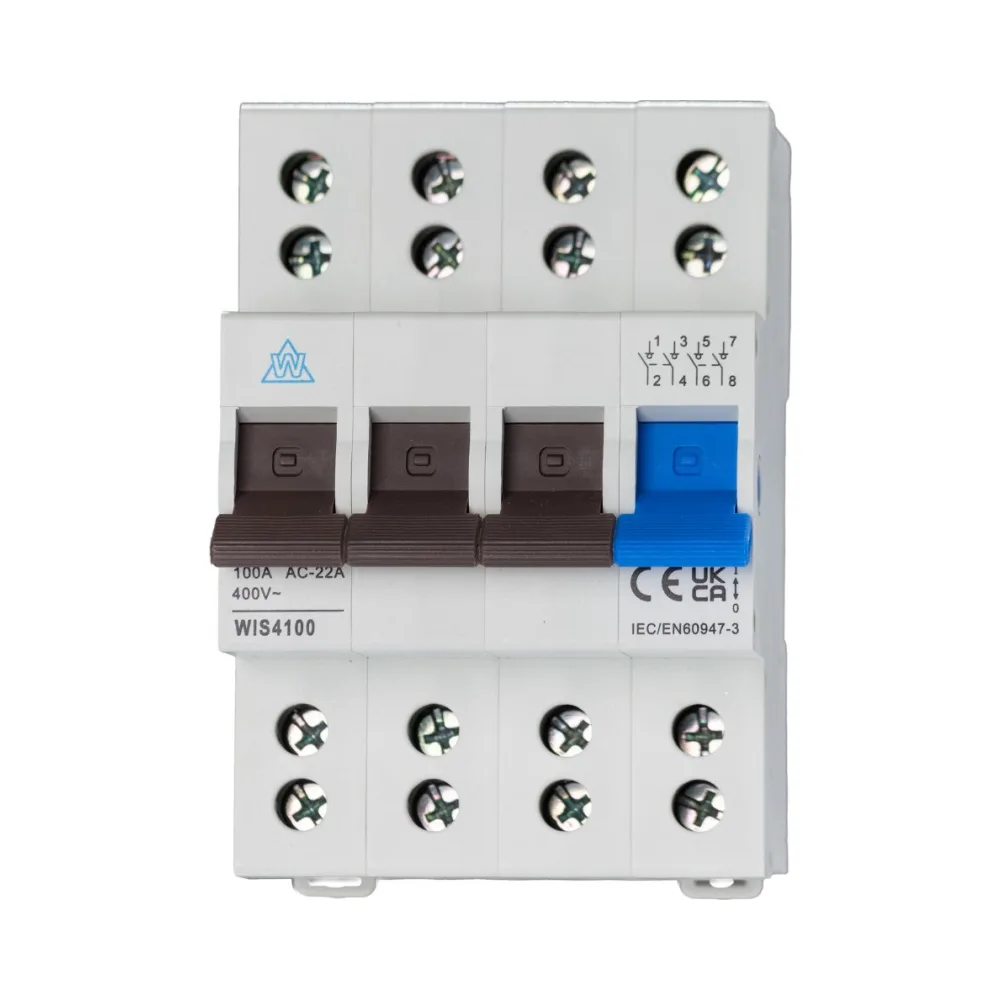

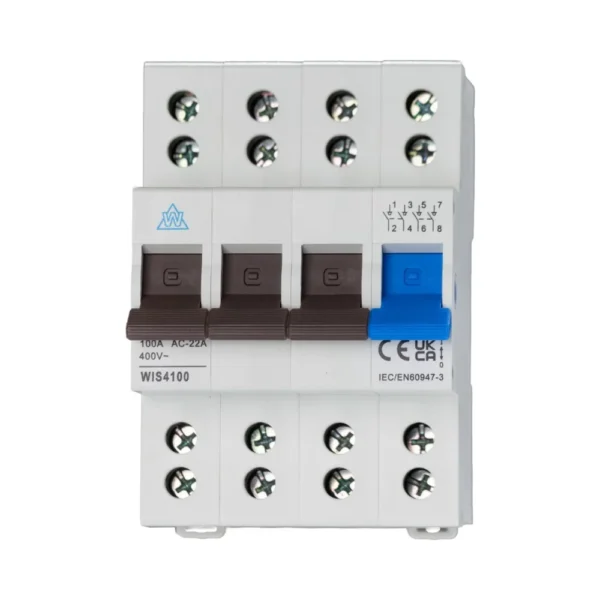

WCED 4 Pole Twin Screw Main Switch
WCED Whitecliffe | WIS4100
The WCED 4 pole twin screw main switch is designed to provide safe and reliable isolation of three-phase electrical supplies in commercial and industrial installations. Rated at 100A and 400V AC, this main switch allows full disconnection of live conductors for maintenance and system control.
The WCED Whitecliffe WIS4100 features a four-pole configuration with twin screw terminals per pole, ensuring secure cable termination and consistent electrical contact. Its compact modular design makes it suitable for installation within consumer units and distribution boards where space efficiency is required.
Key Features
- WCED 4 pole twin screw main switch
- 100A rated main switch isolator
- Four-pole (4P) configuration
- Twin screw terminals per pole for secure connections
- Rated at 400V AC
- Compact design for panel and enclosure mounting
Standards & Compliance
- IEC / EN 60947-3
- CE and UKCA approved
Dimensions
- Height: 70 mm
- Width: 103 mm
- Depth: 65 mm
