Description
A-Type Time Delay Residual Current Device

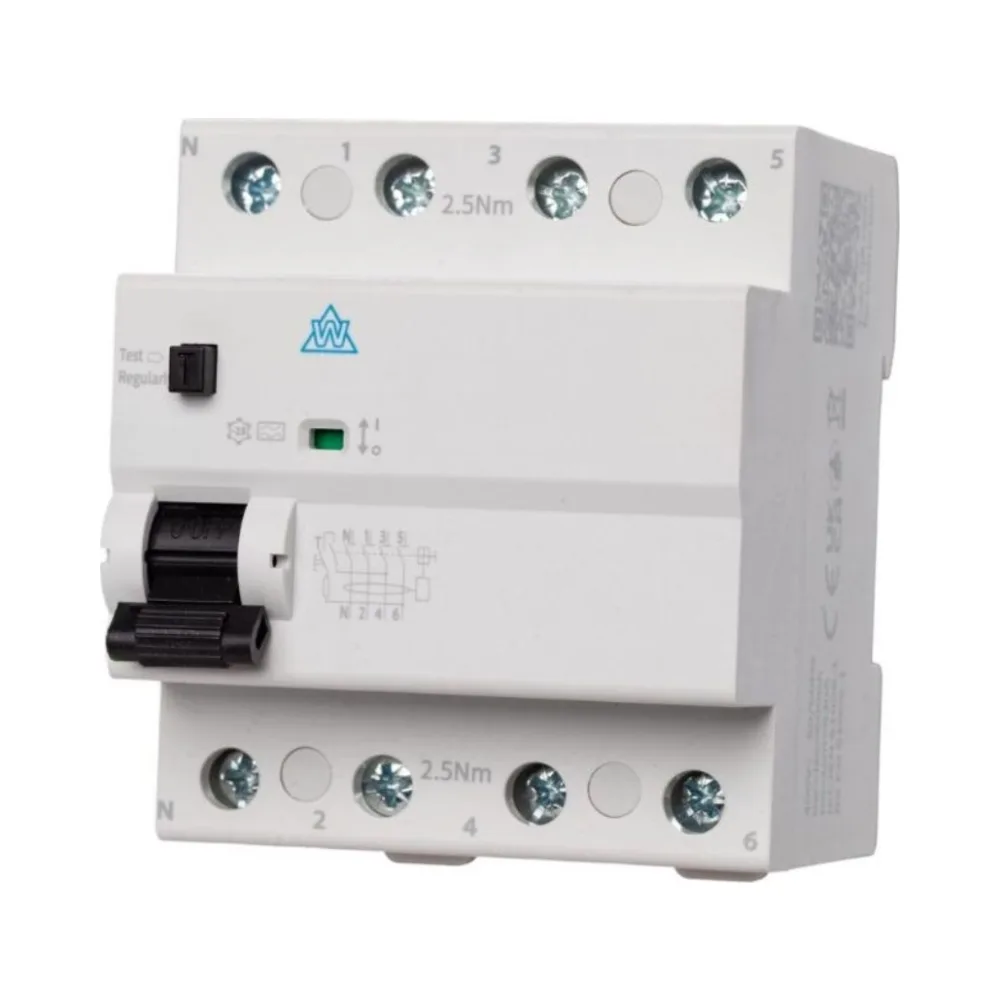

WCED 4 Pole 80A 100mA Time Delay Type A RCD
The WCED A-Type Time Delay RCD provides selective tripping in dual-RCD installations, ensuring only the upstream device operates during a fault. Rated 80A, this 4-pole unit is designed for safe and dependable circuit protection.
Offering a 100mA sensitivity, 6kA conditional short-circuit rating, and IP20 ingress protection, it is suitable for modern distribution boards where reliable discrimination is required.
✨ Key Features – WCED Time Delay RCD
- 100mA Type A residual current protection with time delay
- Rated operational voltage: 230/400 V
- Rated conditional short-circuit current: 6 kA
- Mechanical endurance: 4000 cycles; electrical: 2000 cycles
- Compact modular design – 4-pole, 80A
Technical Overview
- Mode: Electro-magnetic
- Residual current characteristics: Type A
- Sensitivity: 100 mA
- Time delay function for discrimination
- IP degree of protection: IP20
- Operating temperature: −25 °C to +40 °C
- Standards: BS EN 61008-1, BS EN 60529
✅ Why Choose This Product?
Choose WCED Time Delay RCDs for selective tripping in multi-RCD systems. They combine reliability, safety, and BS EN compliance in a compact design, ensuring installers can achieve dependable circuit protection in demanding environments.
️ Guarantee & Compliance
WCED RCDs comply with BS EN 61008-1 and BS EN 60529 standards, offering proven performance and trusted reliability.
