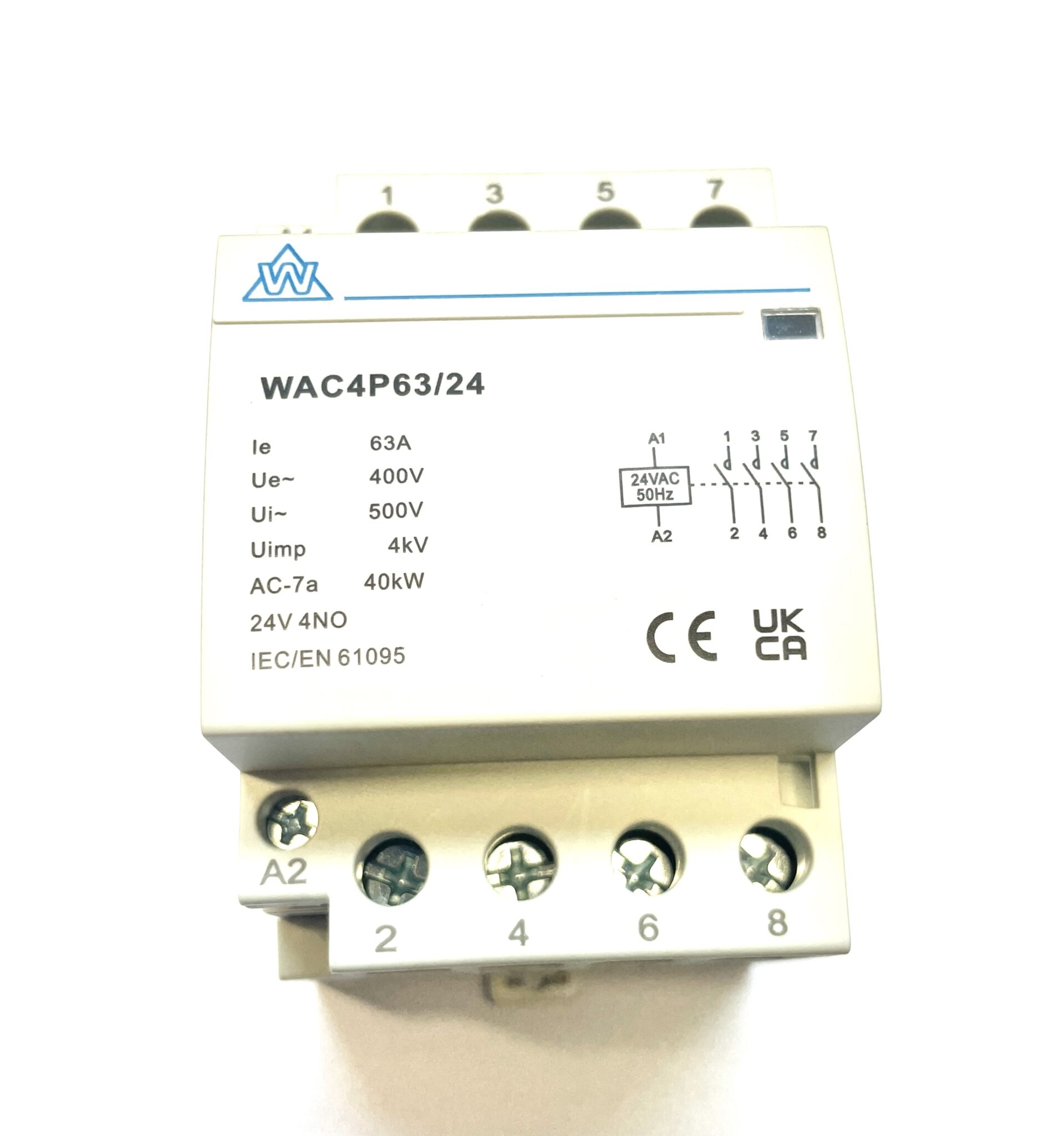

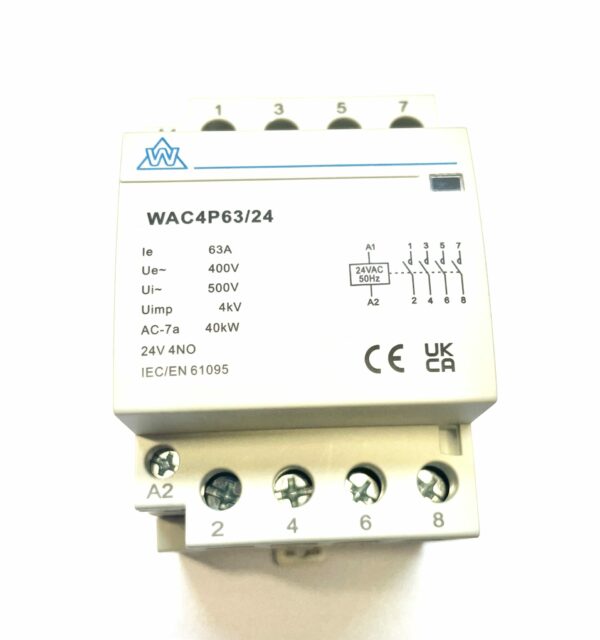

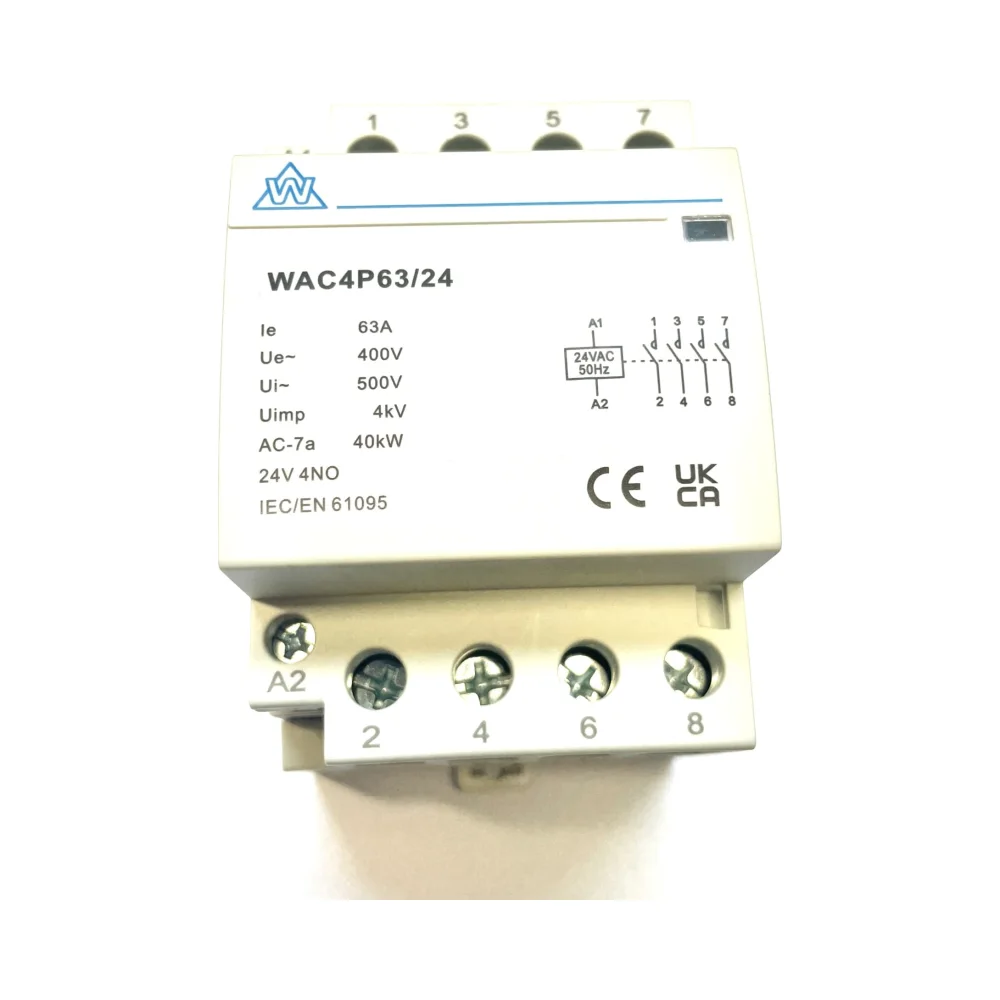

4 Pole 63A 24V NO Normally Open AC Modular Contactor
The WCED 4 Pole 63A 24V Normally Open AC Modular Contactor is a high-performance solution for controlling electrical circuits in residential, commercial, and industrial installations. With a robust design, compact size, and silent operation, this contactor is ideal for managing high-capacity loads efficiently. Its normally open (NO) configuration provides precise control, making it suitable for demanding applications such as lighting, HVAC systems, and motor control.
Key Features of 4 Pole 63A 24V NO Normally Open AC Modular Contactor
- 63A Current Rating: Handles high electrical loads, ensuring reliable performance.
- 4 Pole Configuration: Offers comprehensive control of multiple circuits.
- Normally Open (NO): Allows current flow only when activated, providing precise circuit management.
- Compact Modular Design: Fits seamlessly into consumer units and modular enclosures for space-efficient installations.
- Silent Operation: Noise-free performance, suitable for noise-sensitive environments.
- Durable Build: Constructed with high-quality materials for long-lasting reliability.
- Versatile Applications: Ideal for residential, commercial, and industrial setups requiring high-capacity control.
Technical Specifications
- Brand: WCED
- Poles: 4 Pole
- Current Rating: 63A
- Control Voltage: 24V AC electromagnetic coil
- Operational Voltage: 230/400V AC @ 50Hz
- Operation Type: Normally Open (NO)
- Degree of Protection: IP20, conforming to BS EN 60529
- Utilisation Categories: AC-7a (resistive loads) and AC-1 (slightly inductive loads), compliant with BS EN 60947-4-1
- Ambient Temperature Range: -25 °C to +40 °C
- Mounting: 35 mm DIN rail compatible
- Compliance: Certified to BS EN 61095 for modular contactors
How It Works
The WCED 4 Pole 63A 24V Modular Contactor operates using an electromagnetic coil:
- Default State: In the normally open (NO) configuration, the contacts remain open, preventing current flow.
- Activation: When the 24V AC coil is energised, the electromagnetic force pulls the armature, closing the contacts and allowing current to flow through the circuit.
- Deactivation: Once the coil is de-energised, the spring mechanism returns the contacts to their open state, halting current flow.
Applications
- Residential: Control lighting systems, heating setups, and household automation devices.
- Commercial: Ideal for managing office lighting, HVAC systems, and large-scale electrical loads.
- Industrial: Suitable for controlling motors, pumps, and automation systems in demanding environments.
Why Choose This Contactor?
The WCED 4 Pole 63A 24V NO Modular Contactor is engineered for durability, precision, and efficiency. Its robust construction ensures reliable performance under high electrical loads, while its compact design allows easy integration into consumer units and enclosures. Compliant with British and international safety standards, this contactor delivers dependable results across various applications.
