Description

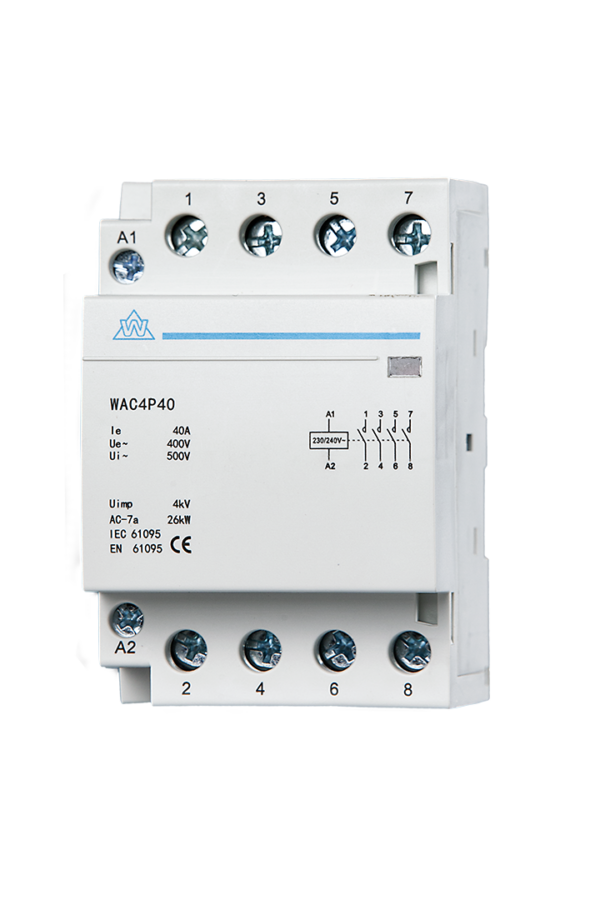

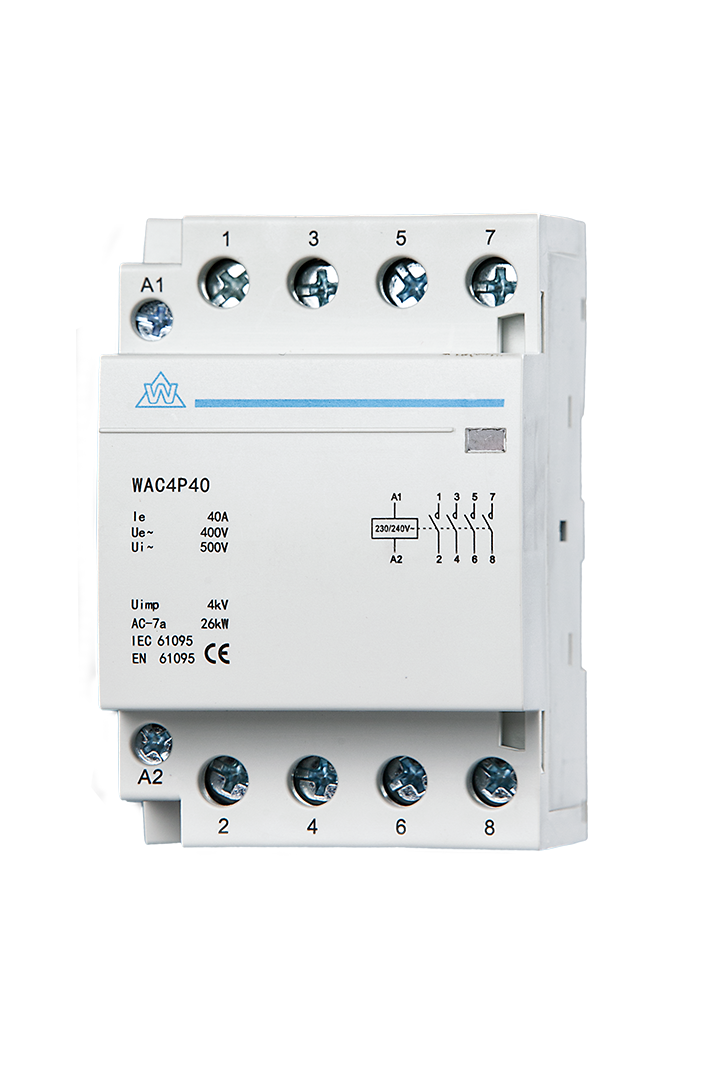

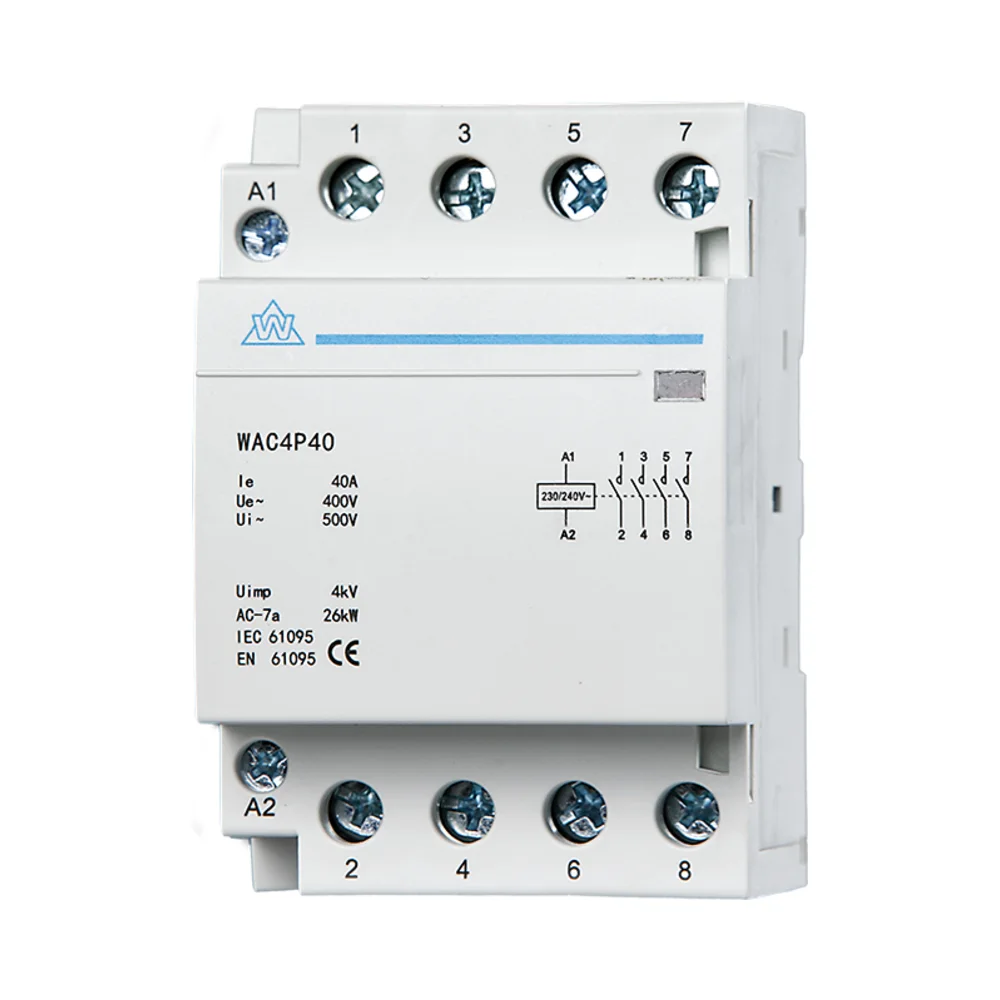

4 Pole 230/400V 40A Normally Open AC Modular Contactor
The WCED 4 Pole 230/400V 40A Normally Open AC Modular Contactor is a versatile and reliable solution for managing electrical circuits in residential, commercial, and light industrial environments. Its compact design and silent operation make it ideal for controlling lighting systems, HVAC equipment, and other medium-capacity electrical loads.
Key Features of 4 Pole 230/400V 40A Normally Open AC Modular Contactor
- 40A Current Rating: Handles medium electrical loads with consistent and reliable performance.
- 4 Pole Configuration: Provides efficient control of multiple circuits simultaneously.
- Normally Open (NO): Ensures current flow only when activated, delivering precise circuit management.
- Rated Voltage: Operates at 230/400V AC @ 50Hz, suitable for diverse applications.
- Compact Modular Design: Seamlessly integrates into consumer units and enclosures, saving valuable space.
- Silent Operation: Operates without noise, making it perfect for noise-sensitive settings.
- Durable Build: Constructed with high-quality materials to ensure long-term reliability.
- Standards Compliance: Meets BS EN 61095 and BS EN 60947-4-1 for safe and efficient operation.
Technical Specifications
- Brand: WCED
- Poles: 4 Pole
- Current Rating: 40A
- Control Voltage: 230/400V AC
- Operation Type: Normally Open (NO)
- Degree of Protection: IP20, conforming to BS EN 60529
- Utilisation Categories: AC-7a (resistive loads) and AC-1 (slightly inductive loads)
- Ambient Temperature Range: -25 °C to +40 °C
- Mounting: 35 mm DIN rail compatible
- Recommended Torque: 2.0Nm for secure installation
- Compliance: Certified to BS EN 61095 and BS EN 60947-4-1
How It Works
The WCED 4 Pole 40A Modular Contactor functions using an electromagnetic coil to control electrical circuits:
- Default State: In the normally open (NO) configuration, the contacts remain open, preventing current flow.
- Activation: When the coil is energised, the electromagnetic field pulls the armature, closing the contacts to allow current flow.
- Deactivation: Once the coil is de-energised, the contacts return to their default open state, halting current flow.
Applications
- Residential: Suitable for managing lighting, heating systems, and small household automation setups.
- Commercial: Ideal for office lighting, HVAC systems, and other medium electrical loads.
- Light Industrial: Effective for controlling motors, pumps, and small machinery.
Why Choose This Contactor?
The WCED 4 Pole 230/400V 40A NO Modular Contactor combines precision, durability, and silent operation, making it an excellent choice for electricians and engineers. Its robust design and compliance with international safety standards ensure reliable performance across a wide range of applications.
