Description

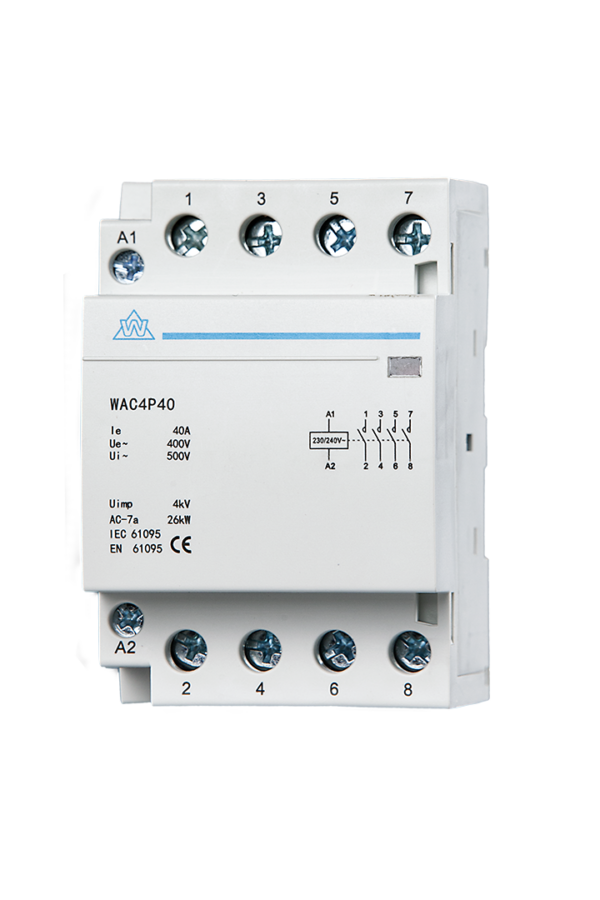

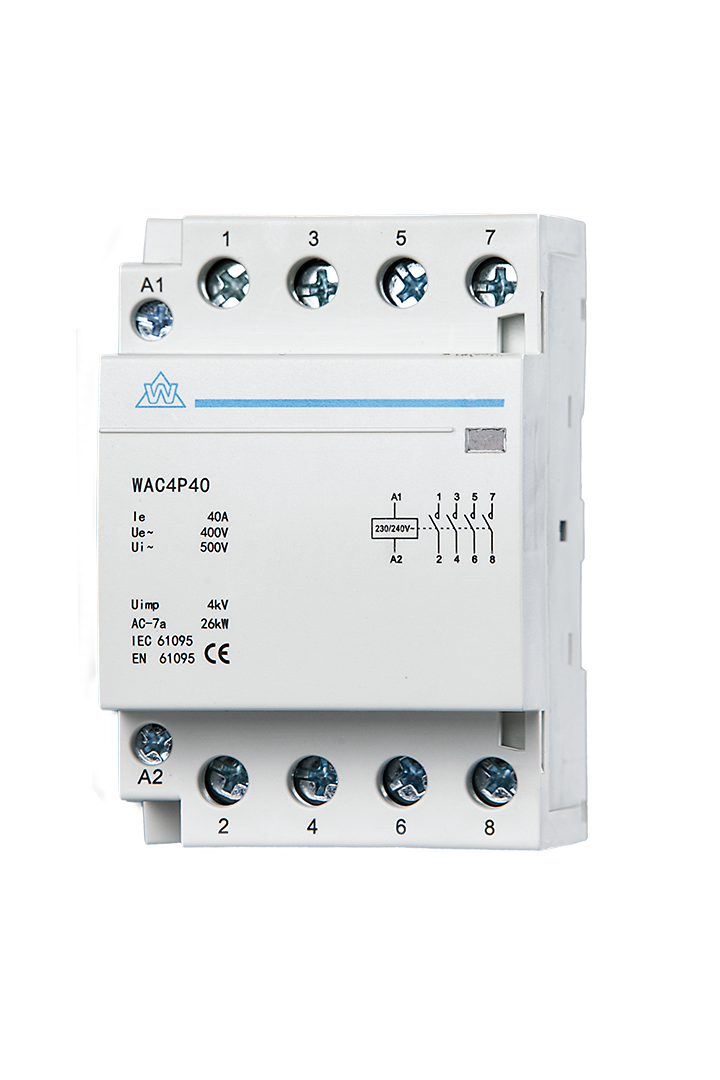

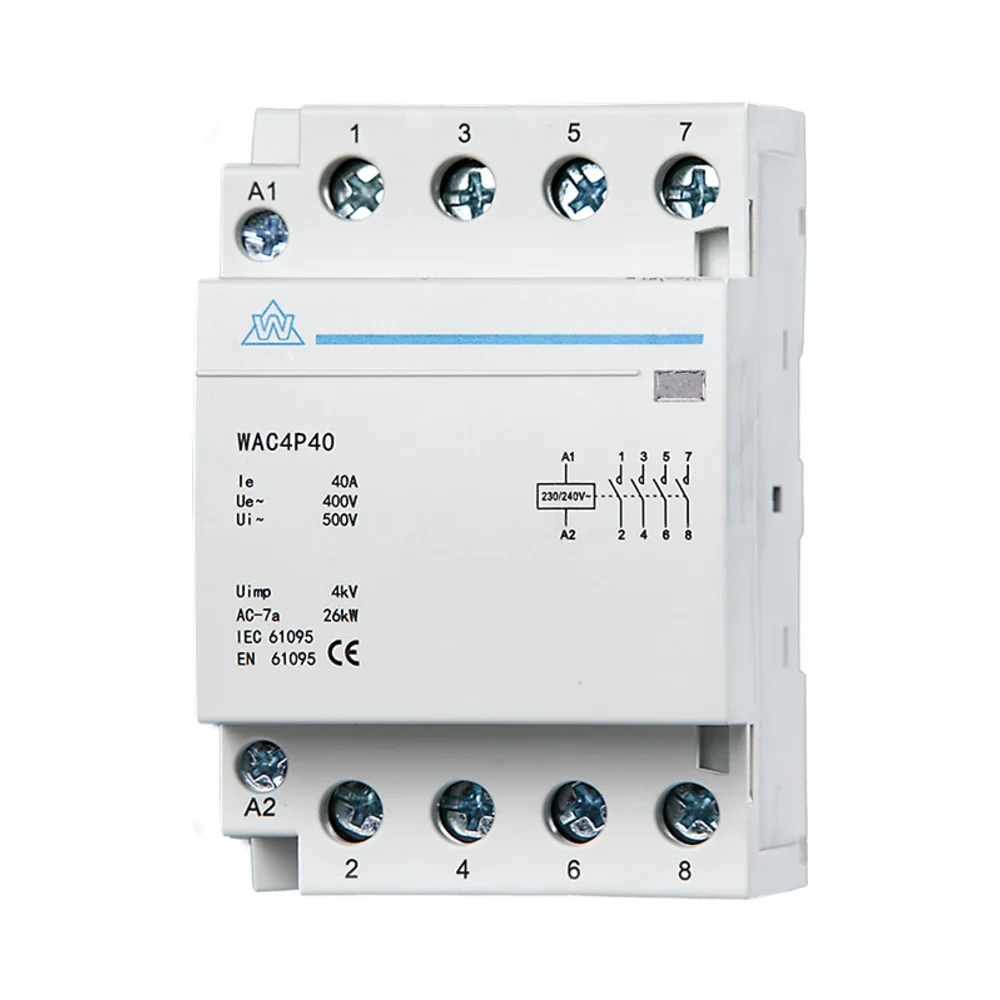

NO Normally Open AC Modular Contactor
4 Pole 125A 230V/400V
The WCED 4 Pole 125A 230V/400V Normally Open AC Modular Contactor is a robust and high-capacity solution for managing heavy electrical loads in residential, commercial, and industrial installations. Designed for precision and durability, this modular contactor ensures reliable operation in demanding environments, making it suitable for large lighting systems, HVAC equipment, and industrial machinery.
Key Features of 4 Pole 125A 230V/400V NO Normally Open AC Modular Contactor
- 125A Current Rating: Handles high-capacity electrical loads with ease.
- 4 Pole Configuration: Provides comprehensive control of multiple circuits.
- Normally Open (NO): Allows current flow only when activated, offering precise circuit management.
- Rated Voltage: Operational voltage range of 230V/400V AC @ 50Hz for flexibility in diverse setups.
- Compact Modular Design: Optimised for seamless integration into consumer units and enclosures.
- Silent Operation: Noise-free performance, ideal for noise-sensitive environments.
- Durable Build: High-quality construction for consistent performance under demanding conditions.
- Safety Compliance: Meets BS EN 61095 and BS EN 60947-4-1 standards for reliable operation.
Technical Specifications
- Brand: WCED
- Poles: 4 Pole
- Current Rating: 125A
- Control Voltage: 230V/400V AC
- Operation Type: Normally Open (NO)
- Degree of Protection: IP20, conforming to BS EN 60529
- Utilisation Categories: AC-7a (resistive loads) and AC-1 (slightly inductive loads)
- Ambient Temperature Range: -25 °C to +40 °C
- Mounting: 35 mm DIN rail compatible
- Recommended Torque: 2.0Nm for secure installation
- Compliance: Certified to BS EN 61095 and BS EN 60947-4-1
How It Works
The WCED 4 Pole 125A Modular Contactor operates via an electromagnetic coil to manage electrical circuits:
- Default State: In its normally open (NO) configuration, the contacts remain open, preventing current flow.
- Activation: When the control voltage energises the coil, the magnetic field pulls the armature, closing the contacts and allowing current flow.
- Deactivation: When the coil is de-energised, the contacts return to their open state, halting current flow.
Applications
- Residential: Suitable for managing high-capacity heating systems or large lighting loads.
- Commercial: Ideal for HVAC systems, retail lighting, and office equipment control.
- Industrial: Designed for heavy-duty machinery, motors, and pumps.
Why Choose This Contactor?
The WCED 4 Pole 125A 230V/400V NO Modular Contactor is engineered for high-performance applications, ensuring precision, durability, and silent operation. Its robust construction, combined with compliance to international safety standards, makes it a trusted choice for professionals managing demanding electrical systems.
