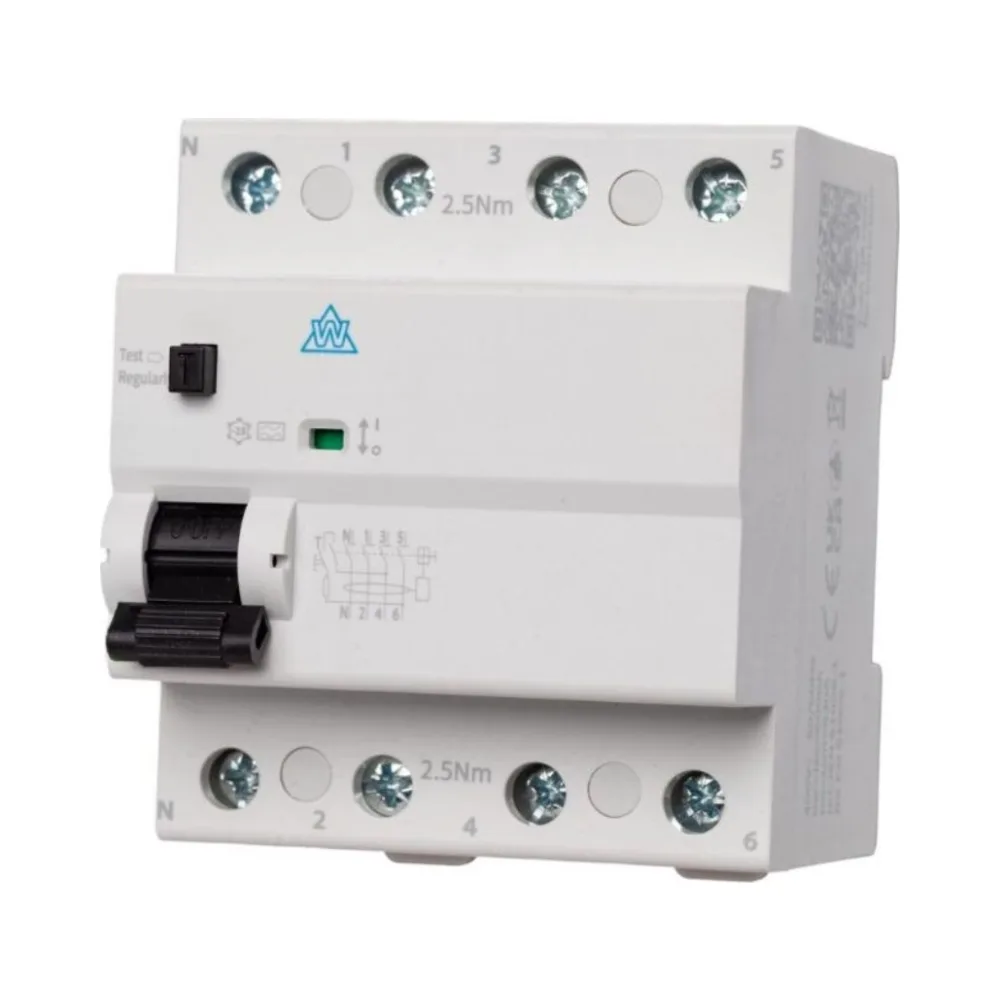

WCED ATDR4100-300 4 Pole 100A A Type Time Delay RCD
WCED 4 Pole 100A A Type Time Delay RCD 300mA Trip
The WCED ATDR4100-300 is a robust 4-pole, 100A Type A Time Delay RCD with 300mA trip sensitivity. Unlike 30mA devices designed for personal protection, this 300mA RCD is intended for fire protection and system-level discrimination in distribution networks.
Its time delay function ensures that in multi-RCD installations, only the correct upstream device trips, preventing nuisance disconnections. With 6kA short-circuit rating, IP20 ingress protection, and proven endurance, this unit is engineered for safe, reliable operation.
✨ Key Features – WCED ATDR4100-300
- 4-pole 100A Type A Time Delay RCD
- 300mA trip sensitivity – fire protection level
- Time delay function for selective tripping
- Detects residual AC and pulsating DC currents
- Rated conditional short-circuit current: 6kA
- Mechanical endurance: 4000 cycles | Electrical: 2000 cycles
- Conforms to BS EN 61008-1 and BS EN 60529
Technical Overview
- Part code: ATDR4100-300
- Poles: 4
- Rated current: 100A
- Trip sensitivity: 300mA (fire protection level)
- Type: Type A Time Delay RCD
- Rated operational voltage: 230/400V
- Conditional short-circuit rating: 6kA
- Degree of protection: IP20
- Operating temperature: -25°C to +40°C
- Approx. dimensions: 71.5 × 82 × 70 mm
✅ Why Choose This Product?
The WCED ATDR4100-300 offers selective tripping and 300mA fire protection. Its Type A characteristics cover both sinusoidal AC and pulsating DC leakage currents, making it a trusted solution for reliable system-level protection in distribution boards.
️ Guarantee & Compliance
WCED RCDs comply with BS EN 61008-1 and BS EN 60529, ensuring safety, durability, and professional-grade performance.
